CS-2511 T - Echo Chainsaw (SN: C70215001001 - C70215999999) Recoil Starter Parts Diagram

Chainsaw

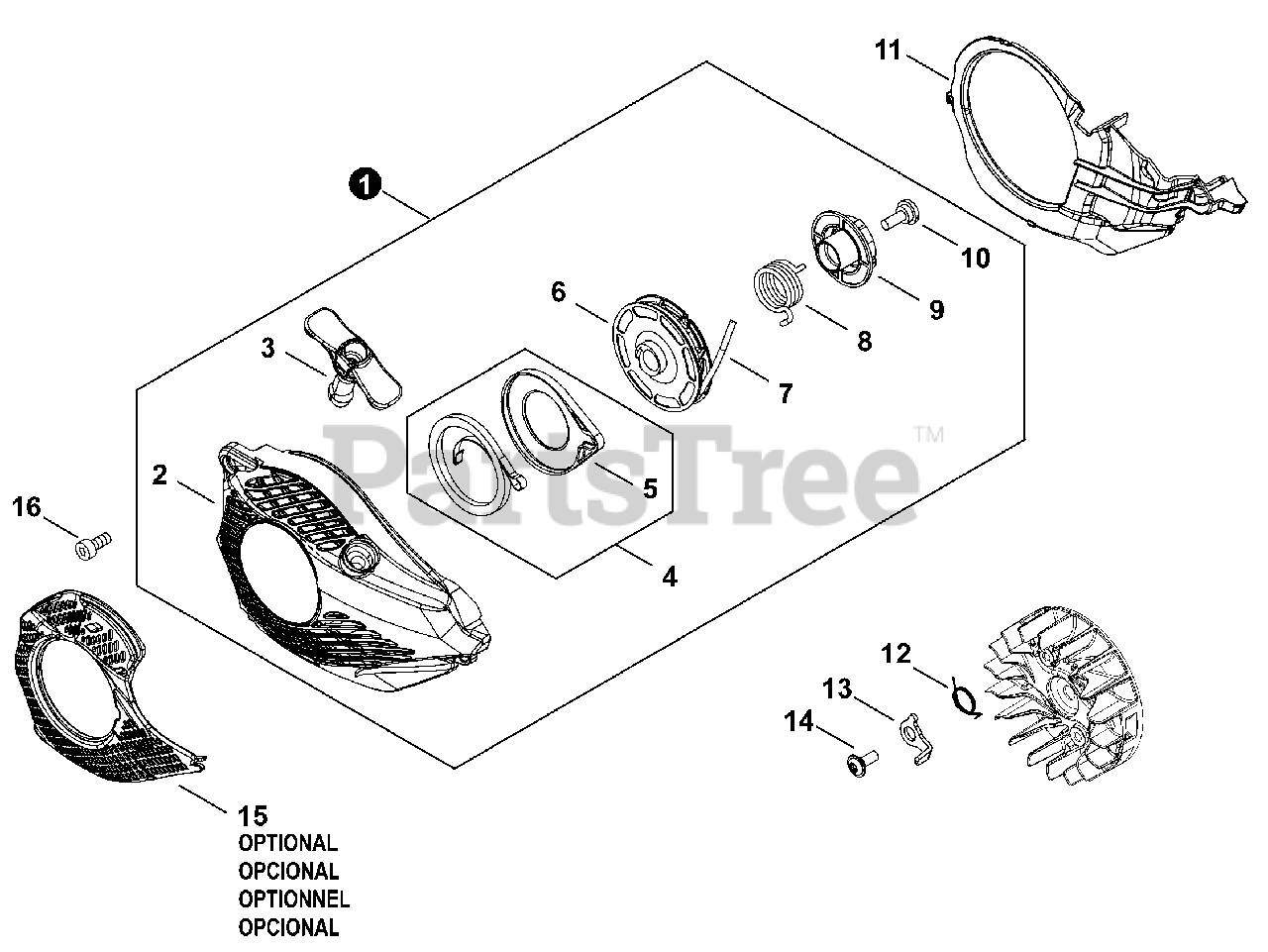

Recoil Starter Parts Diagram

  • Title

1

Echo A051003132

STARTER ASSY

Note: Includes Items 2-10

$82.99

$

Usually ships in 2-4 days

0

2

Echo P022045300

CASE ASSY, STARTER
(Superseded to P022051080)

$26.99

$

Usually ships in 2-4 days

0

3

Echo P022048980

GRIP, STARTER

$8.49

$

Usually ships in 2-4 days

0

4

Echo P022040060

SPRING KIT, REWIND

Note: Includes Item 5

$18.99

$

In Stock, only 2 left!

0

5

Echo P022040070

SPRING CASE

$6.49

$

Usually ships in 2-4 days

0

6

Echo P022040050

DRUM

$7.99

$

In Stock, only 2 left!

0

7

Echo P022040090

ROPE, STARTER 3×700

$5.49

$

Usually ships in 2-4 days

0

8

Echo P022036670

SPRING, RETURN

$4.99

$

In Stock, Qty 7

0

9

Echo P022040080

PLATE, CAM

$11.99

$

In Stock, Qty 13

0

10

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 20+

0

11

Echo A172003200

COVER, FAN

$18.99

$

Usually ships in 2-4 days

0

12

Echo V452000030

SPRING, TORSION

$4.99

$

In Stock, only 2 left!

0

13

Echo A514000300

PAWL

$3.49

$

In Stock, only 2 left!

0

14

Echo V203002250

BOLT 5

$0.99

$

In Stock, Qty 10

0

15

Echo A127000480

SHIELD, DEBRIS

$4.49

$

In Stock, only 1 left!

0

16

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0
