CS-2511 T - Echo Chainsaw (SN: C71915001001 - C71915999999) Fuel System Parts Diagram

Chainsaw

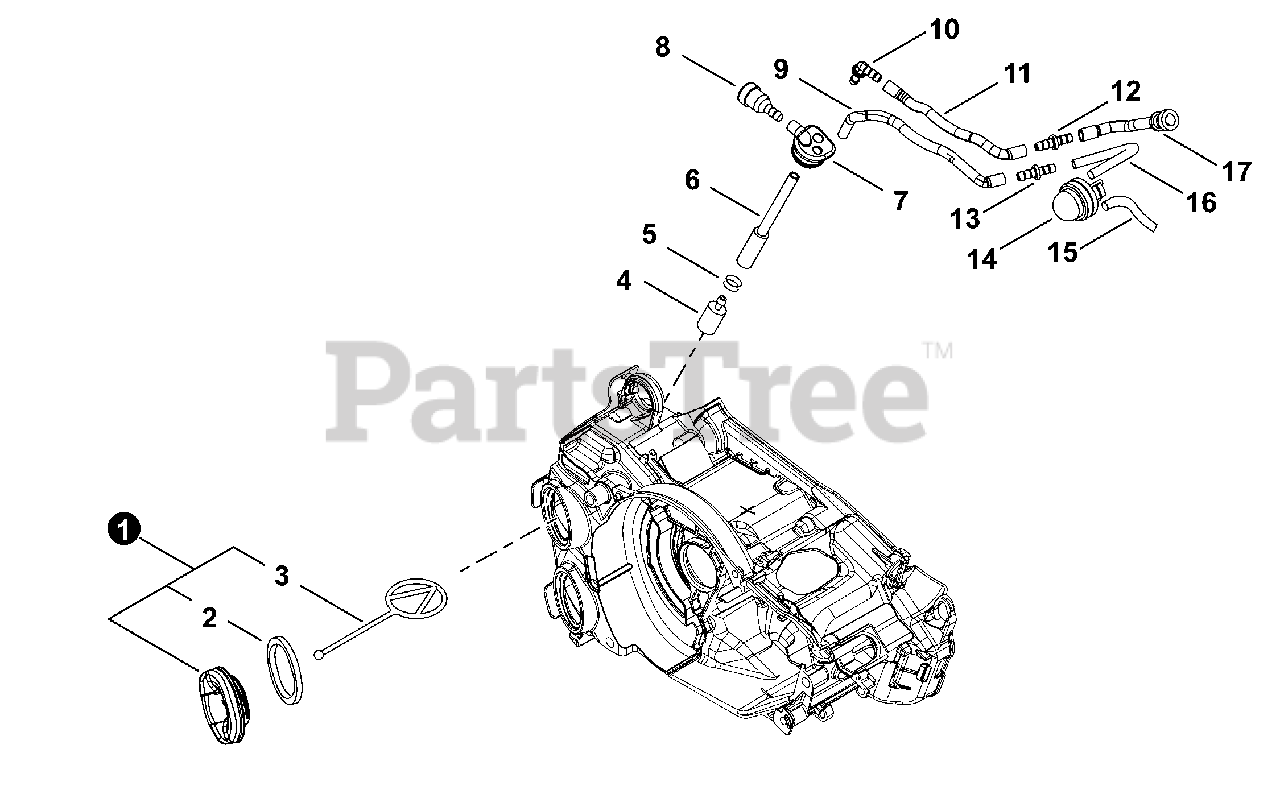

Fuel System Parts Diagram

  • Title

1

Echo A033000410

CAP ASSY, FUEL

Note: Includes Items 2-3

$12.99

$

In Stock, Qty 11

0

2

Echo V107000180

GASKET, CAP

$2.99

$

In Stock, only 2 left!

0

3

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, only 3 left!

0

4

Echo A369000470

FILTER, FUEL

$9.99

$

In Stock, Qty 20+

0

5

Echo V490000500

CLIP Ø6

$1.49

$

In Stock, Qty 20+

0

6

Echo V470002210

PIPE, FUEL

$2.99

$

In Stock, only 2 left!

0

7

Echo V137000140

GROMMET, FUEL

$7.49

$

In Stock, only 2 left!

0

8

Echo 13130056431

VENT ASSY

$8.99

$

In Stock, Qty 20+

0

9

Echo V471003660

PIPE, FUEL 3×5×115

$1.99

$

In Stock, Qty 8

0

10

Echo V186000530

CONNECTOR, PIPE

$1.99

$

In Stock, only 4 left!

0

11

Echo V471005230

PIPE, FUEL
(Superseded to V471005231)

$4.49

$

In Stock, only 1 left!

0

12

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 20+

0

13

Echo V186000020

CONNECTOR, PIPE
(Superseded to V186000510)

$1.99

$

In Stock, Qty 20+

0

14

Echo A035000040

BULB, PURGE

$18.99

$

In Stock, Qty 8

0

15

Echo V470002180

PIPE, FUEL
(Superseded to V470002181)

$6.49

$

In Stock, only 2 left!

0

16

Echo V471004870

PIPE, FUEL 3×5×58L
(Superseded to V471004871)

$1.49

$

In Stock, only 4 left!

0

17

Echo V470002270

PIPE, FUEL
(Superseded to V470002271)

$3.99

$

In Stock, only 2 left!

0
