CS-271 T - Echo Chainsaw (SN: C26411001001 - C26411999999) Chain Brake S/N: C26411001501 - C26411999999 Parts Diagram

Chainsaw

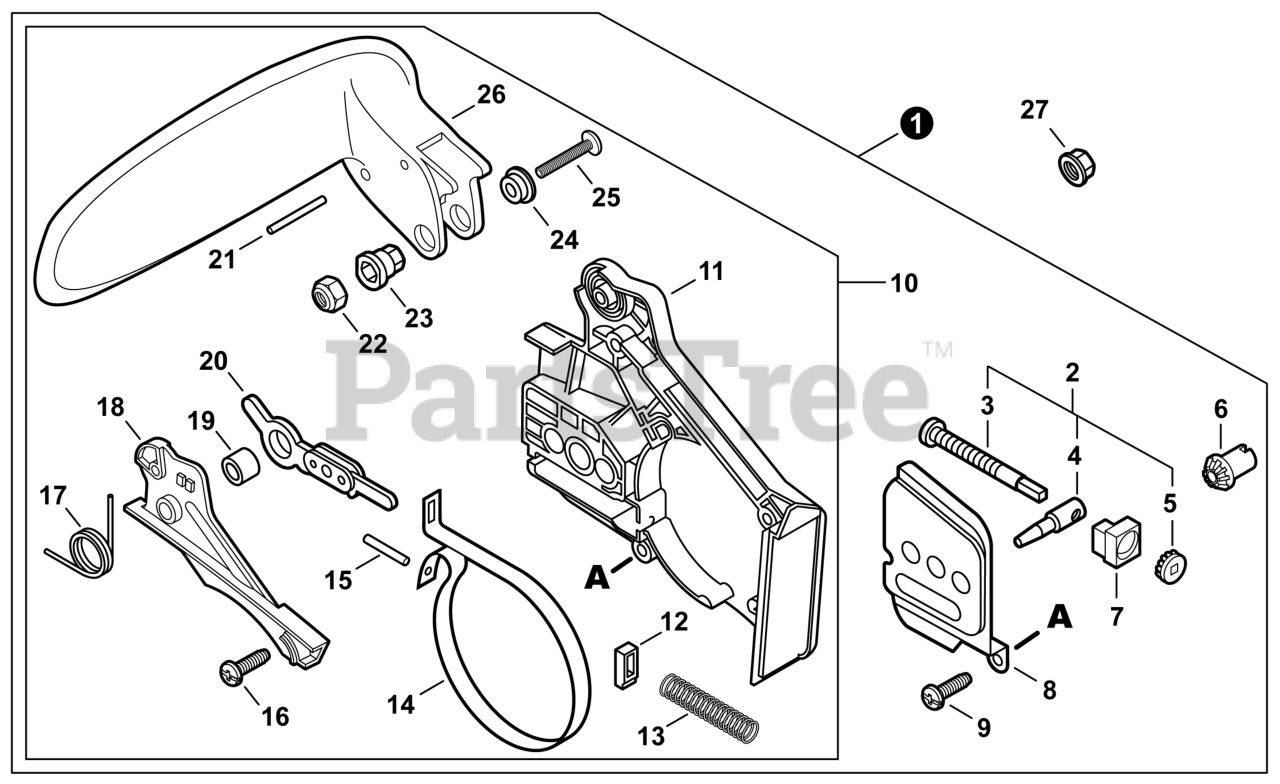

Chain Brake S/N: C26411001501 - C26411999999 Parts Diagram

  • Title

1

Echo P021048911

BRAKE ASSY, CHAIN

Note: Includes ITEMS 2-26

$132.99

$

In Stock, only 2 left!

0

2

Echo P021000063

TENSIONER SET, CHAIN

Note: Includes ITEMS 3-5

$24.99

$

In Stock, only 2 left!

0

3

Echo V203000021

SCREW, CHAIN TENSION

$6.99

$

In Stock, Qty 6

0

4

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

5

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

6

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

7

Echo V355000800

COLLAR 8

$1.99

$

In Stock, Qty 20+

0

8

Echo C305000031

PLATE, GUIDE - OUTER

$19.99

$

In Stock, only 2 left!

0

9

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, Qty 10

0

10

Echo P021038182

BRAKE ASSY, CHAIN
(Superseded to P021048911)

Note: Includes ITEMS 11-26

$132.99

$

In Stock, only 2 left!

0

11

Echo C300000173

GUARD, SPROCKET

$17.99

$

In Stock, only 2 left!

0

12

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

13

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, only 4 left!

0

14

Echo C328000020

BAND, BRAKE

$8.49

$

In Stock, only 2 left!

0

15

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, Qty 10

0

17

Echo V452000110

SPRING, TORSION

$1.49

$

In Stock, Qty 6

0

18

Echo C345000114

COVER, BRAKE

$9.99

$

In Stock, only 2 left!

0

19

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 2 left!

0

20

Echo C334000060

CONNECTOR, BRAKE

$14.99

$

In Stock, only 2 left!

0

21

Echo 90033030260

PIN 3×26

$0.99

$

In Stock, Qty 20+

0

22

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 8

0

23

Echo V353000060

COLLAR 5

$2.49

$

In Stock, only 2 left!

0

24

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, only 4 left!

0

25

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, only 1 left!

0

26

Echo C320000034

BRAKE, CHAIN

$50.99

$

Usually ships in 2-4 days

0

27

Echo V265000200

NUT, FLANGE M8×1.25

$2.49

$

In Stock, Qty 20+

0
