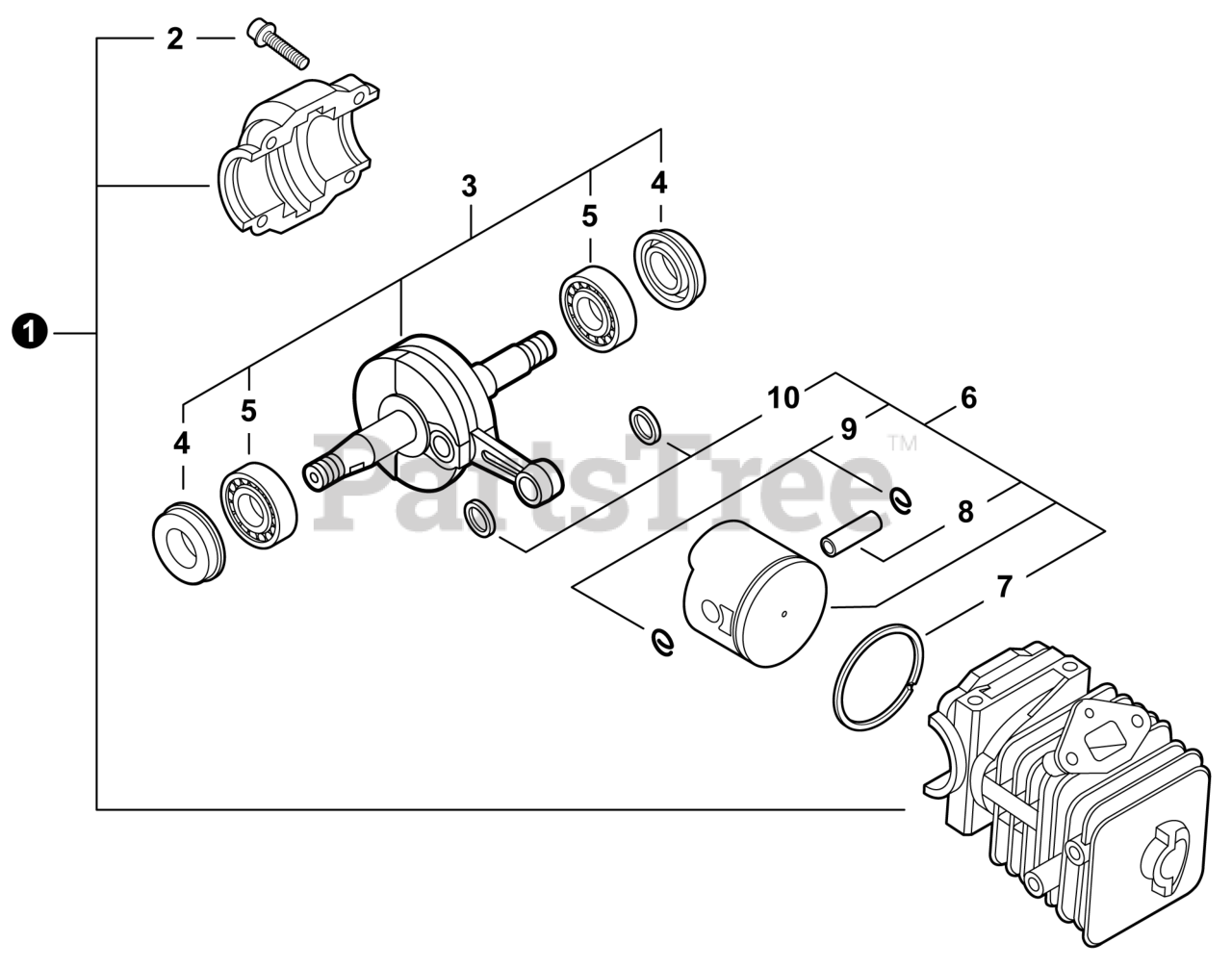

CS-271 T - Echo Chainsaw (SN: C26411001001 - C26411999999) Engine Parts Diagram

Chainsaw

Engine Parts Diagram

  • Title

1

Echo P021044050

CYLINDER KIT

Note: Includes ITEM 2

$121.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

3

Echo P021038072

CRANKSHAFT ASSY

Note: Includes ITEMS 4-5

$197.99

$

Usually ships in 2-4 days

0

4

Echo V505000001

SEAL, OIL

$13.99

$

Usually ships in 2-4 days

0

5

Echo 90080036001

BEARING, BALL 6001

$10.99

$

In Stock, only 4 left!

0

6

Echo P021044060

PISTON KIT

Note: Includes ITEMS 7-10

$79.99

$

Usually ships in 2-4 days

0

7

Echo A101000630

RING, PISTON

$14.99

$

Usually ships in 2-4 days

0

8

Echo 10001322330

PIN, PISTON

$5.99

$

Usually ships in 2-4 days

0

9

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

10

Echo 10001411520

WASHER, THRUST

$3.99

$

In Stock, Qty 9

0
