CS-271 T - Echo Chainsaw (SN: C26513001001 - C26513999999) Chain Brake S/N: C26513001001 - C26513001100 Parts Diagram

Chainsaw

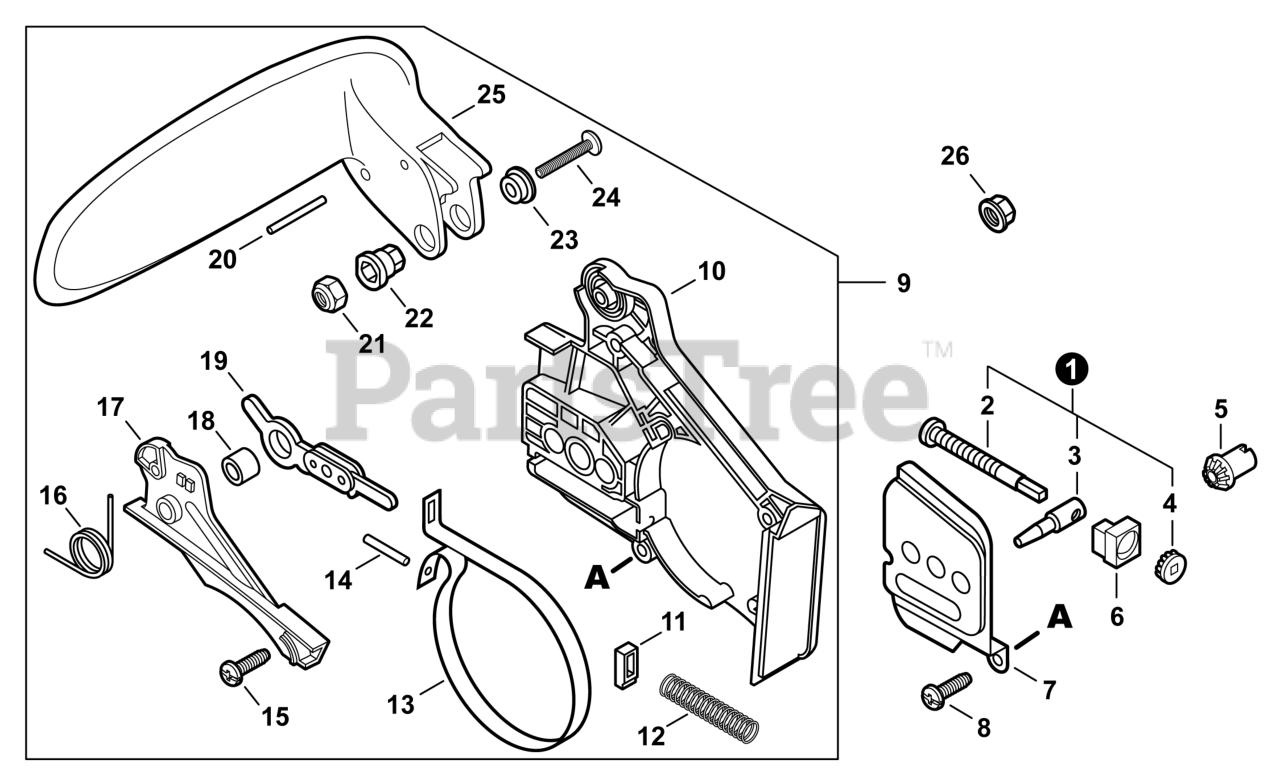

Chain Brake S/N: C26513001001 - C26513001100 Parts Diagram

  • Title

1

Echo P021000063

TENSIONER SET, CHAIN

Note: Includes ITEMS 2-4

$20.99

$

In Stock, Qty 6

0

2

Echo V203000021

SCREW, CHAIN TENSION

$5.99

$

In Stock, only 2 left!

0

3

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

4

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

5

Echo V651000001

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

6

Echo V355000800

COLLAR 8

$1.49

$

In Stock, Qty 20+

0

7

Echo C305000031

PLATE, GUIDE - OUTER

$16.99

$

In Stock, Qty 8

0

8

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

9

Echo P021038181

BRAKE ASSY, CHAIN
(Superseded to P021048910)

Note: Includes ITEMS 10-25

$110.99

$

In Stock, Qty 6

0

10

Echo C300000173

GUARD, SPROCKET

$14.99

$

Usually ships in 2-4 days

0

11

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 15

0

12

Echo V450000070

SPRING, COMPRESSION

$2.49

$

In Stock, Qty 16

0

13

Echo C328000020

BAND, BRAKE

$6.99

$

Usually ships in 2-4 days

0

14

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, Qty 20+

0

16

Echo V452000110

SPRING, TORSION

$0.99

$

Usually ships in 2-4 days

0

17

Echo C345000114

COVER, BRAKE

$8.49

$

Usually ships in 2-4 days

0

18

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, Qty 11

0

19

Echo C334000060

CONNECTOR, BRAKE

$11.99

$

Usually ships in 2-4 days

0

20

Echo 90033030260

PIN 3×26

$0.99

$

In Stock, Qty 20+

0

21

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

22

Echo V353000060

COLLAR 5

$2.49

$

In Stock, Qty 8

0

23

Echo 43316739130

COLLAR 5.3×10×13×L5

$2.99

$

In Stock, Qty 20+

0

24

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, Qty 20+

0

25

Echo C320000034

BRAKE, CHAIN

$41.99

$

Usually ships in 2-4 days

0

26

Echo V265000200

NUT, FLANGE M8×1.25

$1.99

$

In Stock, Qty 20+

0
