Echo CS-271 T - Echo Chainsaw (SN: C67115001001 - C67115999999) Chain Brake Parts Lookup with Diagrams

1

Echo P021056000

BRAKE ASSY, CHAIN

Note: Includes Items 2-25

$75.99

$

Usually ships in 2-4 days

2

Echo P021000063

TENSIONER KIT, CHAIN

Note: Includes Items 3-5+

$24.99

$

In Stock, only 1 left!

3

Echo V203000021

SCREW, CHAIN TENSION

Note: ++

$6.99

$

In Stock, Qty 20+

4

Echo C309000030

TENSIONER, CHAIN

Note: ++

$5.49

$

In Stock, Qty 20+

5

Echo V651000011

GEAR, BEVEL

Note: ++

$9.49

$

In Stock, Qty 20+

6

Echo V651000001

GEAR, BEVEL

Note: +

$9.49

$

In Stock, Qty 20+

7

Echo V355000800

COLLAR 8

Note: +

$1.99

$

In Stock, Qty 20+

8

Echo C305000031

PLATE, GUIDE - OUTER

Note: +

$19.99

$

In Stock, only 2 left!

9

Echo 90025304012

SCREW 4x12

Note: +

$1.49

$

In Stock, only 2 left!

10

Echo C300000173

GUARD, SPROCKET

Note: +

$17.99

$

In Stock, only 3 left!

11

Echo V376000450

GUIDE

Note: +

$0.99

$

In Stock, Qty 17

12

Echo V450000070

SPRING, COMPRESSION

Note: +

$2.99

$

In Stock, Qty 20+

13

Echo C328000020

BAND, BRAKE

Note: +

$8.49

$

In Stock, Qty 5

14

Echo 9305030098

PIN, SPRING 3x9.8

Note: +

$0.99

$

In Stock, Qty 20+

15

Echo 90025304012

SCREW 4x12

Note: +

$1.49

$

In Stock, only 2 left!

16

Echo V452000110

SPRING, TORSION

Note: +

$1.49

$

In Stock, Qty 5

17

Echo C345000114

COVER, BRAKE

Note: +

$9.99

$

In Stock, only 2 left!

18

Echo 43311635430

SPACER 8x12x9

Note: +

$6.49

$

In Stock, Qty 15

19

Echo C334000060

CONNECTOR, BRAKE

Note: +

$14.99

$

In Stock, only 3 left!

20

Echo 90033030260

PIN 3x26

Note: +

$0.99

$

In Stock, Qty 20+

21

Echo 90056250005

NUT, LOCK M5

Note: +

$1.49

$

In Stock, Qty 20+

22

Echo V353000060

COLLAR 5

Note: +

$2.49

$

In Stock, Qty 9

23

Echo 43316739130

COLLAR 5.3x10x13xL5

Note: +

$3.49

$

In Stock, Qty 20+

24

Echo 9131805032

SCREW 5x32

Note: +

$0.99

$

In Stock, Qty 15

25

Echo C320000670

BRAKE, CHAIN

Note: +

$50.99

$

Usually ships in 2-4 days

26

Echo C304000070

SPIKE, BUMPER

$109.99

$

Usually ships in 2-4 days

27

Echo V265000200

NUT, FLANGE M8x1.25

$2.49

$

In Stock, Qty 20+

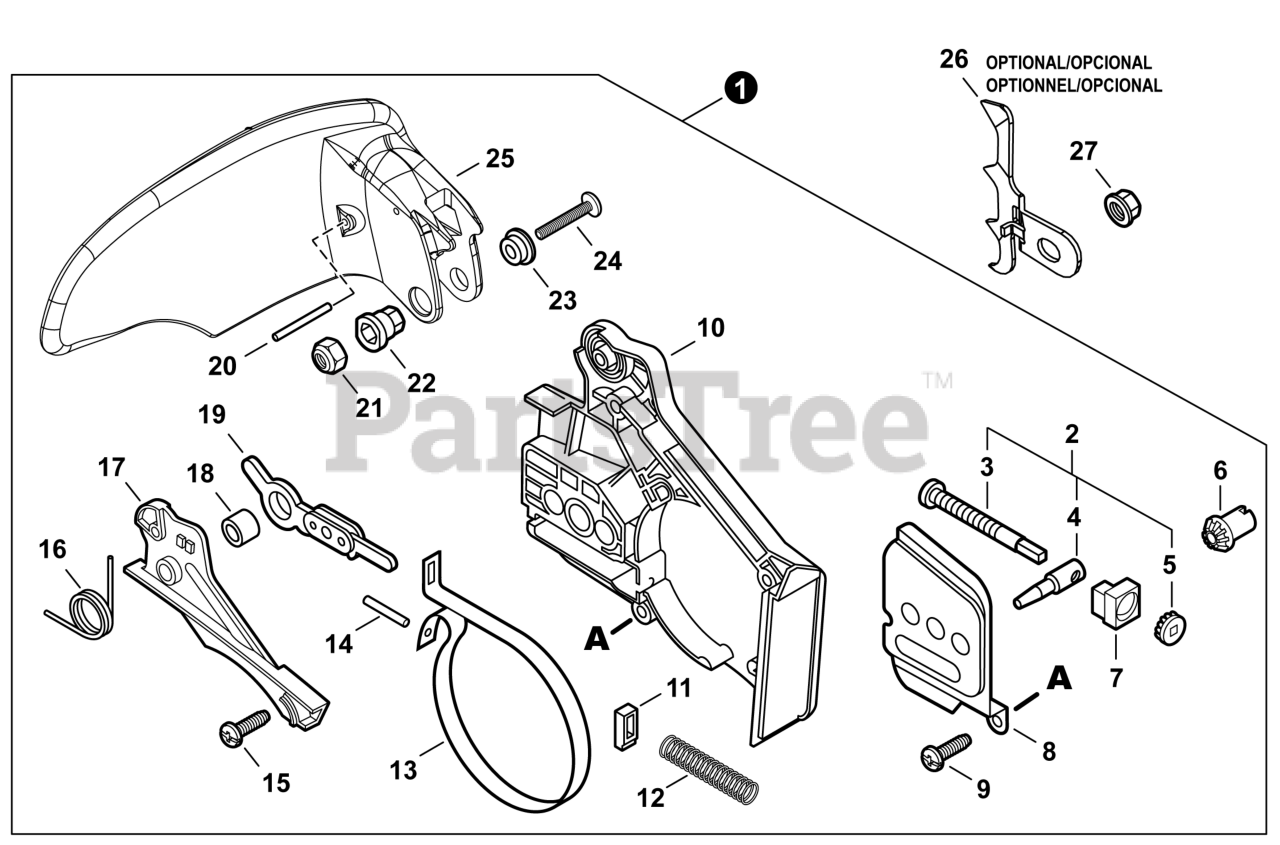

CS-271 T - Echo Chainsaw (SN: C67115001001 - C67115999999) Chain Brake Parts Diagram

Chain Brake Parts Diagram

Echo P021056000

Echo P021000063

Echo V203000021

Echo C309000030

Echo V651000011

Echo V651000001

Echo V355000800

Echo C305000031

Echo 90025304012

Echo C300000173

Echo V376000450

Echo V450000070

Echo C328000020

Echo 9305030098

Echo 90025304012

Echo V452000110

Echo C345000114

Echo 43311635430

Echo C334000060

Echo 90033030260

Echo 90056250005

Echo V353000060

Echo 43316739130

Echo 9131805032

Echo C320000670

Echo C304000070

Echo V265000200
