CS-271 T - Echo Chainsaw (SN: C67115001001 - C67115999999) Fuel System Parts Diagram

Chainsaw

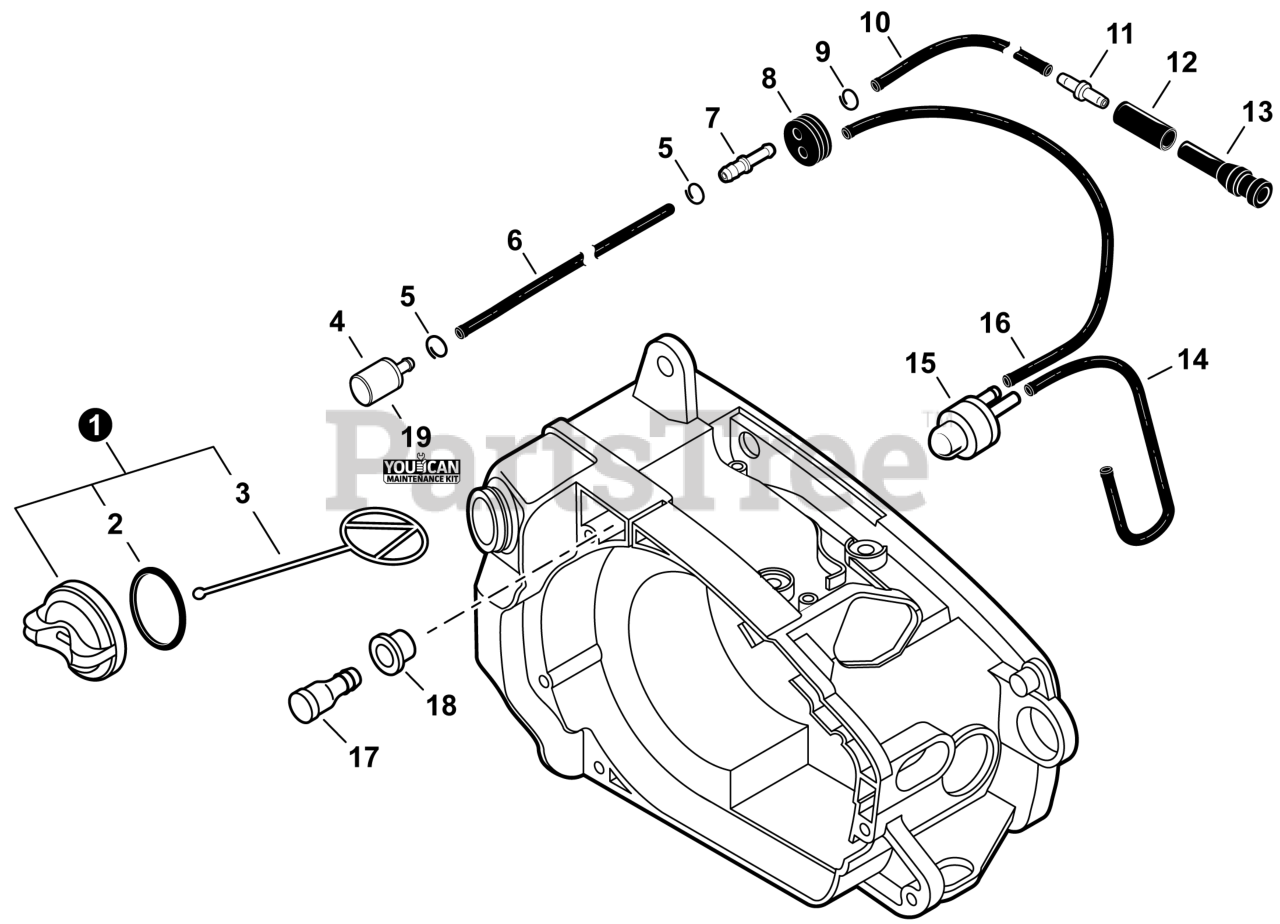

Fuel System Parts Diagram

  • Title

1

Echo P021038080

CAP ASSY, FUEL - ORANGE

Note: Includes Items 2-3

$7.49

$

In Stock, Qty 8

0

2

Echo V581000590

O-RING

Note:

$1.49

$

In Stock, Qty 19

0

3

Echo A365000050

CONNECTOR, CAP L= 60 MM

Note:

$2.49

$

In Stock, Qty 20+

0

4

Echo A369000470

FILTER, FUEL

$9.99

$

In Stock, Qty 20+

0

5

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

6

Echo V471003811

PIPE 3x5x75

$

$

Currently unavailable

7

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo 13211544331

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

9

Echo V490001271

CLIP 5

$0.99

$

In Stock, only 2 left!

0

10

Echo V471003801

PIPE 3x5x145

$21.99

$

Usually ships in 2-4 days

0

11

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 20+

0

12

Echo V475007371

TUBE 6.5x8.5x18

$2.49

$

Usually ships in 2-4 days

0

13

Echo V470001942

PIPE, FUEL 10x6x32

$3.49

$

In Stock, only 2 left!

0

14

Echo V471001262

PIPE, FUEL 2.4x5x153 BLACK

$3.99

$

Usually ships in 2-4 days

0

15

Echo 12318139130

BULB, PURGE

$8.49

$

In Stock, Qty 20+

0

16

Echo V471001252

PIPE 2.4x5x258

$5.49

$

Usually ships in 2-4 days

0

17

Echo 13130056431

VENT ASSY

$8.99

$

In Stock, Qty 20+

0

18

Echo V137000001

GROMMET, FUEL

$1.99

$

In Stock, Qty 20+

0

19

Echo 90178Y

TUNE-UP KIT - YOUCAN™

$27.99

$

In Stock, only 1 left!

0
