CS-280 E - Echo Chainsaw (SN: 0055490 - 0106530) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

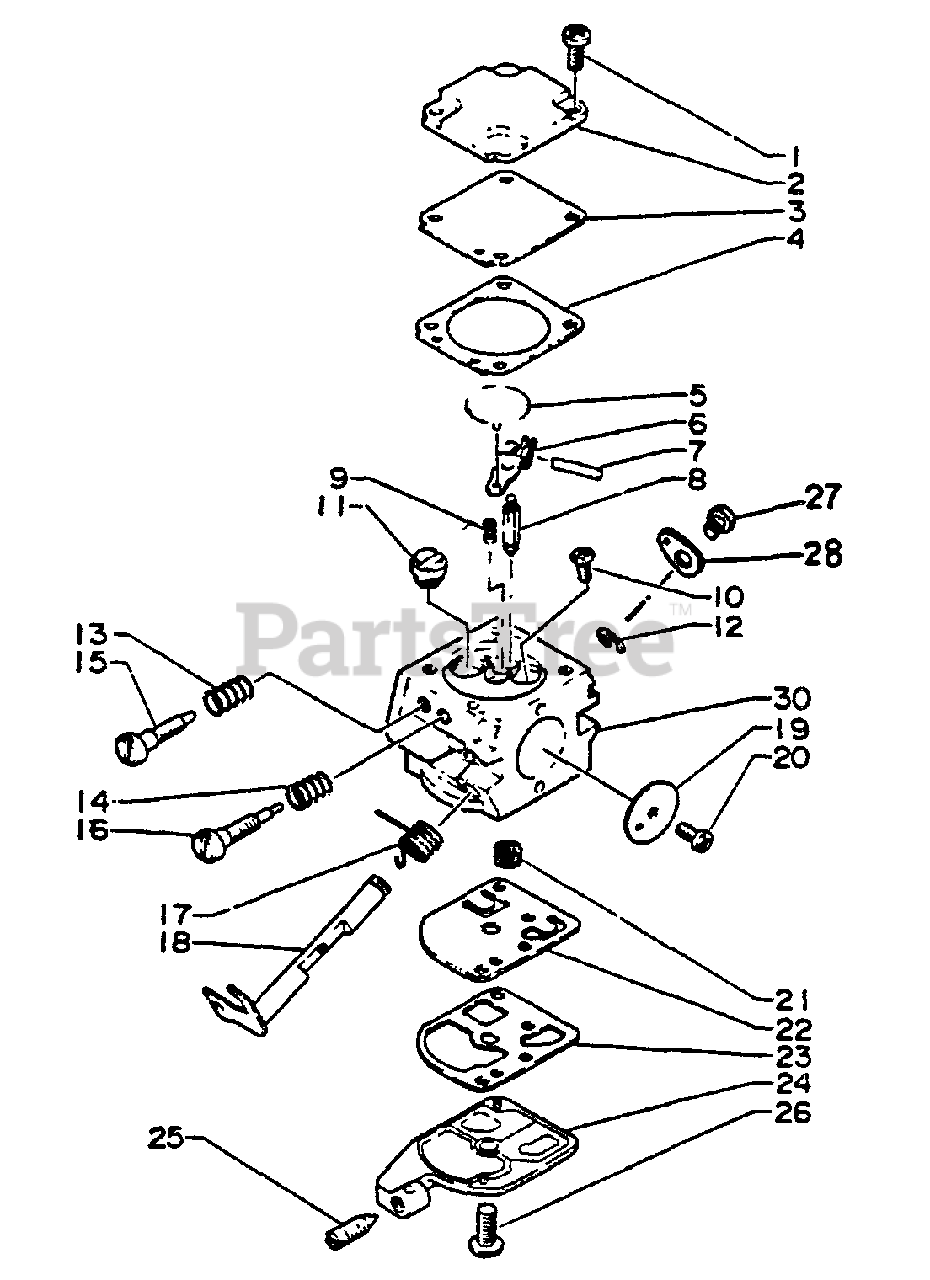

  • Title

Echo 12520013930

CARBURETOR
(Superseded to 12520013932)

Note: Includes ITEMS 1-28

$

$

Not available

1

Echo 12534413930

SCREW
(Superseded to 12534413931)

$2.99

$

In Stock, Qty 12

0

2

Echo 12534213930

COVER, DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

3

DIAPHRAGM

Note: Included in Repair Kit P/N 12530015130 & Gasket, Diaphragm Kit P/N 12530115131

$

$

Not available

4

GASKET, METERING

Note: Included in Repair Kit P/N 12530015130 & Gasket, Diaphragm Kit P/N 12530115131

$

$

Not available

5

Echo 12537513930

DISK
(Superseded to Discontinued)

$

$

Not available

6

LEVER, METERING

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

7

PIN, METERING LEVER

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

------------------

VALVE, INLET NEEDLE

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

9

SPRING, METERING LEVER

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

10

Echo 12533913930

SCREW

$1.99

$

In Stock, only 4 left!

0

------------------

JET, MAIN

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

12

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

13

Echo 12531913930

SPRING

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531913930

SPRING

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12532013930

NEEDLE, HIGH SPEED

$4.99

$

In Stock, only 1 left!

0

16

Echo 12531813930

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 12531313930

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12531713930

SHAFT, THROTTLE
(Superseded to 12531713931)

$

$

Not available

19

Echo 12531613930

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

20

SCREW

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

21

STRAINER

Note: Included in Repair Kit P/N 12530015130

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: Included in Repair Kit P/N 12530015130 & Gasket, Diaphragm Kit P/N 12530115131

$

$

Not available

------------------

GASKET, PUMP

Note: Included in Repair Kit P/N 12530015130 & Gasket, Diaphragm Kit P/N 12530115131

$

$

Not available

24

Echo 12532413930

BASE, PUMP
(Superseded to Discontinued)

$

$

Not available

25

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

26

Echo 12531013930

SCREW

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

28

Echo 12535013930

LEVER, THROTTLE
(Superseded to 12535013931)

$3.99

$

Usually ships in 2-4 days

0

30

UNKNOWN

$

$

Not available

Echo 12530015130

REBUILD KIT

Note: Includes items 3,4,6,7,8,9,20,21,22 & 23

$15.99

$

In Stock, only 2 left!

0

Echo 12535013930

LEVER, THROTTLE
(Superseded to 12535013931)

Note: Includes items 3,4,22 & 23

$3.99

$

Usually ships in 2-4 days

0
