CS-300 - Echo Chainsaw (SN: 03001001 - 03999999) Carburetor -- WT-589A Parts Diagram

Chainsaw

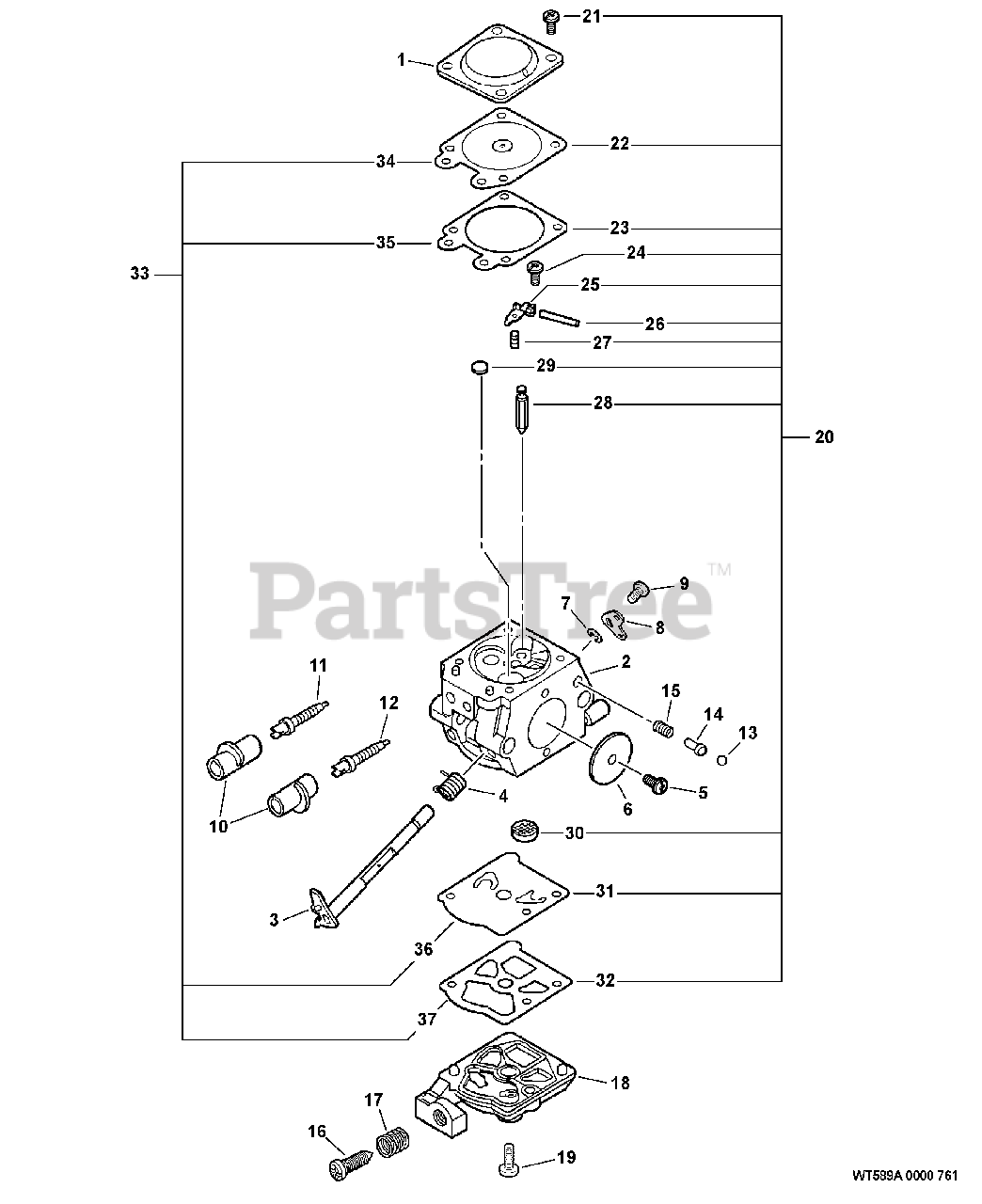

Carburetor -- WT-589A Parts Diagram

  • Title

Echo A021000761

CARBURETOR - WT-589A
(Superseded to A021000231)

$88.99

$

In Stock, Qty 7

0

1

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 1 left!

0

2

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

3

Echo 12311739530

SHAFT, THROTTLE

$10.99

$

Usually ships in 2-4 days

0

4

Echo 12311347530

SPRING, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

5

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

6

Echo 12311605230

VALVE, THROTTLE

$2.49

$

In Stock, only 4 left!

0

7

Echo 12312715030

E-RING

$0.99

$

In Stock, Qty 5

0

8

Echo 12315039230

LEVER, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

9

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

10

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

11

Echo 12312043131

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

12

Echo 12311839231

NEEDLE, MIXTURE
(Superseded to Discontinued)

$

$

Not available

13

Echo 12313609660

BALL

$0.99

$

Usually ships in 2-4 days

0

14

Echo 12318509660

PISTON ASSY

$6.99

$

Usually ships in 2-4 days

0

15

Echo 12318609660

SPRING, START VALVE

$0.99

$

Usually ships in 2-4 days

0

16

Echo 12313419730

SCREW, IDLE ADJUST

$2.99

$

In Stock, only 3 left!

0

17

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

18

Echo 12312409320

COVER, FUEL PUMP

$6.49

$

Usually ships in 2-4 days

0

19

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12310037330

REPAIR KIT, CARBURETOR

Note: INCLUDES ITEMS 21-32

$

$

Not available

21

Echo 12313002960

SCREW

$1.99

$

In Stock, only 1 left!

0

22

DIAPHRAGM, METERING

$

$

Not available

23

GASKET, DIAPHRAGM

$

$

Not available

24

SCREW, METERING LEVER PIN

$

$

Not available

25

LEVER, METERING

$

$

Not available

26

PIN, METERING LEVER

$

$

Not available

27

SPRING, METERING LEVER

$

$

Not available

28

VALVE, INLET NEEDLE

$

$

Not available

29

PLUG, WELCH

$

$

Not available

30

STRAINER

$

$

Not available

31

DIAPHRAGM, PUMP

$

$

Not available

32

GASKET, PUMP

$

$

Not available

33

Echo 12310105960

GASKET / DIAPHRAGM KIT

Note: INCLUDES ITEMS 34-37

$

$

Not available

34

DIAPHRAGM, METERING

$

$

Not available

35

GASKET, DIAPHRAGM

$

$

Not available

36

DIAPHRAGM, PUMP

$

$

Not available

37

GASKET, PUMP

$

$

Not available
