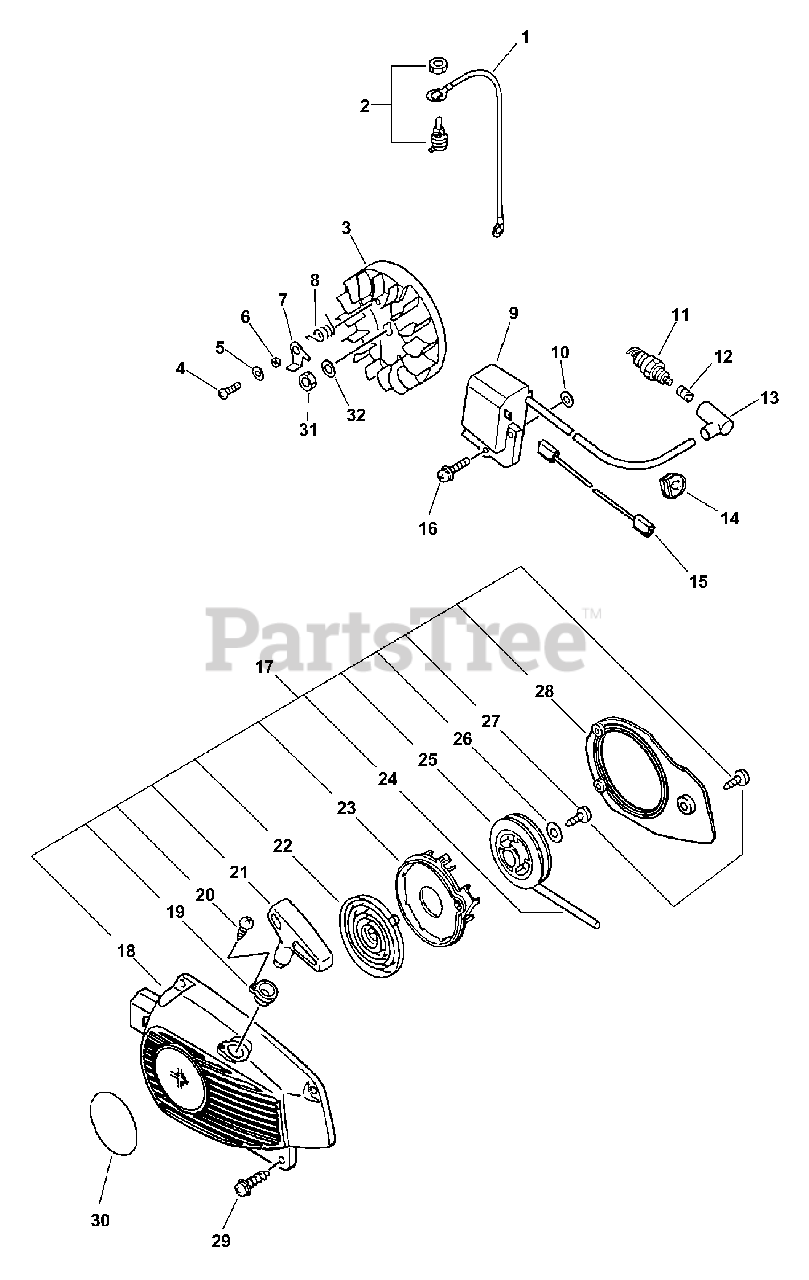

CS-300 - Echo Chainsaw (SN: 03001001 - 03999999) Ignition, Starter Assembly Parts Diagram

Chainsaw

Ignition, Starter Assembly Parts Diagram

  • Title

1

Echo 16201039131

LEAD - GROUND L= 100

$6.49

$

In Stock, Qty 7

0

2

Echo 16340019830

SWITCH, ON-OFF

$11.99

$

In Stock, only 2 left!

0

3

Echo 15680039233

FLYWHEEL

$73.99

$

Usually ships in 2-4 days

0

4

Echo 90021605012

SCREW 5×12

$0.99

$

In Stock, only 2 left!

0

5

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 4 left!

0

7

Echo A514000000

PAWL, STARTER
(Superseded to A514000001)

$3.99

$

In Stock, Qty 15

0

8

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 4 left!

0

9

Echo A411000150

COIL, IGNITION

$90.99

$

In Stock, only 2 left!

0

10

Echo 15011716430

WASHER 5.2×12×3

$3.49

$

In Stock, Qty 5

0

11

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

11

Echo A425000000

SPARK PLUG - BPMR8Y

Note: CANADA S/N: 04001001-04999999

$3.99

$

In Stock, Qty 20+

0

12

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

13

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

14

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

15

Echo 16201039431

LEAD - IGNITION L= 95

$3.49

$

In Stock, only 2 left!

0

16

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

17

Echo 17720039631

STARTER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 18-28

$

$

Not available

18

Echo 17723239630

CASE, STARTER

$35.99

$

In Stock, only 4 left!

0

19

Echo 17722739131

GUIDE, ROPE

$4.49

$

In Stock, only 2 left!

0

20

Echo 90029603014

SCREW 3×14

$0.99

$

In Stock, Qty 7

0

21

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$9.99

$

In Stock, Qty 16

0

22

Echo 17722039631

SPRING, RECOIL
(Superseded to P021045370)

$18.99

$

In Stock, only 1 left!

0

23

Echo 17722139630

PLATE, STARTER

$3.99

$

In Stock, only 2 left!

0

24

Echo 17722606530

ROPE, STARTER 3.0×850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, Qty 5

0

25

Echo A506000000

REEL, ROPE
(Superseded to A506000090)

$13.99

$

In Stock, only 2 left!

0

26

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

27

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, only 2 left!

0

29

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

30

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, only 2 left!

0

31

Echo 90050000008

NUT M8

Note: S/N: 03001001-03001433

$0.99

$

In Stock, Qty 20+

0

32

Echo 90060000008

WASHER 8.5×16×1.2

Note: S/N: 03001001-03001433

$0.99

$

Usually ships in 2-4 days

0

31

Echo 90051500008

NUT, FLANGE M8

Note: S/N: 03001434-03999999

$1.99

$

In Stock, Qty 5

0

Echo 99944440000

BULK STARTER ROPE - Ø 3.0 MM×61 M

$35.99

$

In Stock, only 2 left!

0
