CS-300 - Echo Chainsaw (SN: 03001001 - 03999999) Intake, Exhaust Parts Diagram

Chainsaw

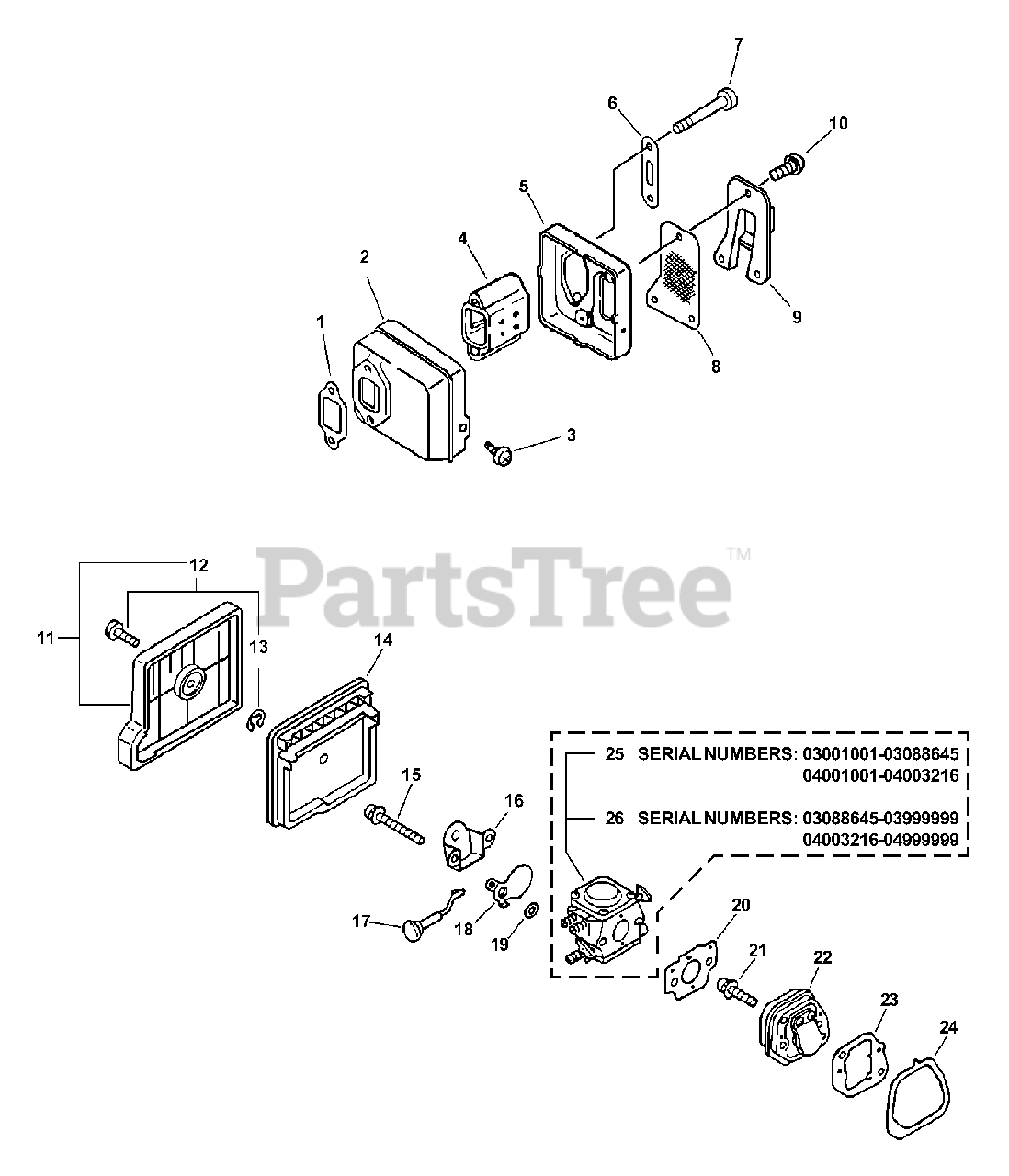

Intake, Exhaust Parts Diagram

  • Title

1

Echo 14551013931

GASKET, MUFFLER

$2.49

$

In Stock, Qty 20+

0

2

Echo 14585813931

MUFFLER

$

$

Not available

3

Echo 90025004008

SCREW TAPPING 4×8

$0.99

$

Usually ships in 2-4 days

0

4

Echo 14585913930

SILENCER

$7.49

$

Usually ships in 2-4 days

0

5

Echo 14586135530

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

6

Echo 14564213930

PLATE, EYE

$2.49

$

Usually ships in 2-4 days

0

7

Echo 10102313930

BOLT 6 MM

$0.99

$

In Stock, Qty 8

0

8

Echo 14586213931

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

9

Echo 14587635530

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

10

Echo 90025004008

SCREW TAPPING 4×8

$0.99

$

Usually ships in 2-4 days

0

11

Echo 13030239136

COVER ASSY, AIR FILTER

Note: Includes ITEMS 12-13

$21.99

$

In Stock, only 2 left!

0

12

Echo 13040613933

THUMBSCREW

Note: INCLUDES ITEMS 13

$4.99

$

In Stock, Qty 5

0

13

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

14

Echo 13031039131

FILTER, AIR
(Superseded to 13031039132)

$13.99

$

In Stock, Qty 20+

0

15

Echo 90023805045

SCREW 5×45

$0.99

$

In Stock, Qty 5

0

16

Echo 12901139130

PLATE, PREVENT

$6.49

$

In Stock, only 2 left!

0

17

Echo 17851039230

ROD, CHOKE

$6.99

$

In Stock, only 2 left!

0

18

Echo 17851539130

SHUTTER, CHOKE

$2.99

$

In Stock, only 1 left!

0

19

Echo 17851603930

WASHER 5.5×8×0.8
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

20

Echo V103000021

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

21

Echo 90025005018

SCREW 5×18

$0.99

$

In Stock, Qty 7

0

22

Echo P021000010

INSULATOR KIT

$24.99

$

In Stock, only 2 left!

0

23

Echo V103000120

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

24

Echo 13001239131

SEAL, INTAKE
(Superseded to 13001239132)

$3.49

$

In Stock, Qty 5

0

25

Echo A021000230

CARBURETOR - WT-589
(Superseded to A021000231)

Note: S/N: 03001001-03088645 & 04001001-04003216

$88.99

$

In Stock, Qty 7

0

26

Echo A021000760

CARBURETOR - WT-589
(Superseded to A021000761)

Note: S/N: 03088646-03999999 & 04003217-04999999

$88.99

$

In Stock, Qty 7

0
