CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Air Filter, Intake, Exhaust Parts Diagram

CS-3000 Technical Data: - External dimensions: 260 x 230 x 220 mm - Weight (saw only): 3.4 kg - Fuel tank: 250 ml; chain-oil tank: 150 ml (50 : 1 petrol/air) - Guide-bar lengths: 300 mm / 350 mm; chain pitch 9.53 mm, gauge 1.27 mm (Carlton N1C-BL Oregon 91VG) - Engine: 30.1 cc 2-cycle, 1.04 kW, 2 800 rpm, 0.61 kg/h fuel consumption - Sound pressure level: 96.8 dB(A) - Chain brake mean braking time: 0.05 s - Vibration: 4.3 m/s (front), 3.7 m/s (rear)

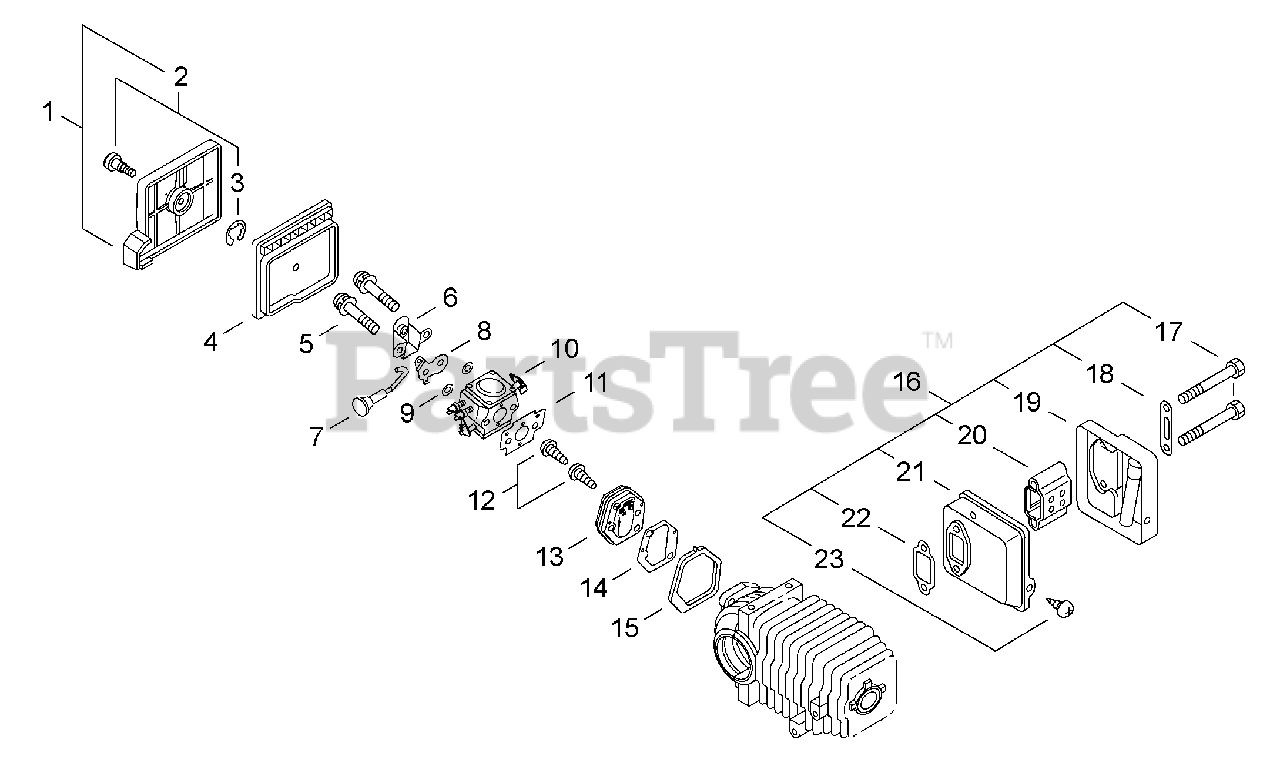

Air Filter, Intake, Exhaust Parts Diagram

  • Title

1

Echo 13030239136

COVER ASSY, AIR FILTER

$21.99

$

In Stock, Qty 11

0

2

Echo 13040613933

THUMBSCREW

$4.99

$

In Stock, Qty 5

0

3

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

4

Echo 13031039132

FILTER, AIR

$13.99

$

In Stock, Qty 20+

0

5

Echo 90023805045

SCREW 5×45

$0.99

$

In Stock, Qty 15

0

6

Echo 12901139130

PLATE, PREVENT

$6.49

$

In Stock, only 2 left!

0

7

Echo 17851039230

ROD, CHOKE

$6.99

$

In Stock, Qty 6

0

8

Echo 17851539130

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 8

0

9

Echo 17851603930

WASHER 5.5×8×0.8
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

10

Echo 12300060131

CARBURETOR - WT-385A

$93.99

$

In Stock, Qty 5

0

11

Echo V103000021

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

12

Echo 90025005018

SCREW 5×18

$0.99

$

In Stock, Qty 7

0

13

Echo P021000010

INSULATOR KIT

$24.99

$

In Stock, only 2 left!

0

14

Echo V103000120

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

15

Echo 13001239131

SEAL, INTAKE
(Superseded to 13001239132)

$3.49

$

In Stock, Qty 20+

0

16

Echo 14560014931

MUFFLER ASSY

$60.99

$

Usually ships in 2-4 days

0

17

Echo 10102313930

BOLT 6 MM

$0.99

$

In Stock, Qty 7

0

18

Echo 14564213930

PLATE, EYE

$2.49

$

Usually ships in 2-4 days

0

19

Echo 14560614931

COVER, MUFFLER

$24.99

$

Usually ships in 2-4 days

0

20

Echo 14585913930

SILENCER

$7.49

$

Usually ships in 2-4 days

0

21

Echo 14585813931

MUFFLER

$

$

Not available

22

Echo 14551013931

GASKET, MUFFLER

$2.49

$

In Stock, Qty 20+

0

23

Echo 90025004008

SCREW TAPPING 4×8

$0.99

$

Usually ships in 2-4 days

0
