CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Carburetor Parts Diagram

Chainsaw

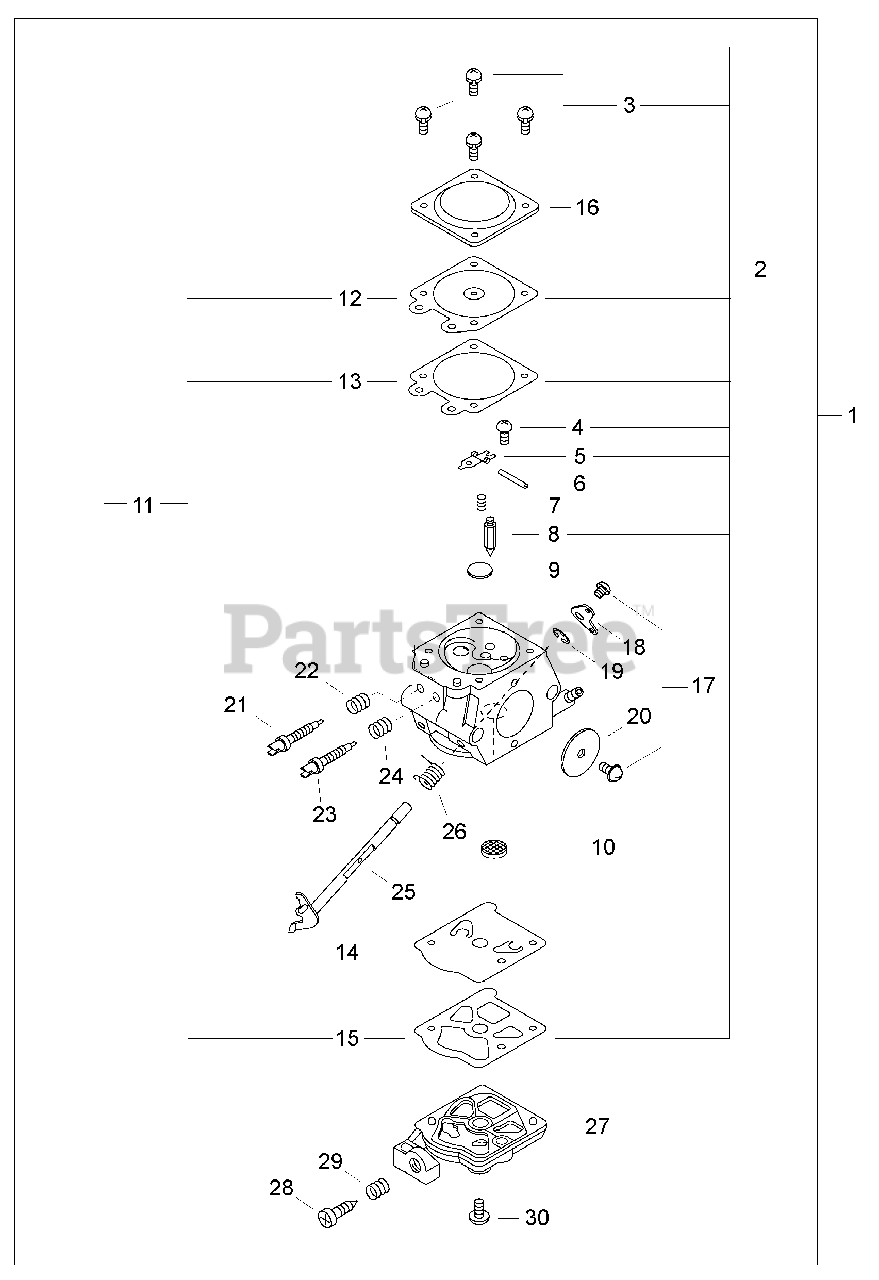

Carburetor Parts Diagram

  • Title

1

Echo 12300060131

CARBURETOR WT-385A

$86.99

$

In Stock, only 4 left!

0

2

Echo 12310037330

REPAIR KIT

$15.99

$

In Stock, Qty 15

0

3

SCREW

$

$

Not available

4

SCREW, METERING LEVER PIN

$

$

Not available

5

LEVER, METERING

$

$

Not available

6

PIN, METERING LEVER

$

$

Not available

7

SPRING

$

$

Not available

8

------------------

VALVE, INLET NEEDLE

$

$

Not available

9

PLUG, WELCH

$

$

Not available

10

STRAINER

$

$

Not available

11

Echo 12310105960

DIAPHRAGM/GASKET KIT

$7.49

$

In Stock, Qty 7

0

12

------------------

DIAPHRAGM, METERING

$

$

Not available

13

GASKET, METERING

$

$

Not available

14

------------------

DIAPHRAGM, PUMP

$

$

Not available

15

GASKET, FUEL PUMP

$

$

Not available

16

Echo 12314203930

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

17

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 17

0

18

Echo 12315039230

LEVER, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

19

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, Qty 10

0

20

Echo 12311605230

VALVE, THROTTLE

$1.99

$

In Stock, only 4 left!

0

21

Echo 12312039530

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

22

Echo 12311922130

SPRING

$2.99

$

Usually ships in 2-4 days

0

23

Echo 12311824430

NEEDLE - LOW SPEED

$3.99

$

Usually ships in 2-4 days

0

24

Echo 12312122130

SPRING

$3.49

$

Usually ships in 2-4 days

0

25

Echo 12311739630

SHAFT, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

26

Echo 12311347530

SPRING, THROTTLE RETURN

$4.99

$

Usually ships in 2-4 days

0

27

Echo 12312409320

COVER, PUMP

$5.49

$

Usually ships in 2-4 days

0

28

Echo 12313419730

SCREW, IDLE ADJUST

$2.49

$

In Stock, Qty 5

0

29

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

30

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 2 left!

0
