CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Carburetor Parts Diagram

CS-3000 Technical Data: - External dimensions: 260 x 230 x 220 mm - Weight (saw only): 3.4 kg - Fuel tank: 250 ml; chain-oil tank: 150 ml (50 : 1 petrol/air) - Guide-bar lengths: 300 mm / 350 mm; chain pitch 9.53 mm, gauge 1.27 mm (Carlton N1C-BL Oregon 91VG) - Engine: 30.1 cc 2-cycle, 1.04 kW, 2 800 rpm, 0.61 kg/h fuel consumption - Sound pressure level: 96.8 dB(A) - Chain brake mean braking time: 0.05 s - Vibration: 4.3 m/s (front), 3.7 m/s (rear)

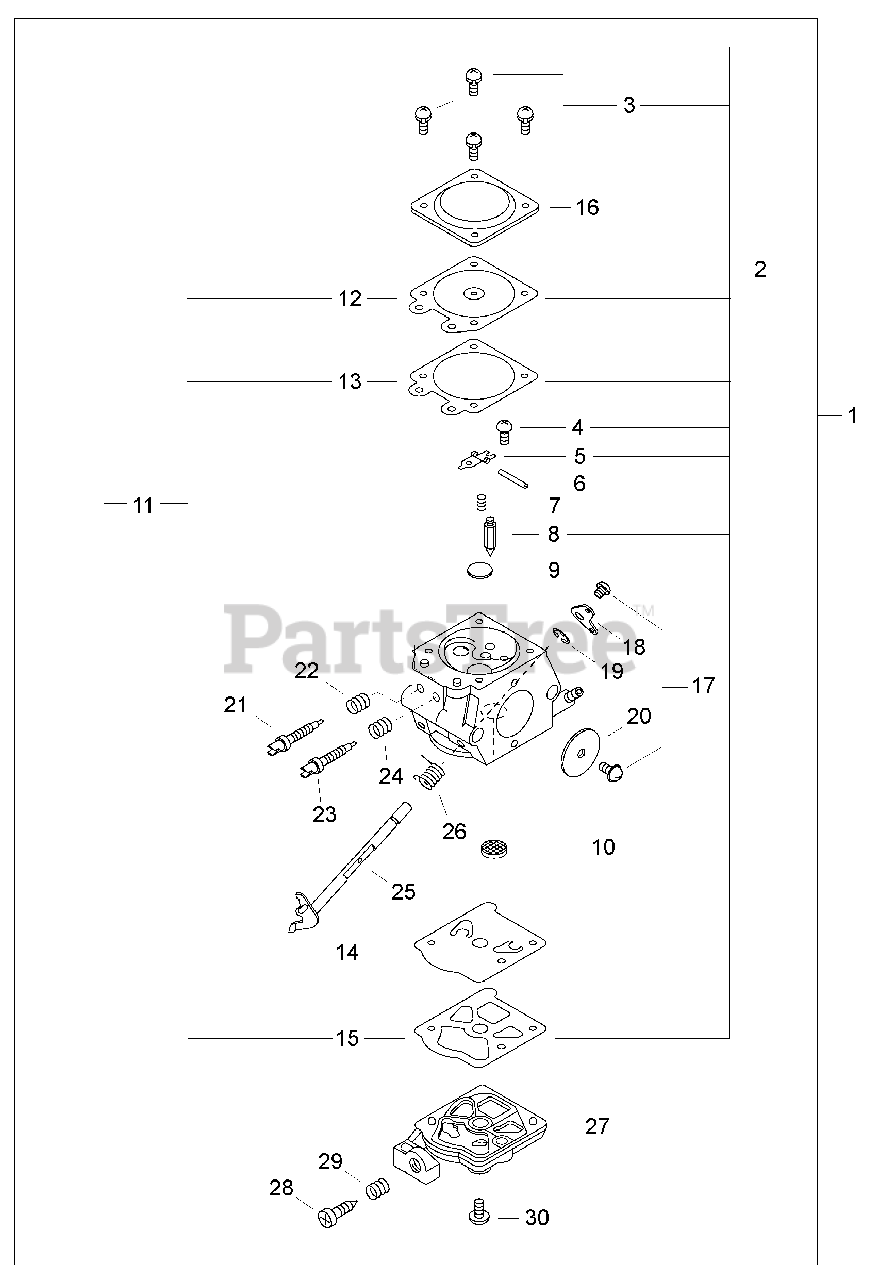

Carburetor Parts Diagram

  • Title

1

Echo 12300060131

CARBURETOR - WT-385A

$93.99

$

In Stock, Qty 5

0

2

Echo 12310037330

REPAIR KIT, CARBURETOR

$

$

Not available

3

SCREW

$

$

Not available

4

SCREW, METERING LEVER PIN

$

$

Not available

5

LEVER, METERING

$

$

Not available

6

PIN, METERING LEVER

$

$

Not available

7

SPRING

$

$

Not available

8

VALVE, INLET NEEDLE

$

$

Not available

9

PLUG, WELCH

$

$

Not available

10

STRAINER

$

$

Not available

11

Echo 12310105960

GASKET / DIAPHRAGM KIT

$

$

Not available

12

DIAPHRAGM, METERING

$

$

Not available

13

GASKET, METERING

$

$

Not available

14

DIAPHRAGM, PUMP

$

$

Not available

15

GASKET, FUEL PUMP

$

$

Not available

16

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

17

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

18

Echo 12315039230

LEVER, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

19

Echo 12312715030

E-RING

$0.99

$

In Stock, only 2 left!

0

20

Echo 12311605230

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

21

Echo 12312039530

NEEDLE, HIGH SPEED

$6.99

$

Usually ships in 2-4 days

0

22

Echo 12311922130

SPRING, HIGH NEEDLE

$3.49

$

Usually ships in 2-4 days

0

23

Echo 12311824430

NEEDLE, LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

24

Echo 12312122130

SPRING, NEEDLE

$3.99

$

Usually ships in 2-4 days

0

25

Echo 12311739630

SHAFT, THROTTLE

$8.99

$

Usually ships in 2-4 days

0

26

Echo 12311347530

SPRING, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

27

Echo 12312409320

COVER, FUEL PUMP

$6.49

$

Usually ships in 2-4 days

0

28

Echo 12313419730

SCREW, IDLE ADJUST

$2.99

$

In Stock, only 3 left!

0

29

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

30

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0
