CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Chain Brake Parts Diagram

CS-3000 Technical Data: - External dimensions: 260 x 230 x 220 mm - Weight (saw only): 3.4 kg - Fuel tank: 250 ml; chain-oil tank: 150 ml (50 : 1 petrol/air) - Guide-bar lengths: 300 mm / 350 mm; chain pitch 9.53 mm, gauge 1.27 mm (Carlton N1C-BL Oregon 91VG) - Engine: 30.1 cc 2-cycle, 1.04 kW, 2 800 rpm, 0.61 kg/h fuel consumption - Sound pressure level: 96.8 dB(A) - Chain brake mean braking time: 0.05 s - Vibration: 4.3 m/s (front), 3.7 m/s (rear)

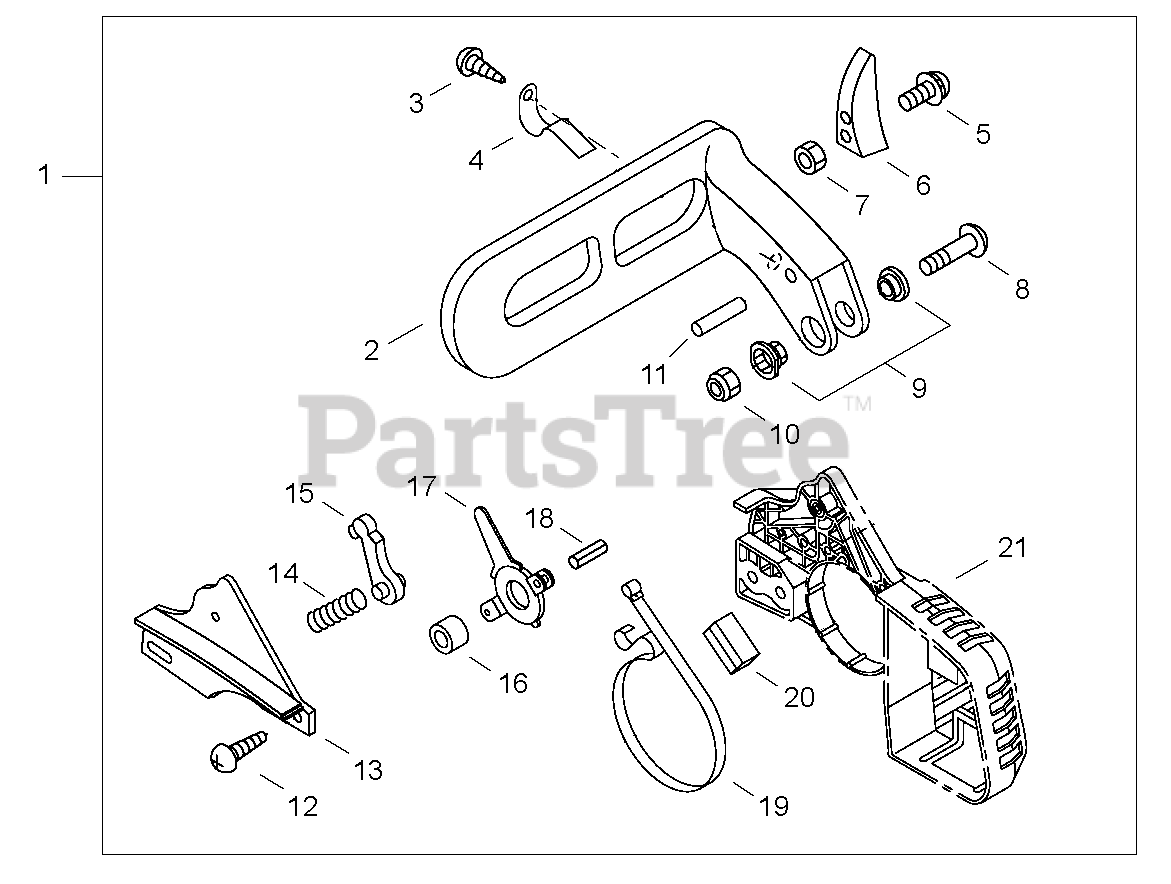

Chain Brake Parts Diagram

  • Title

1

Echo 43310039631

BRAKE ASSY, CHAIN

$120.99

$

Usually ships in 2-4 days

0

2

Echo 43311139631

BRAKE, CHAIN

$30.99

$

In Stock, only 1 left!

0

3

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

4

Echo 43311439130

SPRING, FLAT

$3.49

$

In Stock, only 2 left!

0

5

Echo 90023804020

SCREW 4×20

$0.99

$

In Stock, only 4 left!

0

6

Echo 43317139630

WEIGHT, BRAKE

$18.99

$

Usually ships in 2-4 days

0

7

Echo 900500-00004

NUT M4

$0.99

$

In Stock, Qty 20+

0

8

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, Qty 16

0

9

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, Qty 20+

0

10

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

11

Echo 90033040238

ROLLER 4×23.8

$0.99

$

In Stock, only 4 left!

0

12

Echo 90025304012

SCREW 4×12

$1.49

$

Usually ships in 2-4 days

0

13

Echo 43331039130

COVER, BRAKE

$6.49

$

Usually ships in 2-4 days

0

14

Echo 43312235430

SPRING, COMPRESSION

$3.99

$

In Stock, only 2 left!

0

15

Echo 43320935430

STOPPER, BRAKE

$5.99

$

In Stock, only 1 left!

0

16

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, Qty 16

0

17

Echo 43320835431

LEVER, BRAKE

$22.99

$

In Stock, only 3 left!

0

18

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 4 left!

0

19

Echo 43312339130

BAND, BRAKE

$9.49

$

Usually ships in 2-4 days

0

20

Echo 43331232630

SEAL, BRAKE

$1.49

$

In Stock, only 3 left!

0

21

Echo 43300539133

GUARD, SPROCKET

$34.99

$

Usually ships in 2-4 days

0
