CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Engine Cover Parts Diagram

CS-3000 Technical Data: - External dimensions: 260 x 230 x 220 mm - Weight (saw only): 3.4 kg - Fuel tank: 250 ml; chain-oil tank: 150 ml (50 : 1 petrol/air) - Guide-bar lengths: 300 mm / 350 mm; chain pitch 9.53 mm, gauge 1.27 mm (Carlton N1C-BL Oregon 91VG) - Engine: 30.1 cc 2-cycle, 1.04 kW, 2 800 rpm, 0.61 kg/h fuel consumption - Sound pressure level: 96.8 dB(A) - Chain brake mean braking time: 0.05 s - Vibration: 4.3 m/s (front), 3.7 m/s (rear)

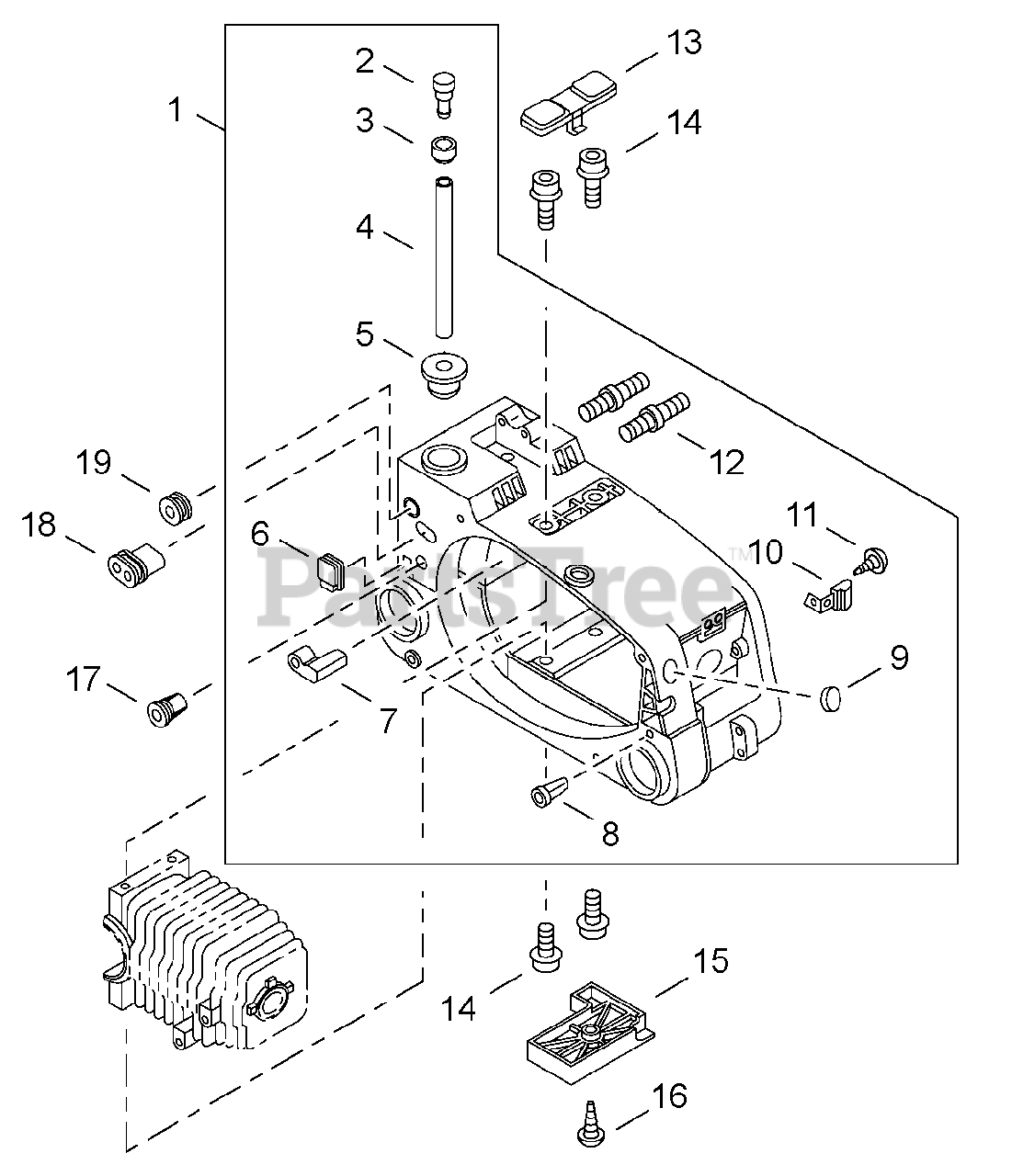

Engine Cover Parts Diagram

  • Title

1

Echo 10400039134

COVER KIT, ENGINE
(Superseded to 10400039136)

$102.99

$

Usually ships in 2-4 days

0

2

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

3

Echo 13132839130

HOLDER, VENT

$9.99

$

In Stock, Qty 7

0

4

Echo 13201004920

PIPE, FUEL 3×5×150 BLACK
(Superseded to 13201004921)

$1.99

$

In Stock, only 4 left!

0

5

Echo 13211539130

GROMMET, FUEL
(Superseded to 13211539131)

$3.49

$

In Stock, Qty 20+

0

6

Echo 10403439130

PLUG

$3.99

$

Usually ships in 2-4 days

0

7

Echo 13033639530

PLUG

$6.99

$

In Stock, only 2 left!

0

8

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 20+

0

9

Echo 16391139130

PLUG

$2.49

$

In Stock, only 2 left!

0

10

Echo 10421539131

LATCH

$5.49

$

In Stock, only 1 left!

0

11

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

12

Echo V224000031

BOLT, STUD 6

$1.99

$

In Stock, Qty 20+

0

13

Echo 10402939130

COVER, TOP

$1.99

$

In Stock, only 2 left!

0

14

Echo 9111005016

BOLT 5×16

$0.99

$

In Stock, Qty 20+

0

15

Echo 10404439130

COVER, BOTTOM

$10.99

$

Usually ships in 2-4 days

0

16

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

17

Echo 12902339131

GROMMET, IDLE

$2.49

$

In Stock, only 2 left!

0

18

Echo 12901039131

GROMMET, NEEDLE

$3.49

$

In Stock, only 2 left!

0

19

Echo 17881003330

GROMMET, CHOKE

$1.49

$

Usually ships in 2-4 days

0
