CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Flywheel, Ignition Parts Diagram

CS-3000 Technical Data: - External dimensions: 260 x 230 x 220 mm - Weight (saw only): 3.4 kg - Fuel tank: 250 ml; chain-oil tank: 150 ml (50 : 1 petrol/air) - Guide-bar lengths: 300 mm / 350 mm; chain pitch 9.53 mm, gauge 1.27 mm (Carlton N1C-BL Oregon 91VG) - Engine: 30.1 cc 2-cycle, 1.04 kW, 2 800 rpm, 0.61 kg/h fuel consumption - Sound pressure level: 96.8 dB(A) - Chain brake mean braking time: 0.05 s - Vibration: 4.3 m/s (front), 3.7 m/s (rear)

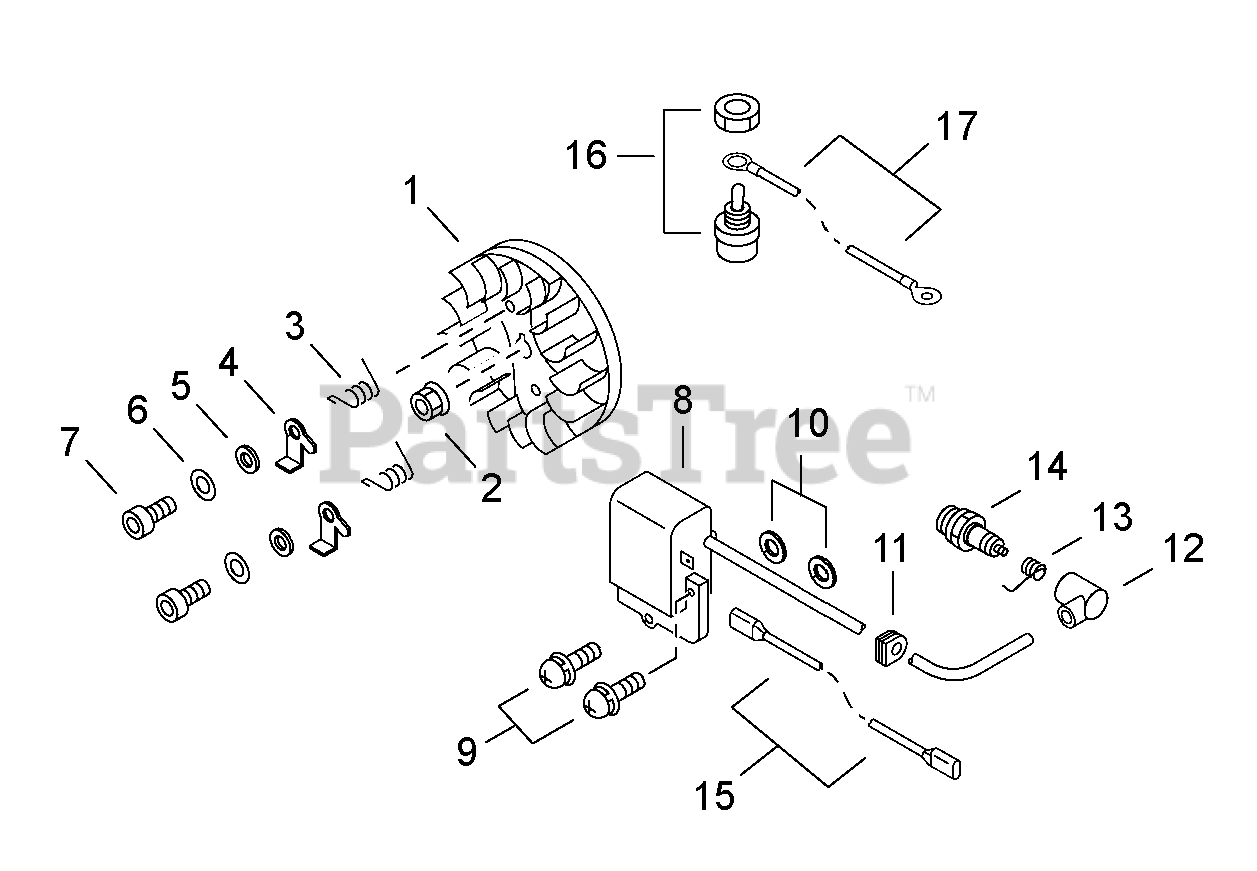

Flywheel, Ignition Parts Diagram

  • Title

1

Echo 15680039432

FLYWHEEL

$114.99

$

Usually ships in 2-4 days

0

2

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 4 left!

0

3

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 2 left!

0

4

Echo A514000000

PAWL, STARTER
(Superseded to A514000001)

$3.99

$

In Stock, Qty 15

0

5

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

6

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

7

Echo V203000090

BOLT 5×14

$0.99

$

Usually ships in 2-4 days

0

8

Echo 15662639430

COIL, IGNITION
(Superseded to 15662639431)

$103.99

$

Usually ships in 2-4 days

0

9

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

10

Echo 15011716430

WASHER 5.2×12×3

$3.49

$

In Stock, Qty 20+

0

11

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

12

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 6

0

13

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

14

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

15

Echo 16201039431

LEAD - IGNITION L= 95

$3.49

$

In Stock, only 2 left!

0

16

Echo 16340039130

SWITCH, ON-OFF

$15.99

$

In Stock, only 2 left!

0

17

Echo 16201039131

LEAD - GROUND L= 100

$6.49

$

In Stock, Qty 6

0
