CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Fuel & Oil System Parts Diagram

Chainsaw

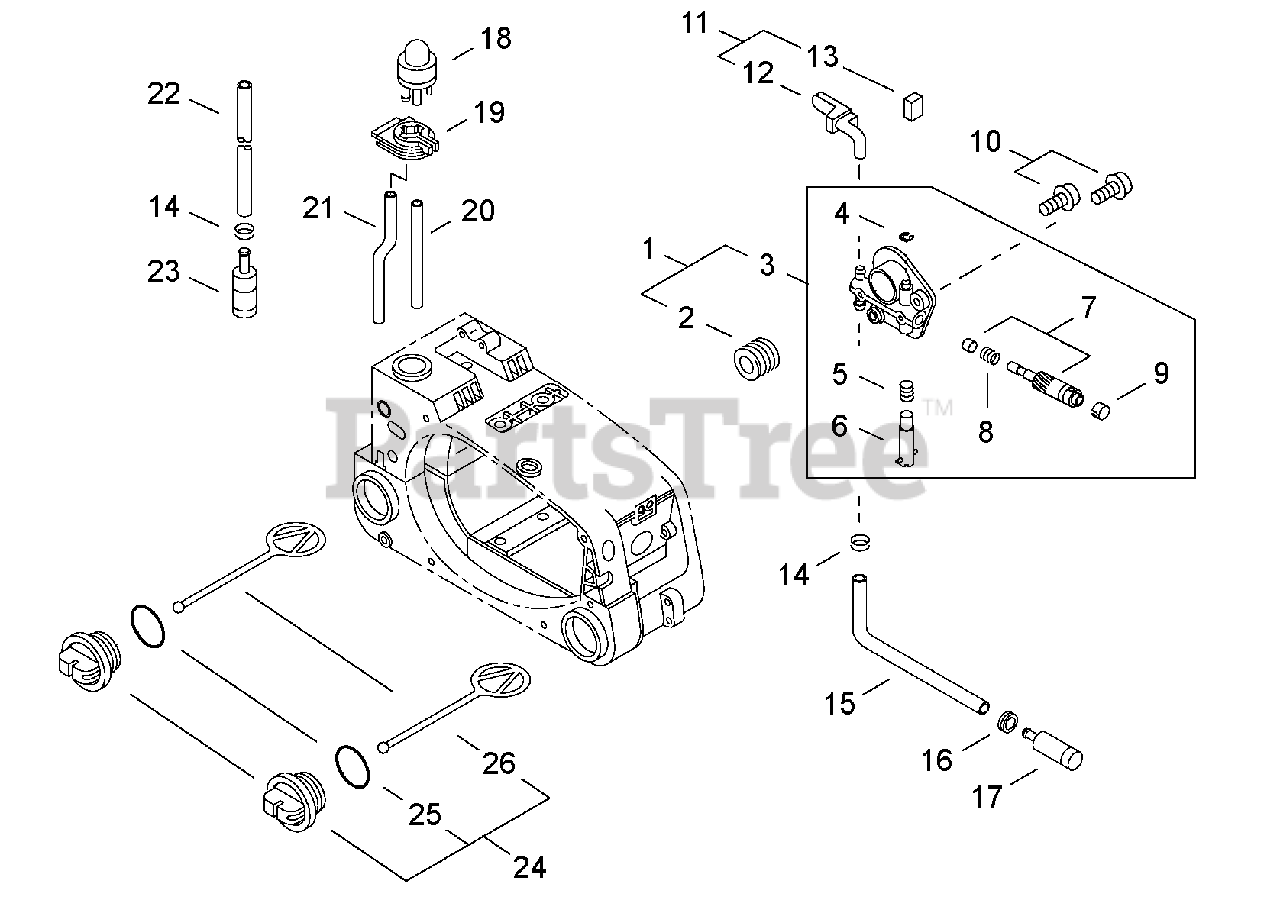

Fuel & Oil System Parts Diagram

  • Title

1

Echo P021009171

AUTO-OILER ASSY

$80.99

$

Usually ships in 2-4 days

0

2

Echo V652000021

GEAR - WORM

$16.99

$

In Stock, only 2 left!

0

3

Echo C022000010

AUTO-OILER ASSY

$49.99

$

In Stock, only 2 left!

0

4

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

5

Echo P022010670

SPRING

$2.49

$

In Stock, only 4 left!

0

6

Echo P022010680

NEEDLE, ADJUST

$7.99

$

In Stock, only 2 left!

0

7

Echo P022010650

PLUNGER

$13.99

$

In Stock, only 2 left!

0

8

Echo P022010660

SPRING

$2.49

$

In Stock, only 2 left!

0

9

Echo P022010640

CAP, OIL PUMP

$0.99

$

In Stock, Qty 9

0

10

Echo 90023505012

SCREW - 5X12

$0.99

$

In Stock, Qty 9

0

11

Echo 43720139131

OIL TUBE KIT
(Superseded to P100002730)

$13.99

$

In Stock, only 2 left!

0

12

Echo 43721139133

PIPE - OIL
(Superseded to 43721139134)

$2.49

$

In Stock, only 3 left!

0

13

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 7

0

14

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

15

Echo V471000110

PIPE - 3X6X115 -- BLACK
(Superseded to V471000111)

$2.99

$

In Stock, Qty 10

0

16

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

17

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

18

Echo 12318139130

PUMP, PURGE

$7.99

$

In Stock, Qty 20+

0

19

Echo 13275839131

BRACKET

$11.99

$

In Stock, only 1 left!

0

20

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

21

Echo 13271639130

PIPE - 2X4X42 -- CLEAR

Note: RePower BULK OPTION: 90018

$1.99

$

In Stock, Qty 20+

0

22

Echo 13201239130

PIPE, FUEL - SPIRAL
(Superseded to 13201239131)

$7.49

$

In Stock, Qty 10

0

23

Echo 13120514930

FILTER, FUEL
(Superseded to 13120514931)

$8.99

$

In Stock, Qty 20+

0

24

Echo P021007630

CAP ASSY - BLACK

$11.99

$

In Stock, Qty 20+

0

25

Echo 90072100025

O-RING - 25

$2.49

$

In Stock, Qty 20+

0

26

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 15

0
