CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Fuel System, Oil System Parts Diagram

CS-3000 Technical Data: - External dimensions: 260 x 230 x 220 mm - Weight (saw only): 3.4 kg - Fuel tank: 250 ml; chain-oil tank: 150 ml (50 : 1 petrol/air) - Guide-bar lengths: 300 mm / 350 mm; chain pitch 9.53 mm, gauge 1.27 mm (Carlton N1C-BL Oregon 91VG) - Engine: 30.1 cc 2-cycle, 1.04 kW, 2 800 rpm, 0.61 kg/h fuel consumption - Sound pressure level: 96.8 dB(A) - Chain brake mean braking time: 0.05 s - Vibration: 4.3 m/s (front), 3.7 m/s (rear)

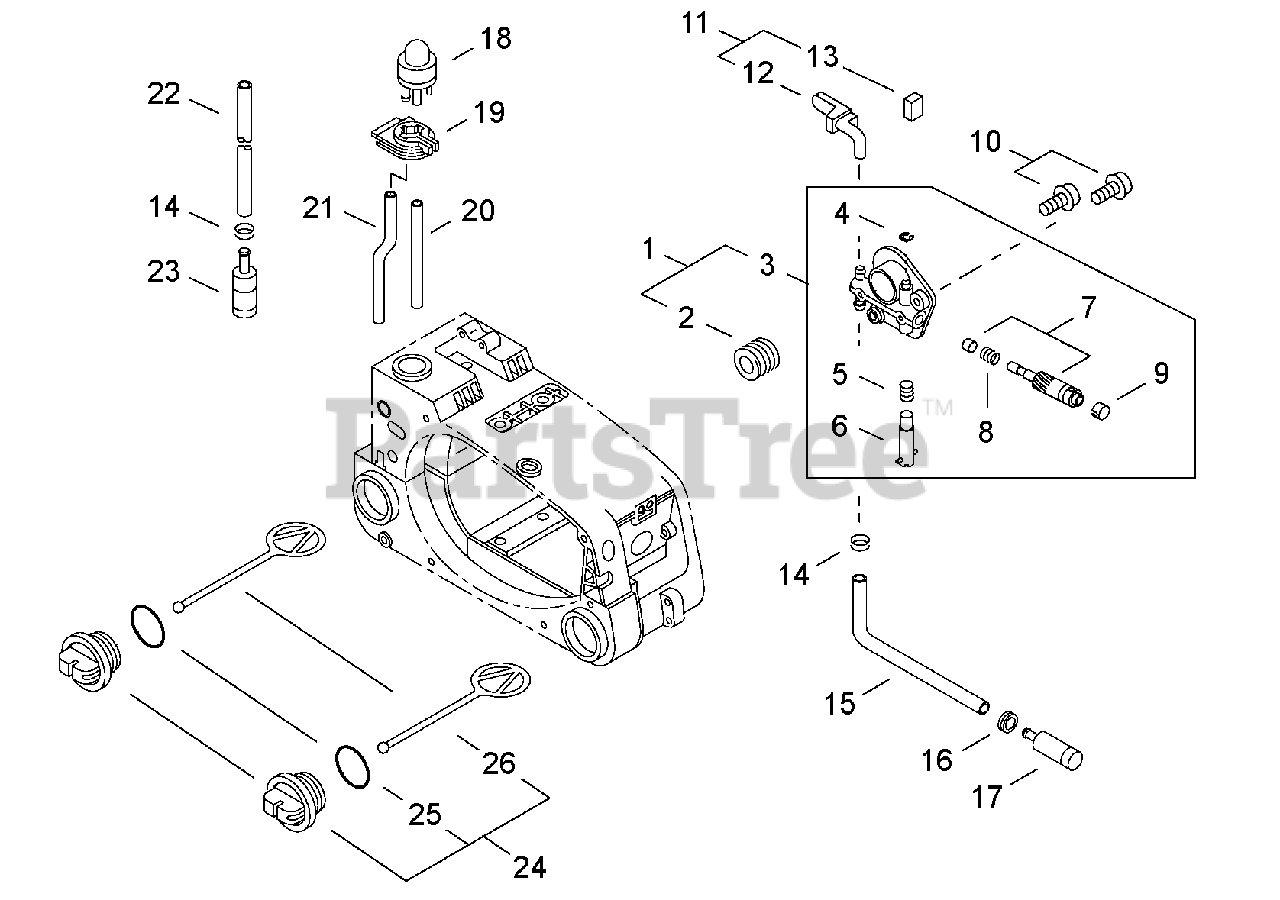

Fuel System, Oil System Parts Diagram

  • Title

1

Echo P021009171

AUTO-OILER ASSY, & WORM GEAR

$87.99

$

Usually ships in 2-4 days

0

2

Echo V652000021

GEAR, WORM

$17.99

$

In Stock, Qty 7

0

3

Echo C022000010

AUTO-OILER ASSY

$53.99

$

In Stock, only 4 left!

0

4

Echo 125327-15130

E-RING

$0.99

$

In Stock, only 3 left!

0

5

Echo P022010670

SPRING

$2.49

$

In Stock, only 4 left!

0

6

Echo P022010680

ADJUSTER, OILER

$8.49

$

In Stock, only 2 left!

0

7

Echo P022010650

PLUNGER ASSY

$14.99

$

In Stock, only 1 left!

0

8

Echo P022010660

SPRING

$2.49

$

In Stock, only 2 left!

0

9

Echo P022010640

CAP, PLUNGER

$0.99

$

In Stock, Qty 8

0

10

Echo 90023505012

SCREW 5×12

$0.99

$

In Stock, Qty 6

0

11

Echo 43720139131

PIPE KIT, OIL
(Superseded to P100002730)

$14.99

$

In Stock, only 2 left!

0

12

Echo 43721139133

PIPE, OIL OUTLET
(Superseded to 43721139134)

$2.49

$

In Stock, Qty 12

0

13

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

14

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

15

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

$2.99

$

In Stock, Qty 20+

0

16

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

17

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

18

Echo 12318139130

BULB, PURGE

$8.49

$

In Stock, Qty 20+

0

19

Echo 13275839131

BRACKET, BULB

$12.99

$

In Stock, only 1 left!

0

20

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

21

Echo 13271639130

PIPE, FUEL 2×4×42 CLEAR

Note: RePower BULK OPTION: 90018

$1.99

$

In Stock, Qty 20+

0

22

Echo 13201239130

PIPE, FUEL 3×6×160
(Superseded to 13201239131)

$7.99

$

In Stock, Qty 15

0

23

Echo 13120514930

FILTER, FUEL
(Superseded to 13120514931)

$9.99

$

In Stock, Qty 20+

0

24

Echo P021007630

CAP ASSY

$12.99

$

In Stock, Qty 20+

0

25

Echo 90072100025

O-RING 25

$2.99

$

In Stock, Qty 20+

0

26

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0
