CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Short Block Parts Diagram

CS-3000 Technical Data: - External dimensions: 260 x 230 x 220 mm - Weight (saw only): 3.4 kg - Fuel tank: 250 ml; chain-oil tank: 150 ml (50 : 1 petrol/air) - Guide-bar lengths: 300 mm / 350 mm; chain pitch 9.53 mm, gauge 1.27 mm (Carlton N1C-BL Oregon 91VG) - Engine: 30.1 cc 2-cycle, 1.04 kW, 2 800 rpm, 0.61 kg/h fuel consumption - Sound pressure level: 96.8 dB(A) - Chain brake mean braking time: 0.05 s - Vibration: 4.3 m/s (front), 3.7 m/s (rear)

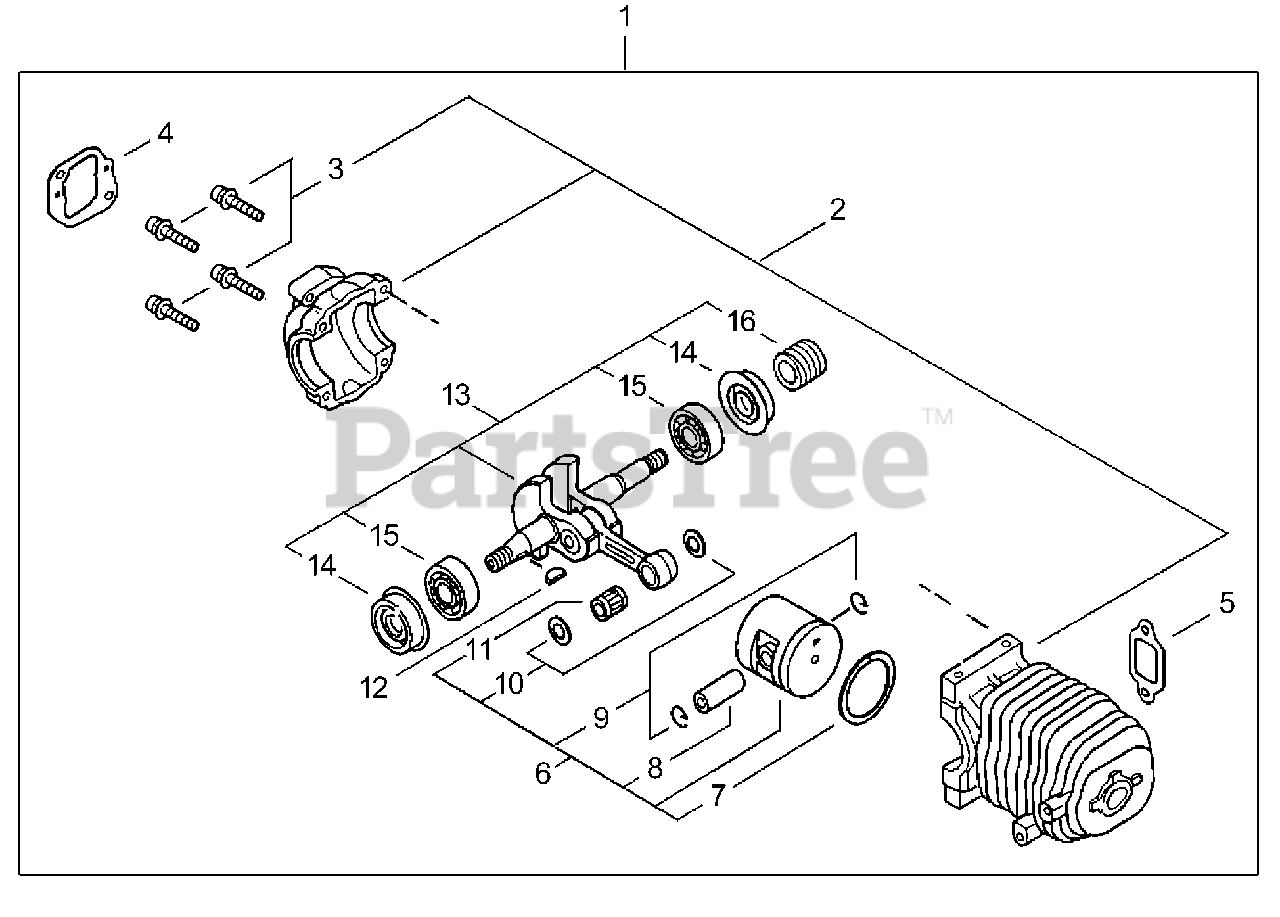

Short Block Parts Diagram

  • Title

1

Echo SB1018

SHORT BLOCK CS-3000
(Superseded to Discontinued)

$

$

Not available

2

Echo 10020239131

CYLINDER & CRANKCASE ASSY

$275.99

$

Usually ships in 2-4 days

0

3

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo V103000120

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

5

Echo 14551013931

GASKET, MUFFLER

$2.49

$

In Stock, Qty 20+

0

6

Echo 10000039130

PISTON KIT

$98.99

$

Usually ships in 2-4 days

0

7

Echo 10001146430

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

8

Echo 10001315330

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

9

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

10

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, Qty 8

0

11

Echo 17501203930

BEARING, NEEDLE 8

$13.99

$

In Stock, only 2 left!

0

12

Echo 10014239130

KEY, WOODRUFF

$3.49

$

In Stock, Qty 6

0

13

Echo P021011013

CRANKSHAFT ASSY

$219.99

$

Usually ships in 2-4 days

0

14

Echo V505000011

SEAL, OIL 12

$9.49

$

In Stock, Qty 17

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, Qty 20+

0

16

Echo V652000021

GEAR, WORM

$17.99

$

In Stock, Qty 7

0
