CS-3000 - Echo Chainsaw (SN: 20001001 - 20999999) Starter Parts Diagram

CS-3000 Technical Data: - External dimensions: 260 x 230 x 220 mm - Weight (saw only): 3.4 kg - Fuel tank: 250 ml; chain-oil tank: 150 ml (50 : 1 petrol/air) - Guide-bar lengths: 300 mm / 350 mm; chain pitch 9.53 mm, gauge 1.27 mm (Carlton N1C-BL Oregon 91VG) - Engine: 30.1 cc 2-cycle, 1.04 kW, 2 800 rpm, 0.61 kg/h fuel consumption - Sound pressure level: 96.8 dB(A) - Chain brake mean braking time: 0.05 s - Vibration: 4.3 m/s (front), 3.7 m/s (rear)

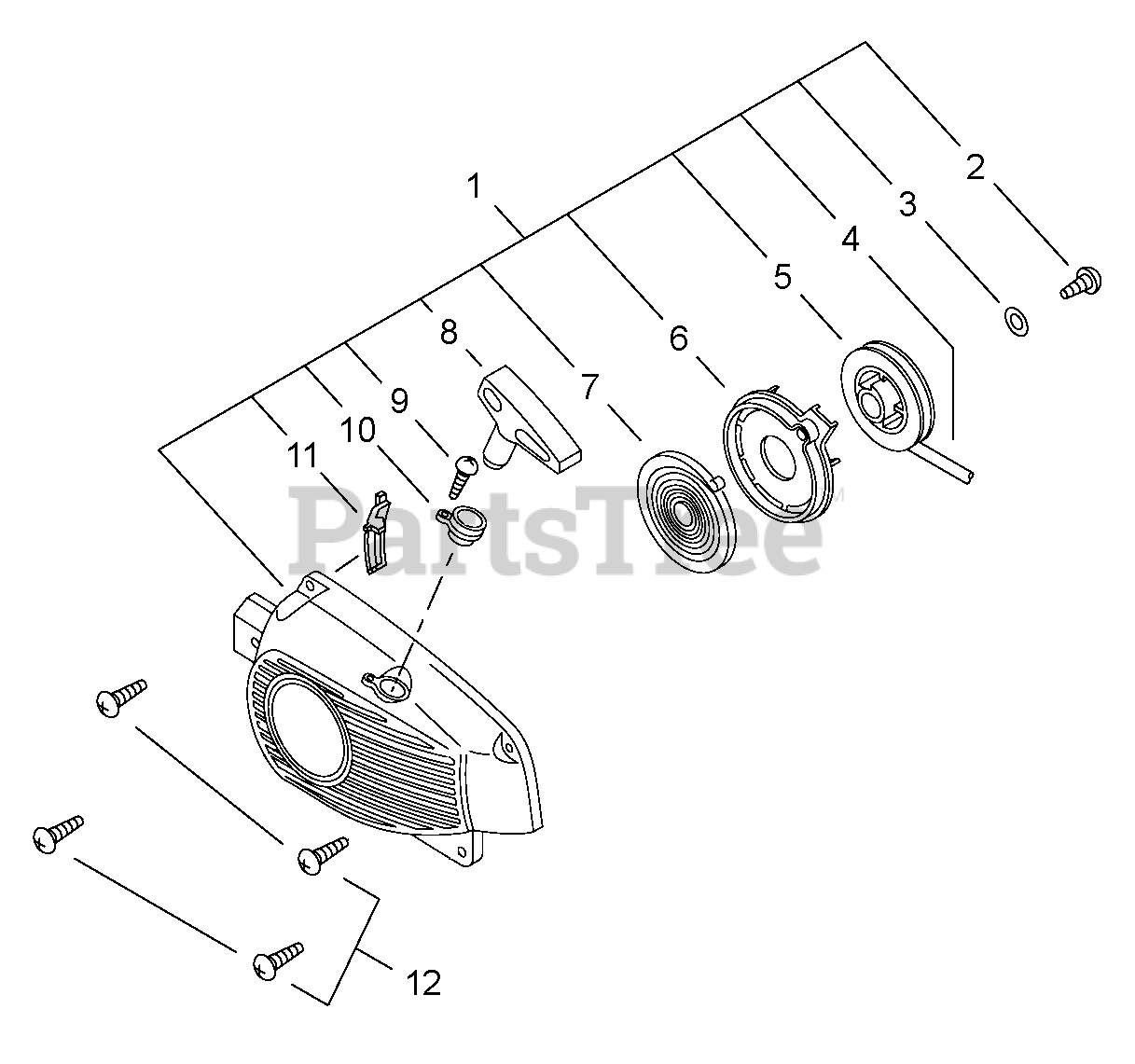

Starter Parts Diagram

  • Title

1

Echo 17720039432

STARTER ASSY, RECOIL
(Superseded to 17720039433)

$117.99

$

Usually ships in 2-4 days

0

2

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, Qty 20+

0

3

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

4

Echo 17722606530

ROPE, STARTER 3.0×850

$7.49

$

In Stock, Qty 14

0

5

Echo 17721535632

REEL, ROPE

$13.99

$

In Stock, only 2 left!

0

6

Echo 17722135631

PLATE, STARTER

$4.49

$

In Stock, Qty 5

0

7

Echo 17722035430

SPRING, RECOIL

$15.99

$

Usually ships in 2-4 days

0

8

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$9.99

$

In Stock, Qty 15

0

9

Echo 90029603014

SCREW 3×14

$0.99

$

In Stock, Qty 7

0

10

Echo 17722739131

GUIDE, ROPE

$4.49

$

Usually ships in 2-4 days

0

11

Echo 17725639130

PLUG

$6.49

$

Usually ships in 2-4 days

0

12

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0
