CS-3000 - Echo Chainsaw (Type 1) (SN: 00001001 - 99999999) Intake, Exhaust Parts Diagram

CS-3000 Technical Data: - External dimensions: 260 x 230 x 220 mm - Weight (saw only): 3.4 kg - Fuel tank: 250 ml; chain-oil tank: 150 ml (50 : 1 petrol/air) - Guide-bar lengths: 300 mm / 350 mm; chain pitch 9.53 mm, gauge 1.27 mm (Carlton N1C-BL Oregon 91VG) - Engine: 30.1 cc 2-cycle, 1.04 kW, 2 800 rpm, 0.61 kg/h fuel consumption - Sound pressure level: 96.8 dB(A) - Chain brake mean braking time: 0.05 s - Vibration: 4.3 m/s (front), 3.7 m/s (rear)

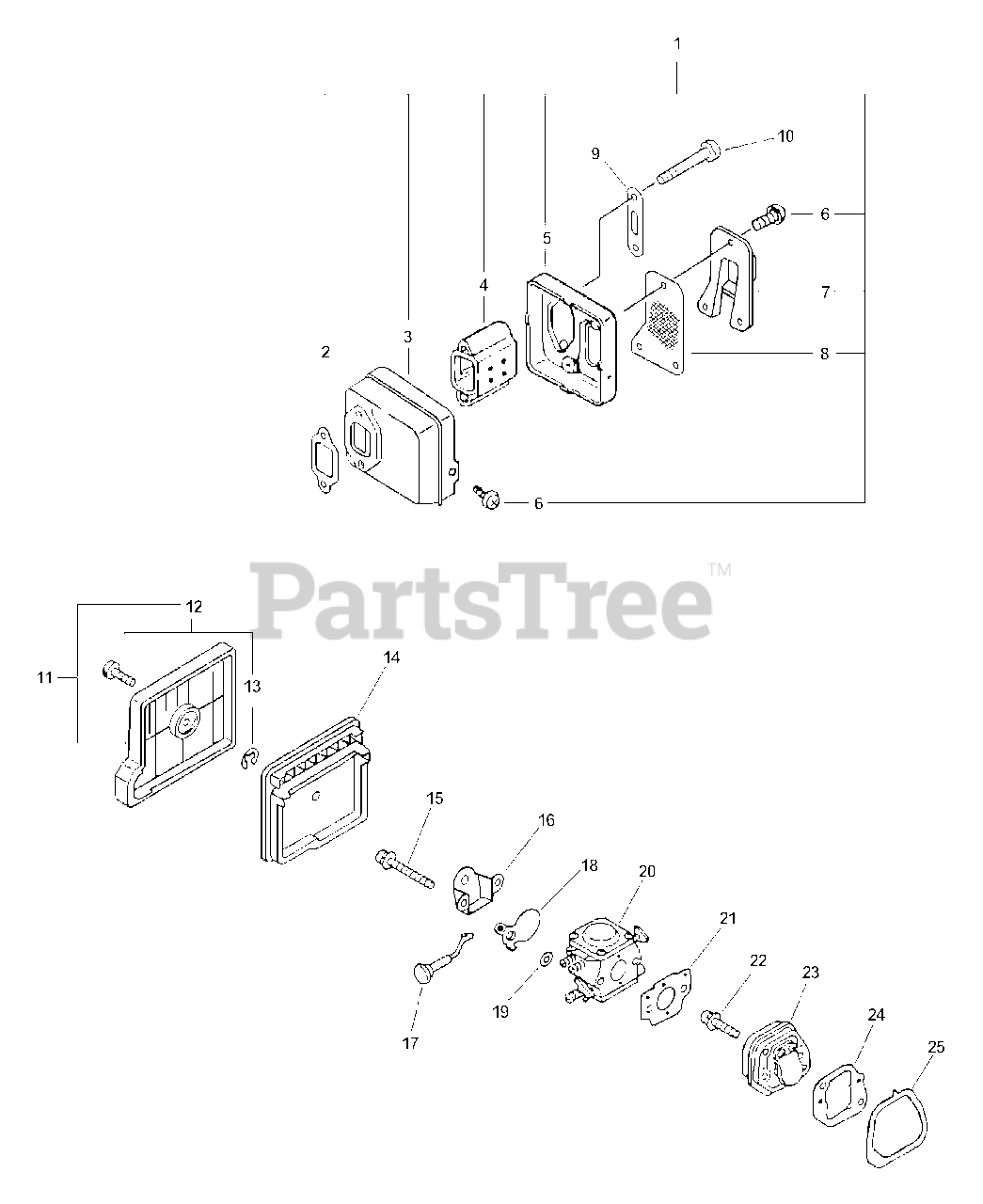

Intake, Exhaust Parts Diagram

  • Title

1

Echo 14580335532

MUFFLER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-8; S/N 001001 & UP

$

$

Not available

2

Echo 14551013931

GASKET, MUFFLER

Note: S/N 001001 & UP

$2.49

$

In Stock, Qty 20+

0

3

Echo 14585813931

MUFFLER

Note: S/N 001001 & UP

$

$

Not available

4

Echo 14585913930

SILENCER

Note: S/N: 001001 - 999999

$7.49

$

Usually ships in 2-4 days

0

5

Echo 14586135530

COVER, MUFFLER
(Superseded to Discontinued)

Note: S/N 001001 & UP

$

$

Not available

6

Echo 90025004008

SCREW TAPPING 4×8

Note: S/N 001001 & UP

$0.99

$

Usually ships in 2-4 days

0

7

Echo 14587635530

COVER, MUFFLER
(Superseded to Discontinued)

Note: S/N 001001 & UP

$

$

Not available

8

Echo 14586213931

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

Note: S/N 001001 & UP

$

$

Not available

9

Echo 14564213930

PLATE, EYE

Note: S/N 001001 & UP

$2.49

$

Usually ships in 2-4 days

0

10

Echo 10102313930

BOLT 6 MM

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 7

0

11

Echo 13030239136

COVER ASSY, AIR FILTER

Note: Includes ITEMS 12-13

$21.99

$

In Stock, Qty 11

0

12

Echo 13040613933

THUMBSCREW

Note: INCLUDES ITEMS 13

$4.99

$

In Stock, Qty 5

0

13

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

14

Echo 13031039131

FILTER, AIR
(Superseded to 13031039132)

$13.99

$

In Stock, Qty 20+

0

15

Echo 90023805045

SCREW 5×45

$0.99

$

In Stock, Qty 15

0

16

Echo 12901139130

PLATE, PREVENT

$6.49

$

In Stock, only 2 left!

0

17

Echo 17851039230

ROD, CHOKE

$6.99

$

In Stock, Qty 6

0

18

Echo 17851539130

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 8

0

19

Echo 17851603930

WASHER 5.5×8×0.8
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

20

Echo 12300060131

CARBURETOR - WT-385A

Note: TYPE 1 - S/N 001001-056483

$93.99

$

In Stock, Qty 5

0

20

Echo 12300139132

CARBURETOR - WT-402A
(Superseded to 12300139133)

Note: TYPE 1 - S/N 056484 & UP, TYPE 1E - S/N 001001 & UP

$86.99

$

In Stock, Qty 20+

0

21

Echo 13001639130

GASKET, INTAKE
(Superseded to V103000020)

Note: S/N 001001 & UP

$1.49

$

In Stock, Qty 20+

0

22

Echo 90025005018

SCREW 5×18

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 7

0

23

Echo 13000039131

INSULATOR KIT
(Superseded to P021000010)

Note: S/N 001001 & UP

$24.99

$

In Stock, only 2 left!

0

24

Echo 13001039130

GASKET, INTAKE
(Superseded to V103000120)

Note: S/N 001001 & UP

$1.99

$

In Stock, Qty 20+

0

25

Echo 13001239131

SEAL, INTAKE
(Superseded to 13001239132)

Note: S/N 001001 & UP

$3.49

$

In Stock, Qty 20+

0
