CS-3000 - Echo Chainsaw (Type 1E) (SN: 00001001 - 99999999) Clutch & Guide Bar Parts Diagram

Chainsaw (Type 1E)

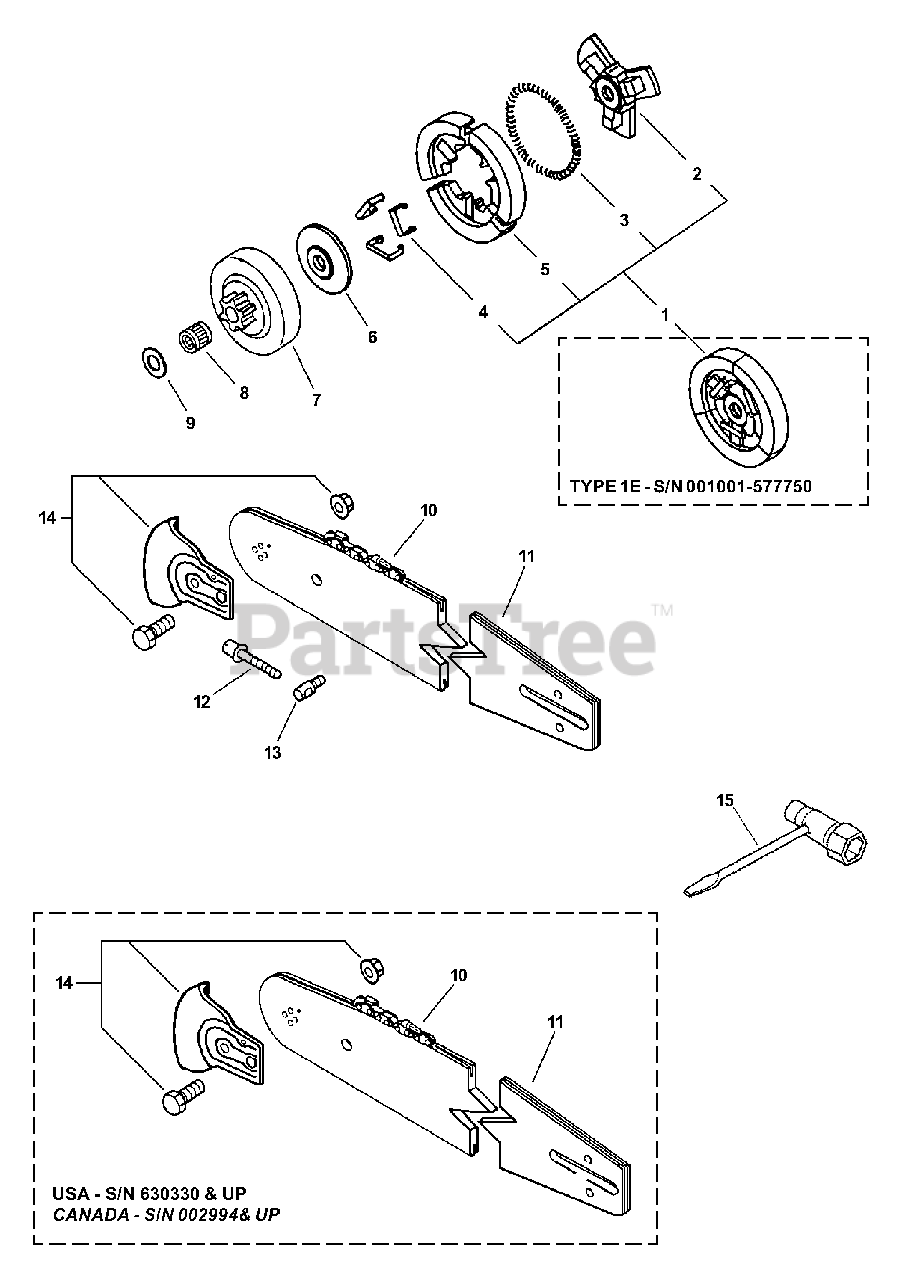

Clutch & Guide Bar Parts Diagram

  • Title

1

Echo P021000260

CLUTCH ASSY
(Superseded to P021005900)

Note: S/N 001001-577750

$44.99

$

In Stock, only 2 left!

0

1

Echo A056000010

CLUTCH ASSY

Note: INCLUDES ITEMS 2-5; S/N 577751 & UP

$59.99

$

In Stock, only 2 left!

0

2

Echo A552000000

HUB, CLUTCH

Note: S/N 577751 & UP

$15.99

$

Usually ships in 2-4 days

0

3

Echo 17501839430

SPRING, CLUTCH

Note: S/N 577751 & UP

$3.49

$

In Stock, only 3 left!

0

4

Echo 17502259530

CLIP, SPRING

Note: S/N 577751 & UP

$3.99

$

In Stock, Qty 11

0

5

Echo A555000000

SHOE, CLUTCH
(Superseded to P021000270)

Note: S/N 577751-665925; S/N 577751 & UP

$38.99

$

In Stock, only 1 left!

0

5

Echo P021000270

CLUTCH SHOE SET

Note: S/N 665926 & UP; S/N 577751 & UP

$38.99

$

In Stock, only 1 left!

0

6

Echo 17501939430

PLATE, CLUTCH

Note: S/N 001001 & UP

$8.99

$

In Stock, Qty 19

0

7

Echo 17500539133

DRUM, CLUTCH

Note: S/N 001001 & UP

$22.99

$

In Stock, Qty 20+

0

8

Echo 17501235630

BEARING, NEEDLE

Note: S/N 001001 & UP

$14.99

$

In Stock, Qty 20+

0

9

Echo 17501439131

WASHER

Note: S/N 001001 & UP

$2.99

$

In Stock, Qty 20+

0

10

Echo 91VG45CQ

SAW CHAIN - 12" (30cm)
(Superseded to 91PX45CQ)

Note: S/N 001001 & UP

$23.99

$

In Stock, only 1 left!

0

10

Echo 91VG52CQ

SAW CHAIN - 14" (35cm)
(Superseded to 91PX52CQ)

Note: S/N 001001 & UP

$25.99

$

In Stock, Qty 20+

0

10

Echo 91VG57CQ

SAW CHAIN - 16" (40cm)

Note: S/N 001001 & UP

$25.99

$

In Stock, Qty 12

0

11

Echo 12A0CD3745

GUIDE BAR - 12" (30cm)
(Superseded to 12A0CD3745C)

Note: S/N 001001-630329,CANADA - S/N 001001-002993GAUGE: .050"

$37.99

$

In Stock, Qty 20+

0

11

Echo 14A0CD3752

GUIDE BAR - 14" (35cm)
(Superseded to 14A0CD3752C)

Note: S/N 001001-630329,CANADA - S/N 001001-002993GAUGE: .050"

$46.99

$

In Stock, Qty 20+

0

11

Echo 16A0CD3757

GUIDE BAR - 16" (40cm)

Note: S/N 001001-630329,CANADA - S/N 001001-002993

$50.99

$

In Stock, Qty 20+

0

12

Echo 43301639131

SCREW, TENSIONER

Note: S/N 001001-630329,CANADA - S/N 001001-002993

$4.99

$

In Stock, only 2 left!

0

13

Echo 43301403931

TENSIONER, CHAIN

Note: S/N 001001-630329,CANADA - S/N 001001-002993

$5.49

$

In Stock, only 3 left!

0

11

Echo 12A0ZD3745

GUIDE BAR - 12" (30cm) Intenz

Note: S/N 630330 & UP, CANADA - 002994 & UP

$

$

Not available

11

Echo 14A0ZD3752

GUIDE BAR - 14" (35cm) Intenz
(Superseded to 14A0ZD3752C)

Note: S/N 630330 & UP, CANADA - 002994 & UP

$42.99

$

In Stock, only 2 left!

0

11

Echo 16A0ZD3757

GUIDE BAR - 16" (40cm) Intenz
(Superseded to 16A0ZD3757C)

Note: S/N 630330 & UP, CANADA - 002994 & UP

$53.99

$

In Stock, only 2 left!

0

14

Echo 2894901

KICK GUARD KIT

Note: S/N 001001 & UP

$5.49

$

Usually ships in 2-4 days

0

15

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

Note: S/N 001001 & UP

$3.99

$

In Stock, Qty 18

0
