CS-301 - Echo Chainsaw (SN: 00001000 - 02001000) Crankshaft, Piston Parts Diagram

Chainsaw

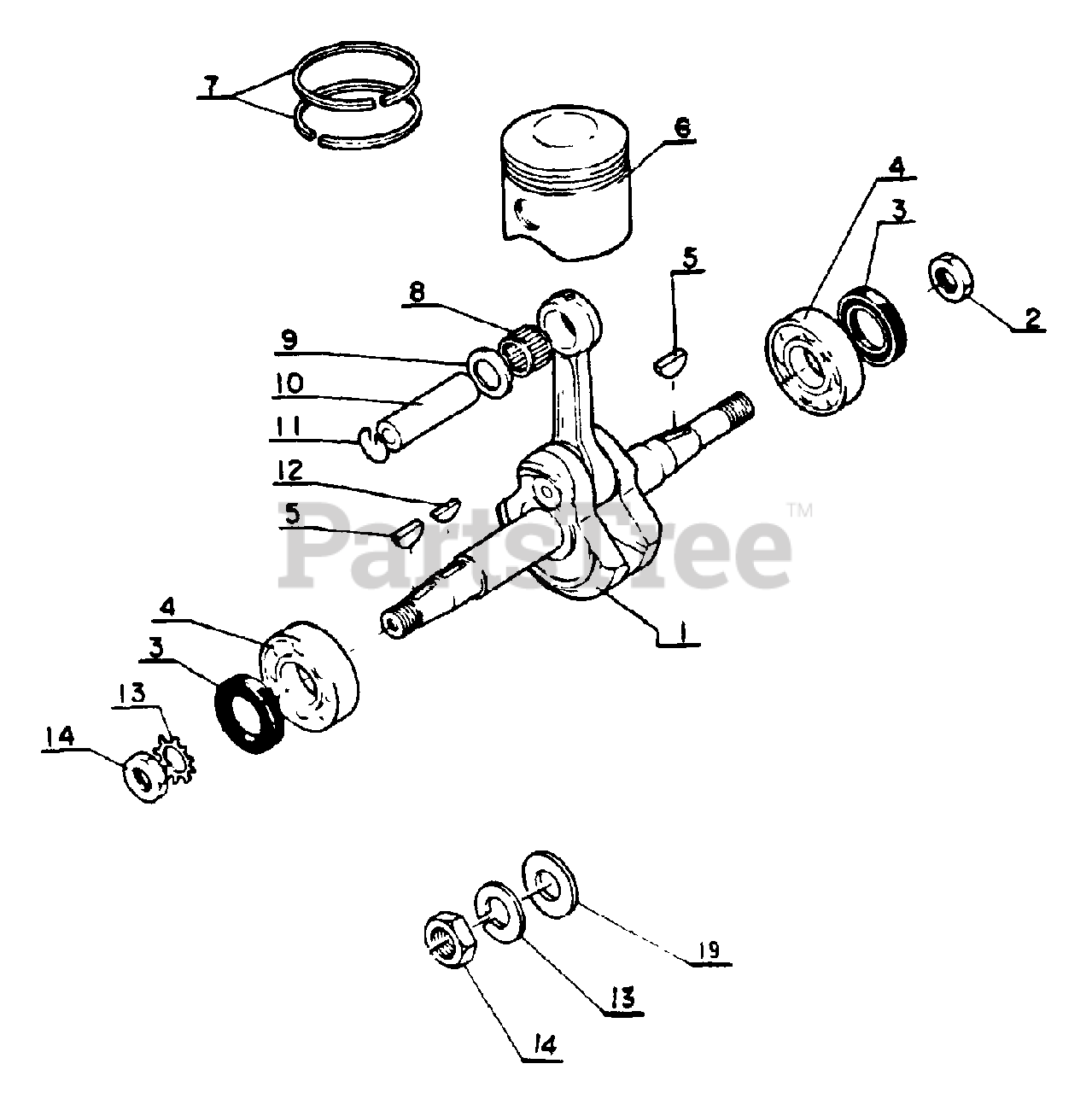

Crankshaft, Piston Parts Diagram

  • Title

1

Echo 10010000830

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$4.99

$

In Stock, only 1 left!

0

3

Echo 10021200830

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

4

Echo 90081006202

BEARING, BALL - 6202

$10.99

$

In Stock, only 2 left!

0

5

Echo 90032203014

KEY - 3X14
(Superseded to 90032303014)

$1.49

$

In Stock, only 4 left!

0

6

Echo 10001000830

PISTON
(Superseded to 10001001620)

$

$

Not available

7

Echo 10001101110

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

8

Echo 10001200310

BEARING, NEEDLE
(Superseded to 10001212330)

$12.99

$

In Stock, only 4 left!

0

9

------------------

SPACER, PISTON

Note: NOT USED ON THIS MODEL

$

$

Not available

10

Echo 10001300410

PIN, PISTON

$7.99

$

In Stock, only 1 left!

0

11

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 9

0

12

------------------

KEY

Note: Not used on this model

$

$

Not available

13

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

14

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 10

0

19

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0
