CS-302 - Echo Chainsaw Chain Brake Parts Diagram

Chainsaw

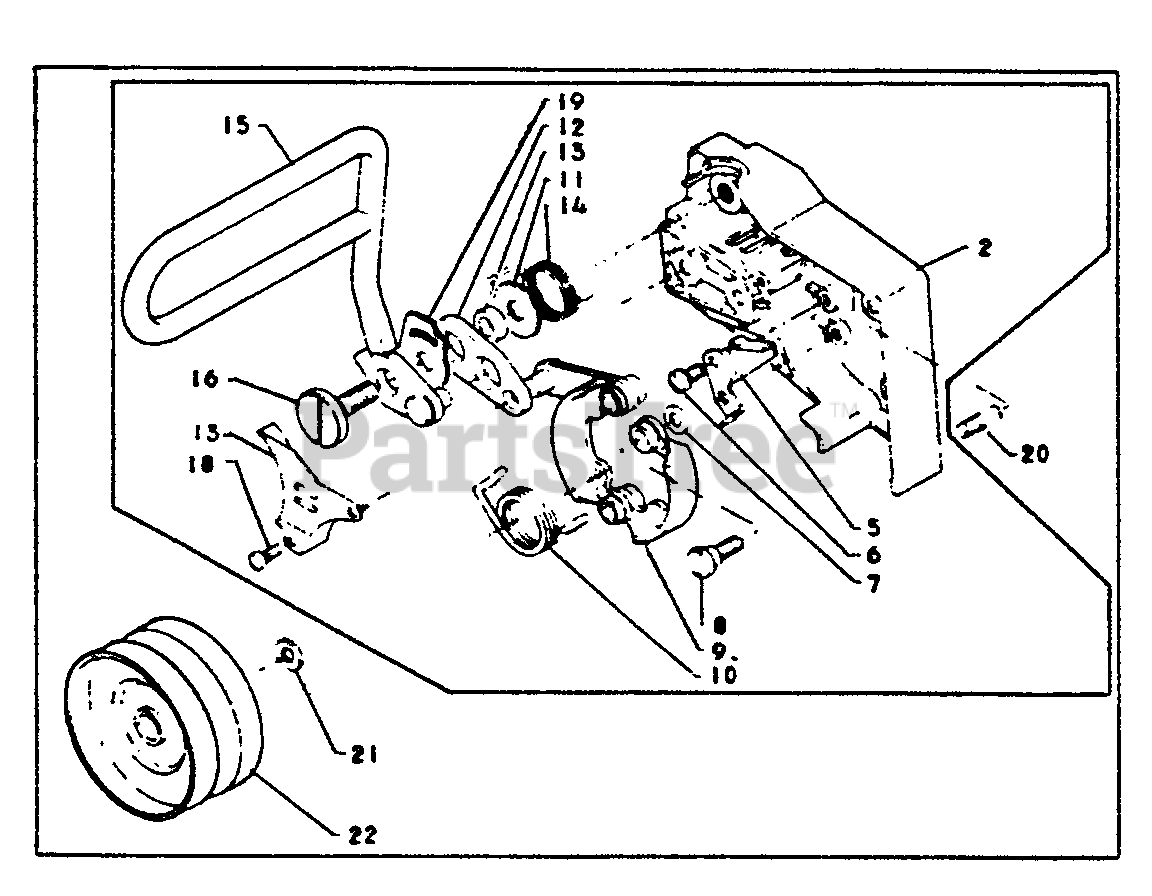

Chain Brake Parts Diagram

  • Title

Echo 43310203931

CHAIN BRAKE ASSY
(Superseded to Discontinued)

$

$

Not available

20

Echo 43313203930

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

21

Echo 17521403930

WASHER
(Superseded to Discontinued)

$

$

Not available

22

Echo 17520703930

DRUM, CLUTCH
(Superseded to 17520703931)

$

$

Not available

22

Echo 43310003931

CHAIN BRAKE ASSY
(Superseded to 43310013330)

$

$

Not available

2

Echo 43311003930

COVER, GUIDE BAR
(Superseded to Discontinued)

$

$

Not available

5

Echo 43313103930

GUIDE, BRAKE SHOE
(Superseded to Discontinued)

$

$

Not available

6

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

7

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo 43313003930

SCREW

$4.49

$

Usually ships in 2-4 days

0

9

Echo 43310103930

SHOE, BRAKE
(Superseded to 43310113330)

$

$

Not available

10

Echo 43312203930

SPRING
(Superseded to 43312213330)

$5.49

$

Usually ships in 2-4 days

0

11

Echo 43311503930

SPACER
(Superseded to Discontinued)

$

$

Not available

12

Echo 43311703930

CONNECTOR

$6.99

$

Usually ships in 2-4 days

0

13

Echo 43311503930

SPACER
(Superseded to Discontinued)

$

$

Not available

14

Echo 43311403930

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

15

Echo 43310503931

HANDLE, BRAKE
(Superseded to 43310503932)

$

$

Not available

16

Echo 43311303930

SCREW

$5.49

$

Usually ships in 2-4 days

0

17

Echo 43331003931

SEAL
(Superseded to Discontinued)

$

$

Not available

18

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

19

Echo 43313510530

WASHER
(Superseded to Discontinued)

$

$

Not available
