CS-302 - Echo Chainsaw Clutch Parts Diagram

Engine: air-cooled 2-cycle single-cyl, 30.1 cc (37 x 28 mm), CCW. Magneto: side-flywheel Champion CJ-8/NGK BM-6A. Carb: Walbro WA-5B. Fuel: 20:1, 0.33 L. Cooling: forced-air. Starting: recoil. Lubrication: auto-oiler. Chain oil: SAE 30 (summer), SAE 10 (winter). Chain: 1/4-in pitch, 0.050-in gauge, 30 cm. Guide bar: 0.050-in gauge. Weight: 4.5 kg dry.

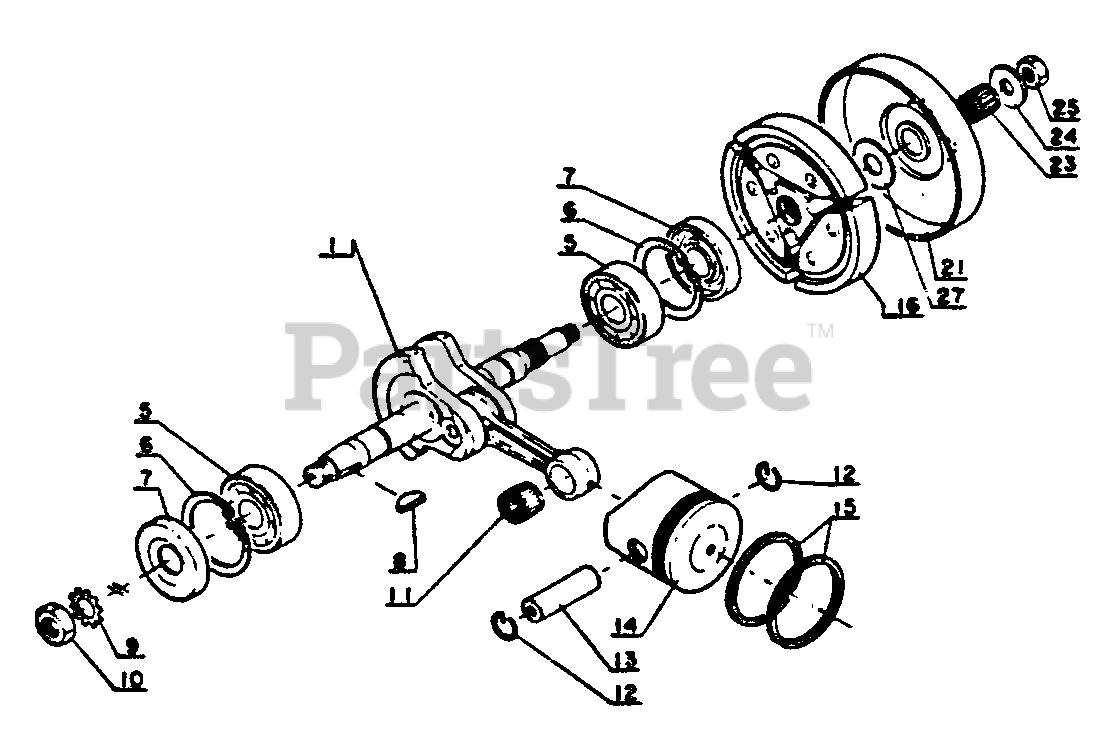

Clutch Parts Diagram

  • Title

1

Echo 10010003930

CRANKSHAFT
(Superseded to Discontinued)

$

$

Not available

5

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, Qty 20+

0

6

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, Qty 20+

0

7

Echo 10021303930

SEAL, OIL
(Superseded to 10021203930)

$6.49

$

In Stock, Qty 16

0

8

Echo 10013101620

KEY

$3.49

$

Usually ships in 2-4 days

0

9

Echo 90061100008

WASHER

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

11

Echo 10001200720

BEARING, NEEDLE
(Superseded to 10001216131)

$13.99

$

In Stock, only 2 left!

0

12

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

In Stock, Qty 20+

0

13

Echo 10001303930

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

14

Echo 10001003930

PISTON
(Superseded to 10000003930)

$

$

Not available

15

Echo 10001100310

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

16

Echo 17500003930

CLUTCH ASSY
(Superseded to 17500003931)

$63.99

$

Usually ships in 2-4 days

0

16

Echo 17501803930

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

16

Echo 17501703930

SHOE, CLUTCH
(Superseded to 17500003932)

$63.99

$

Usually ships in 2-4 days

0

16

Echo 17501603930

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

16

Echo 17501903930

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

16

Echo 90031430011

RIVET
(Superseded to Discontinued)

$

$

Not available

21

Echo 17500703930

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

21

Echo 17500511530

CASE, CLUTCH
(Superseded to 17500515830)

$

$

Not available

23

Echo 17501203930

BEARING, NEEDLE 8

$13.99

$

In Stock, only 2 left!

0

24

Echo 17501403930

WASHER, CLUTCH

$5.99

$

Usually ships in 2-4 days

0

24

Echo 17501411530

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

25

Echo 10013903930

LOCKNUT - 6
(Superseded to Discontinued)

$

$

Not available

27

Echo 17501503930

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available
