CS-302 - Echo Chainsaw Crankcase Parts Diagram

Engine: air-cooled 2-cycle single-cyl, 30.1 cc (37 x 28 mm), CCW. Magneto: side-flywheel Champion CJ-8/NGK BM-6A. Carb: Walbro WA-5B. Fuel: 20:1, 0.33 L. Cooling: forced-air. Starting: recoil. Lubrication: auto-oiler. Chain oil: SAE 30 (summer), SAE 10 (winter). Chain: 1/4-in pitch, 0.050-in gauge, 30 cm. Guide bar: 0.050-in gauge. Weight: 4.5 kg dry.

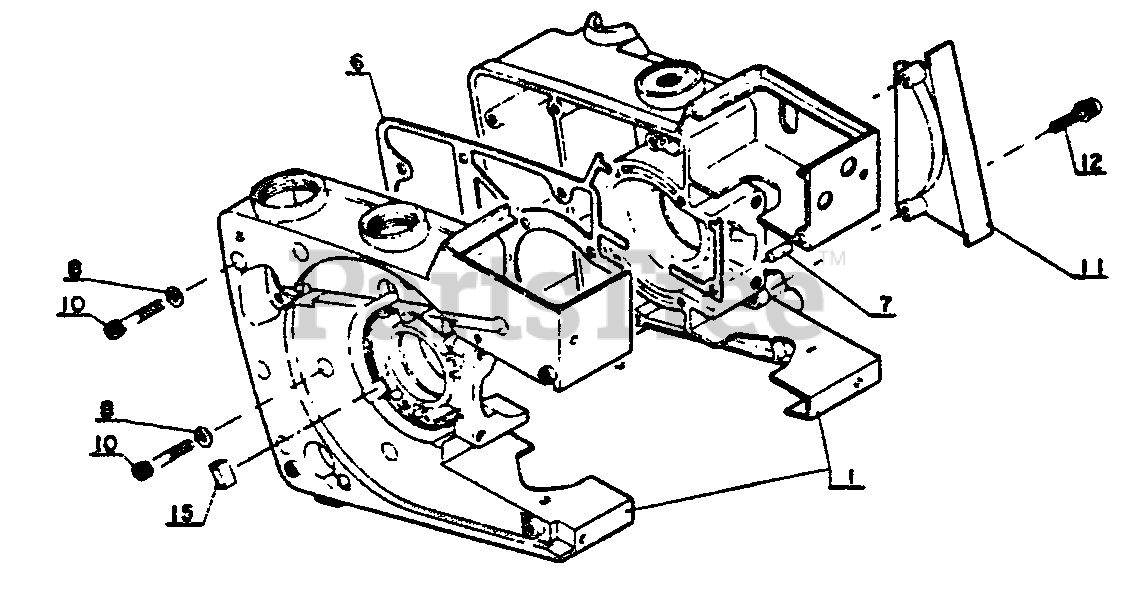

Crankcase Parts Diagram

  • Title

1

Echo 10020003931

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

7

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

6

Echo 10024203930

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

8

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

10

Echo 90010504025

SCREW - 4×20

$1.49

$

Usually ships in 2-4 days

0

11

Echo 10061803930

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

12

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

15

Echo 10061403930

PLUG
(Superseded to Discontinued)

$

$

Not available
