CS-302 - Echo Chainsaw Engine Parts Diagram

Engine: air-cooled 2-cycle single-cyl, 30.1 cc (37 x 28 mm), CCW. Magneto: side-flywheel Champion CJ-8/NGK BM-6A. Carb: Walbro WA-5B. Fuel: 20:1, 0.33 L. Cooling: forced-air. Starting: recoil. Lubrication: auto-oiler. Chain oil: SAE 30 (summer), SAE 10 (winter). Chain: 1/4-in pitch, 0.050-in gauge, 30 cm. Guide bar: 0.050-in gauge. Weight: 4.5 kg dry.

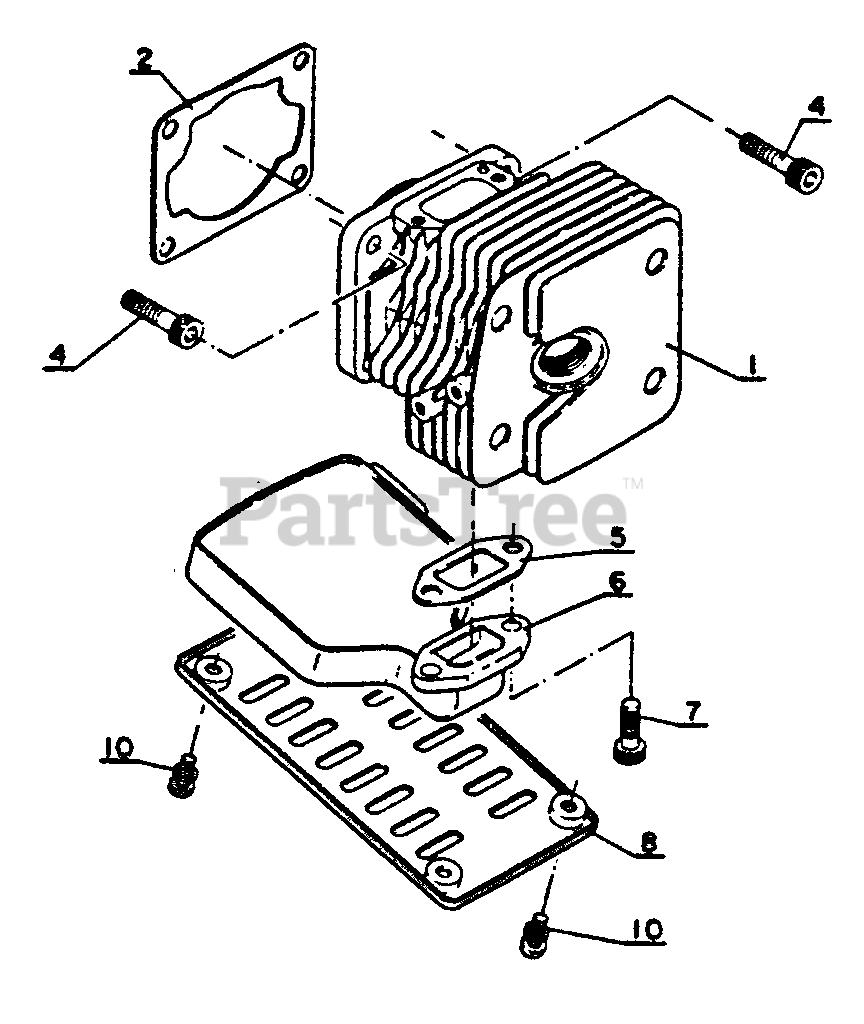

Engine Parts Diagram

  • Title

1

Echo 10101103930

CYLINDER
(Superseded to Discontinued)

$

$

Not available

2

Echo 10101003930

GASKET, CYLINDER
(Superseded to 10101003931)

$

$

Not available

4

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo 14551003930

GASKET, EXHAUST
(Superseded to 14551003931)

$

$

Not available

6

Echo 14561003931

MUFFLER
(Superseded to Discontinued)

$

$

Not available

7

Echo 90010505015

SCREW - 5×15

$1.49

$

Usually ships in 2-4 days

0

8

Echo 14562103930

COVER, MUFFLER

$19.99

$

Usually ships in 2-4 days

0

10

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0
