CS-302 - Echo Chainsaw Handles, Rear Parts Diagram

Engine: air-cooled 2-cycle single-cyl, 30.1 cc (37 x 28 mm), CCW. Magneto: side-flywheel Champion CJ-8/NGK BM-6A. Carb: Walbro WA-5B. Fuel: 20:1, 0.33 L. Cooling: forced-air. Starting: recoil. Lubrication: auto-oiler. Chain oil: SAE 30 (summer), SAE 10 (winter). Chain: 1/4-in pitch, 0.050-in gauge, 30 cm. Guide bar: 0.050-in gauge. Weight: 4.5 kg dry.

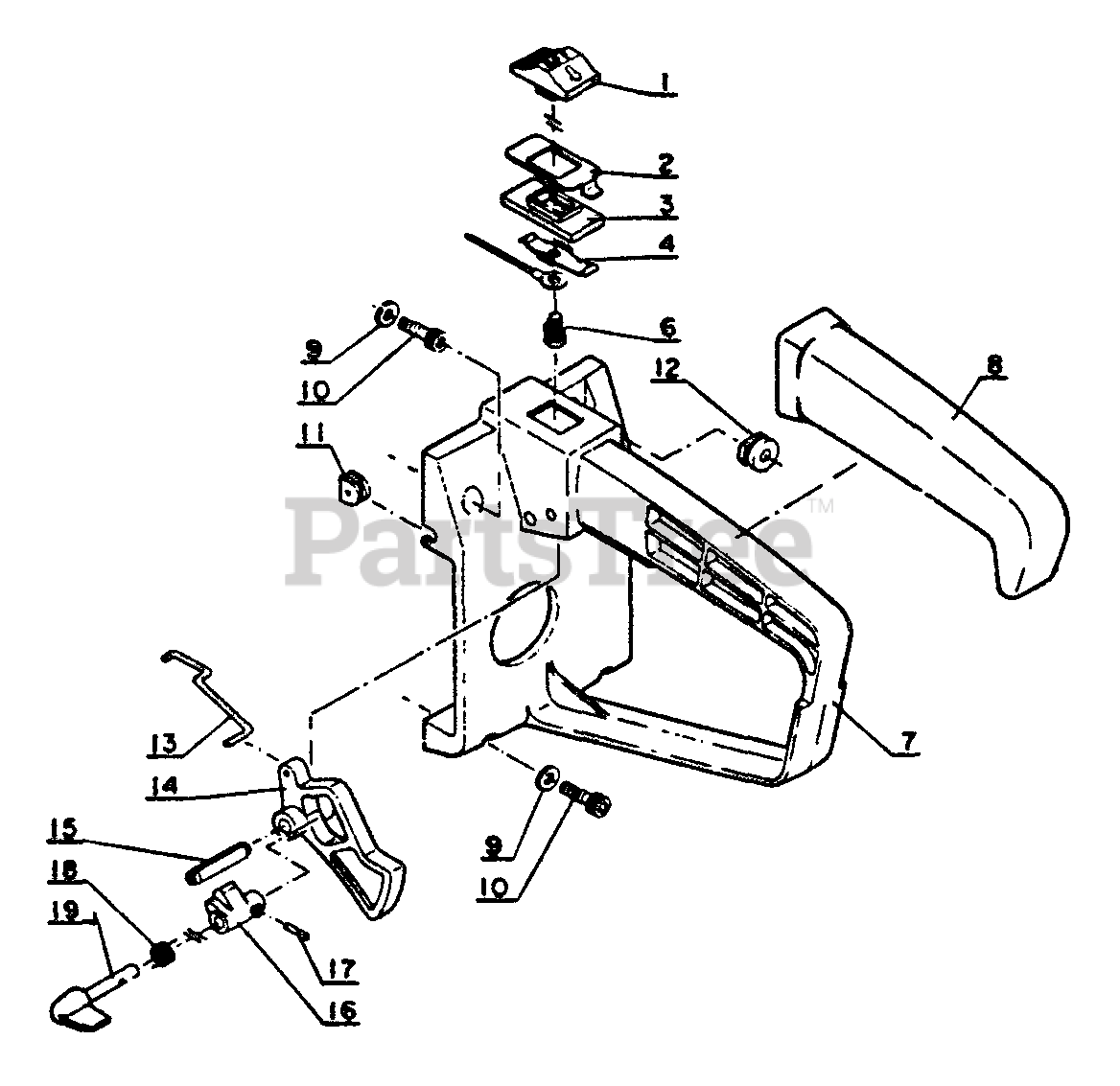

Handles, Rear Parts Diagram

  • Title

1

Echo 16341002830

SWITCH, IGNITION
(Superseded to Discontinued)

$

$

Not available

2

Echo 16341302830

PLATE, SWITCH

$1.99

$

Usually ships in 2-4 days

0

3

Echo 16341102830

GUIDE, SWITCH

$3.99

$

Usually ships in 2-4 days

0

4

Echo 16341200630

CONTACT, SWITCH

$1.99

$

Usually ships in 2-4 days

0

6

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

7

Echo 35101003930

HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

8

Echo 35101203930

GRIP
(Superseded to Discontinued)

$

$

Not available

9

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

10

Echo 90010504018

SCREW - 4×18
(Superseded to Discontinued)

$

$

Not available

11

Echo 15011403930

GROMMET

$1.49

$

Usually ships in 2-4 days

0

12

Echo 17881003930

GROMMET

$1.99

$

In Stock, only 1 left!

0

13

Echo 17801103930

ROD, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

14

Echo 17801003930

TRIGGER, THROTTLE

$

$

Not available

15

Echo 90034250025

PIN, SPRING Ø5×25 MM

$1.99

$

In Stock, Qty 8

0

16

Echo 17801203930

LOCKOUT, TRIGGER

$3.49

$

Usually ships in 2-4 days

0

17

Echo 90034016010

PIN, SPRING 16×10

$0.99

$

Usually ships in 2-4 days

0

18

Echo 17801303930

SPRING, THROTTLE LOCK
(Superseded to Discontinued)

$

$

Not available

19

Echo 17800803430

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available
