CS-302 - Echo Chainsaw Intake, Exhaust Parts Diagram

Engine: air-cooled 2-cycle single-cyl, 30.1 cc (37 x 28 mm), CCW. Magneto: side-flywheel Champion CJ-8/NGK BM-6A. Carb: Walbro WA-5B. Fuel: 20:1, 0.33 L. Cooling: forced-air. Starting: recoil. Lubrication: auto-oiler. Chain oil: SAE 30 (summer), SAE 10 (winter). Chain: 1/4-in pitch, 0.050-in gauge, 30 cm. Guide bar: 0.050-in gauge. Weight: 4.5 kg dry.

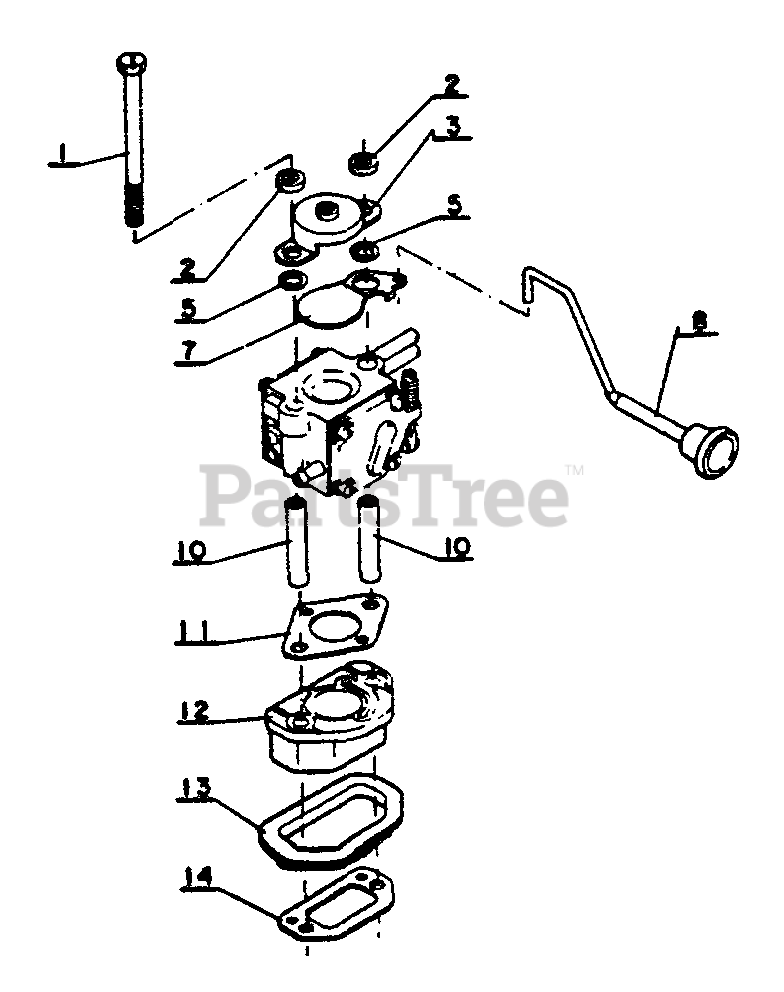

Intake, Exhaust Parts Diagram

  • Title

1

Echo 13002103930

BOLT

$1.99

$

In Stock, only 4 left!

0

2

Echo 13002903930

WASHER

$0.99

$

Usually ships in 2-4 days

0

3

Echo 13040503930

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

5

Echo 17851603930

WASHER 5.5×8×0.8
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

7

Echo 17851503930

SHUTTER, CHOKE

$3.49

$

Usually ships in 2-4 days

0

8

Echo 17851003932

ROD, CHOKE

$7.49

$

Usually ships in 2-4 days

0

10

Echo 13001903930

SPACER
(Superseded to Discontinued)

$

$

Not available

11

Echo 13001603930

GASKET, INTAKE
(Superseded to 13001603931)

$0.99

$

In Stock, Qty 6

0

12

Echo 13001703930

INSULATOR, INTAKE
(Superseded to 13001703931)

$

$

Not available

13

Echo 13001203930

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

14

Echo 13001003930

GASKET, INTAKE
(Superseded to 13001003931)

$0.99

$

In Stock, only 3 left!

0
