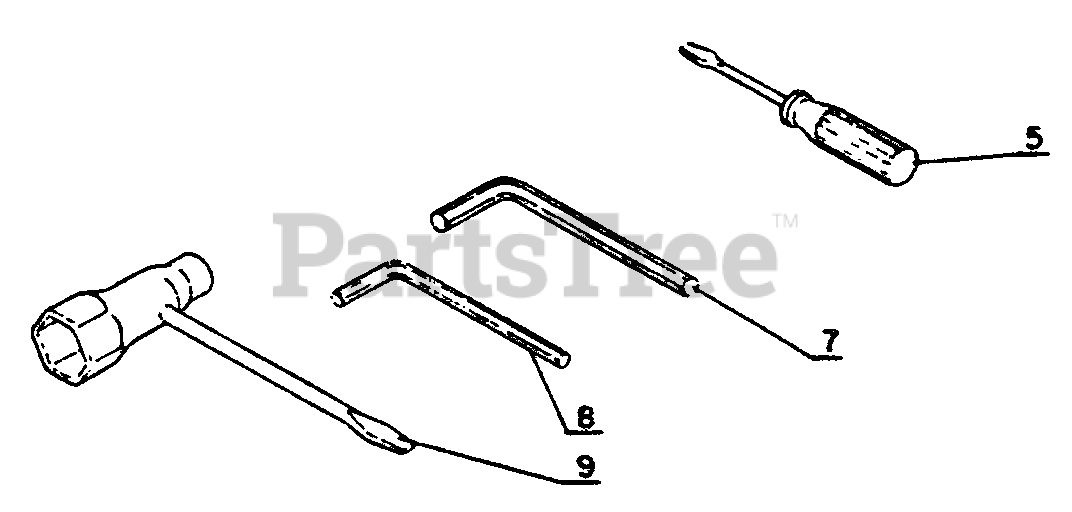

CS-302 - Echo Chainsaw Tools Parts Diagram

Engine: air-cooled 2-cycle single-cyl, 30.1 cc (37 x 28 mm), CCW. Magneto: side-flywheel Champion CJ-8/NGK BM-6A. Carb: Walbro WA-5B. Fuel: 20:1, 0.33 L. Cooling: forced-air. Starting: recoil. Lubrication: auto-oiler. Chain oil: SAE 30 (summer), SAE 10 (winter). Chain: 1/4-in pitch, 0.050-in gauge, 30 cm. Guide bar: 0.050-in gauge. Weight: 4.5 kg dry.
