CS-302 S - Echo Chainsaw (SN: 00000 - 17500) Cutting Attachment Parts Diagram

376 x 231 x 239 mm (14.8 x 9.1 x 9.4 in) | Air-cooled, 2-stroke, single-cylinder, 33.4 cc (2.0 cu in) engine | Counter-clockwise rotation from magneto side | Magneto: Champion CJ-8 or NGK BM-6A Walbro VWA-5B | Fuel: regular gasoline + 32:1 or 50:1 2-stroke oil | Fuel tank 0.334 L (11.8 fl oz) | Recoil starter | Automatic oiler, SAE 30 (summer) SAE 10 oil | Oil tank 0.20 L (6.8 fl oz) | Weight 4.5 kg (9.9 lb) dry | Guide bar 14 in (35 cm), gauge 0.050 in | Chain 91SG, 52 links, low-kick | Part no: echo Oregon 14g50k 32893, 16g50k 32894

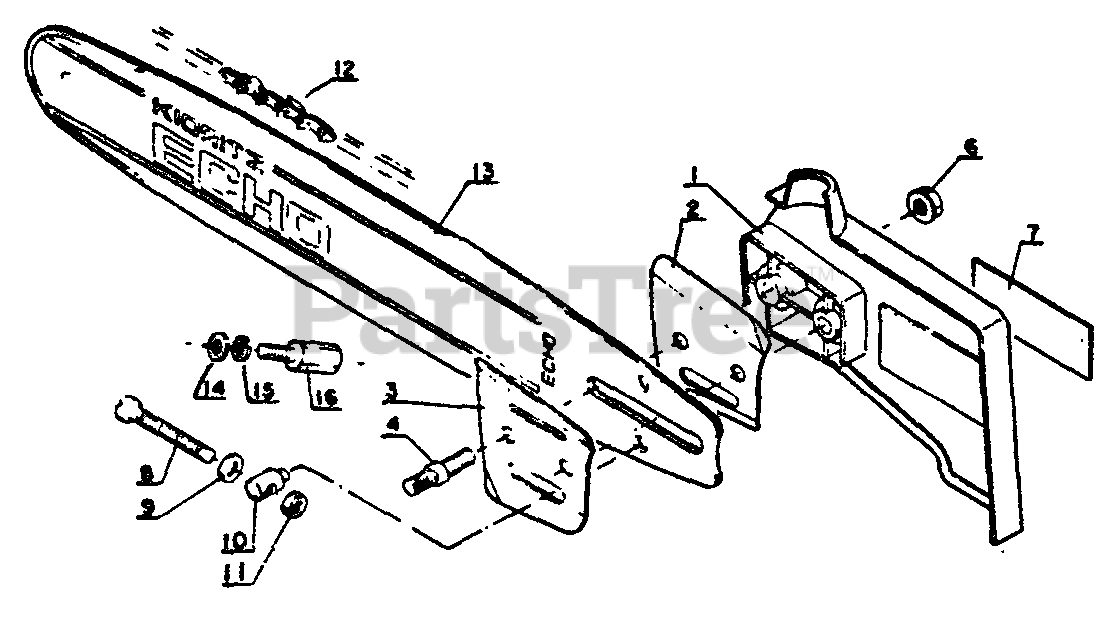

Cutting Attachment Parts Diagram

  • Title

1

Echo 43301011431

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

2

Echo 43301203930

PLATE, GUIDE - OUTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 43301303930

PLATE, GUIDE - INNER
(Superseded to Discontinued)

$

$

Not available

4

Echo 43301103930

STUD, GUIDE BAR
(Superseded to 43301103931)

$1.99

$

In Stock, Qty 20+

0

6

Echo 43301903931

NUT - 6 -- FLANGE
(Superseded to 43301903932)

$1.49

$

In Stock, Qty 20+

0

7

Echo 89002103931

LABEL - ECHO
(Superseded to 89011815130)

$1.99

$

In Stock, only 4 left!

0

8

Echo 43301602830

SCREW, ADJUSTER

$

$

Not available

9

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

10

Echo 43301403932

TENSIONER
(Superseded to 43301403931)

$5.99

$

In Stock, Qty 20+

0

11

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.99

$

In Stock, Qty 20+

0

------------------

SAW CHAIN

Note: See Chainsaw Accessories

$

$

Not available

13

GUIDE BAR

Note: See Chainsaw Accessories

$

$

Not available

14

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 6

0

16

Echo 43302610530

CATCHER, CHAIN
(Superseded to 43302603930)

$

$

Not available
