CS-302 S - Echo Chainsaw (SN: 00000 - 17500) External Engine, Exhaust Parts Diagram

376 x 231 x 239 mm (14.8 x 9.1 x 9.4 in) | Air-cooled, 2-stroke, single-cylinder, 33.4 cc (2.0 cu in) engine | Counter-clockwise rotation from magneto side | Magneto: Champion CJ-8 or NGK BM-6A Walbro VWA-5B | Fuel: regular gasoline + 32:1 or 50:1 2-stroke oil | Fuel tank 0.334 L (11.8 fl oz) | Recoil starter | Automatic oiler, SAE 30 (summer) SAE 10 oil | Oil tank 0.20 L (6.8 fl oz) | Weight 4.5 kg (9.9 lb) dry | Guide bar 14 in (35 cm), gauge 0.050 in | Chain 91SG, 52 links, low-kick | Part no: echo Oregon 14g50k 32893, 16g50k 32894

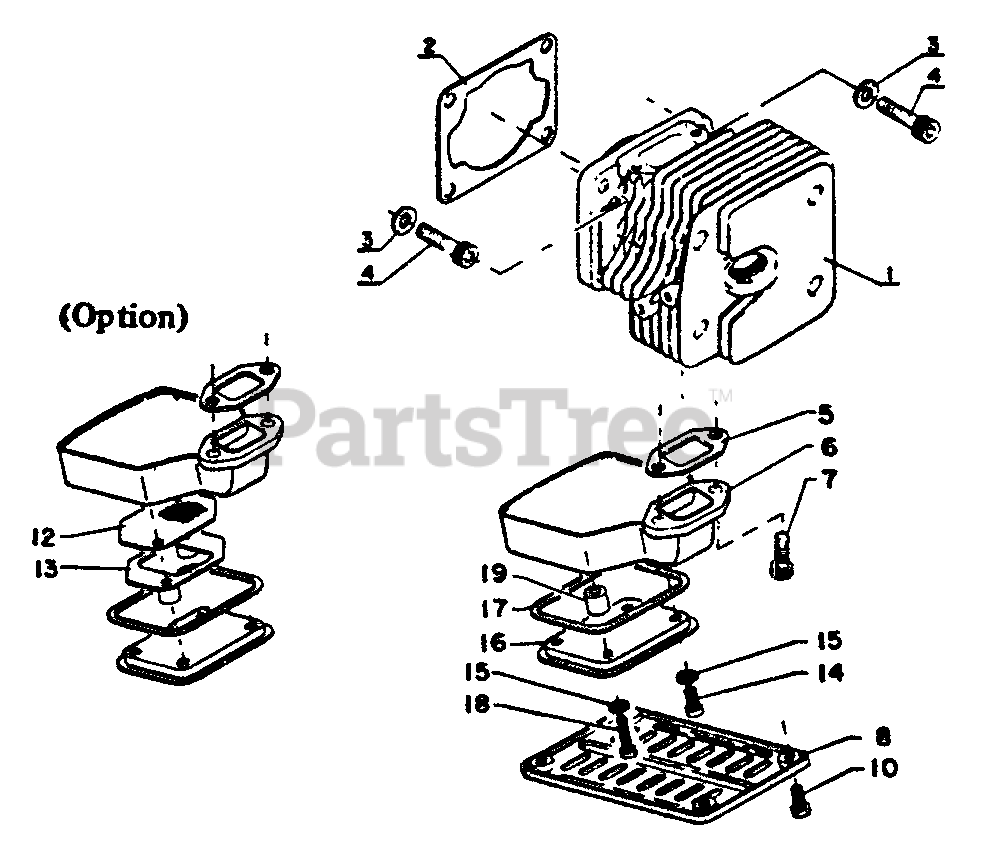

External Engine, Exhaust Parts Diagram

  • Title

1

Echo 10101113330

CYLINDER

$260.99

$

Usually ships in 2-4 days

0

2

Echo 10101013330

GASKET, CYLINDER
(Superseded to 10101013331)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

4

Echo 90010505020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo 14551003930

GASKET, EXHAUST
(Superseded to 14551003931)

$

$

Not available

6

Echo 14580603932

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

7

Echo 90010505015

SCREW - 5×15

$1.49

$

Usually ships in 2-4 days

0

8

Echo 14562103930

COVER, MUFFLER

$19.99

$

Usually ships in 2-4 days

0

10

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

14

Echo 900220-04006

SCREW 4×6

$0.99

$

In Stock, Qty 20+

0

15

Echo 90061000004

WASHER, LOCK 4 MM

$0.99

$

In Stock, only 1 left!

0

16

Echo 14586103930

COVER, MUFFLER
(Superseded to 14586103931)

$8.49

$

Usually ships in 2-4 days

0

17

Echo 14586603930

GASKET, EXHAUST
(Superseded to 14586603931)

$

$

Not available

18

Echo 90022004014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

19

Echo 14586503930

SPACER
(Superseded to Discontinued)

$

$

Not available

12

Echo 14586203930

SCREEN, SPARK ARRESTER

Note: OPTIONAL

$5.99

$

Usually ships in 2-4 days

0

13

Echo 14580903930

SCREEN RETAINER
(Superseded to 14590503931)

Note: OPTIONAL

$

$

Not available
