CS-302 S - Echo Chainsaw (SN: 17501 - 30500) Handles, Rear Parts Diagram

376 x 231 x 239 mm (14.8 x 9.1 x 9.4 in) | Air-cooled, 2-stroke, single-cylinder, 33.4 cc (2.0 cu in) engine | Counter-clockwise rotation from magneto side | Magneto: Champion CJ-8 or NGK BM-6A Walbro VWA-5B | Fuel: regular gasoline + 32:1 or 50:1 2-stroke oil | Fuel tank 0.334 L (11.8 fl oz) | Recoil starter | Automatic oiler, SAE 30 (summer) SAE 10 oil | Oil tank 0.20 L (6.8 fl oz) | Weight 4.5 kg (9.9 lb) dry | Guide bar 14 in (35 cm), gauge 0.050 in | Chain 91SG, 52 links, low-kick | Part no: echo Oregon 14g50k 32893, 16g50k 32894

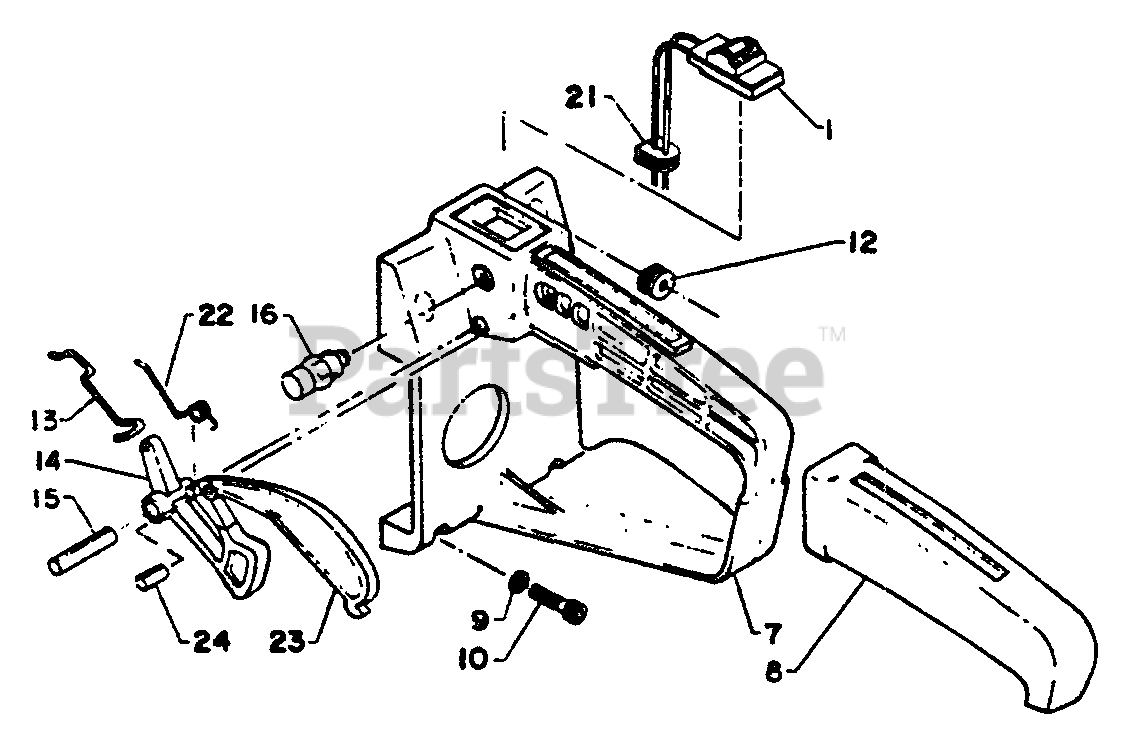

Handles, Rear Parts Diagram

  • Title

1

Echo 16340013330

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 35111013330

RIGHT HANDLE
(Superseded to Discontinued)

$

$

Not available

8

Echo 35111113330

RIGHT HANDLE RUBBER
(Superseded to Discontinued)

$

$

Not available

9

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

10

Echo 90010504018

SCREW - 4×18
(Superseded to Discontinued)

$

$

Not available

12

Echo 17881003930

GROMMET

$1.99

$

In Stock, only 1 left!

0

13

Echo 17801113330

ROD, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

14

Echo 17801013330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

15

Echo 90034050025

PIN, SPRING 5×25
(Superseded to Discontinued)

$

$

Not available

16

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 3 left!

0

21

Echo 15611402310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

22

Echo 17809113330

SPRING, LOCKOUT RETURN

$2.49

$

Usually ships in 2-4 days

0

23

Echo 17809013330

LOCKOUT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

24

Echo 90034040010

PIN, SPRING
(Superseded to Discontinued)

$

$

Not available
