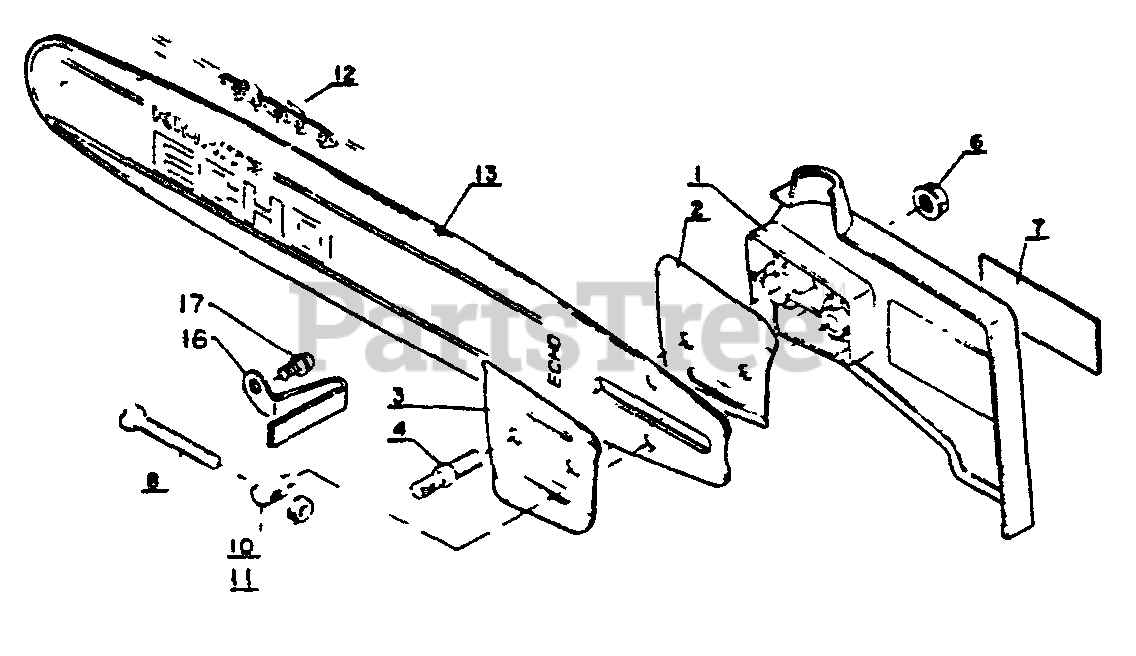

CS-302 S - Echo Chainsaw (SN: 30501 - 64670) Cutting Attachment Parts Diagram

Chainsaw

Cutting Attachment Parts Diagram

  • Title

1

Echo 43302111430

GUARD, SPROCKET

$

$

Not available

2

Echo 43301203930

PLATE, GUIDE - OUTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 43301303930

PLATE, GUIDE - INNER
(Superseded to Discontinued)

$

$

Not available

4

Echo 43301103930

STUD, GUIDE BAR
(Superseded to 43301103931)

$1.99

$

In Stock, Qty 20+

0

6

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

7

Echo 89011818331

LABEL - ECHO
(Superseded to 89011838130)

$

$

Not available

8

Echo 43301602830

SCREW, ADJUSTER

$

$

Not available

10

Echo 43301403932

TENSIONER
(Superseded to 43301403931)

$5.99

$

In Stock, Qty 5

0

11

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.99

$

In Stock, only 2 left!

0

12

UNKNOWN

$

$

Not available

13

UNKNOWN

$

$

Not available

16

Echo 43302603930

CHAIN CATCHER
(Superseded to Discontinued)

$

$

Not available

17

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0
