CS-302 S - Echo Chainsaw (SN: 30501 - 64670) Intake, Exhaust Parts Diagram

376 x 231 x 239 mm (14.8 x 9.1 x 9.4 in) | Air-cooled, 2-stroke, single-cylinder, 33.4 cc (2.0 cu in) engine | Counter-clockwise rotation from magneto side | Magneto: Champion CJ-8 or NGK BM-6A Walbro VWA-5B | Fuel: regular gasoline + 32:1 or 50:1 2-stroke oil | Fuel tank 0.334 L (11.8 fl oz) | Recoil starter | Automatic oiler, SAE 30 (summer) SAE 10 oil | Oil tank 0.20 L (6.8 fl oz) | Weight 4.5 kg (9.9 lb) dry | Guide bar 14 in (35 cm), gauge 0.050 in | Chain 91SG, 52 links, low-kick | Part no: echo Oregon 14g50k 32893, 16g50k 32894

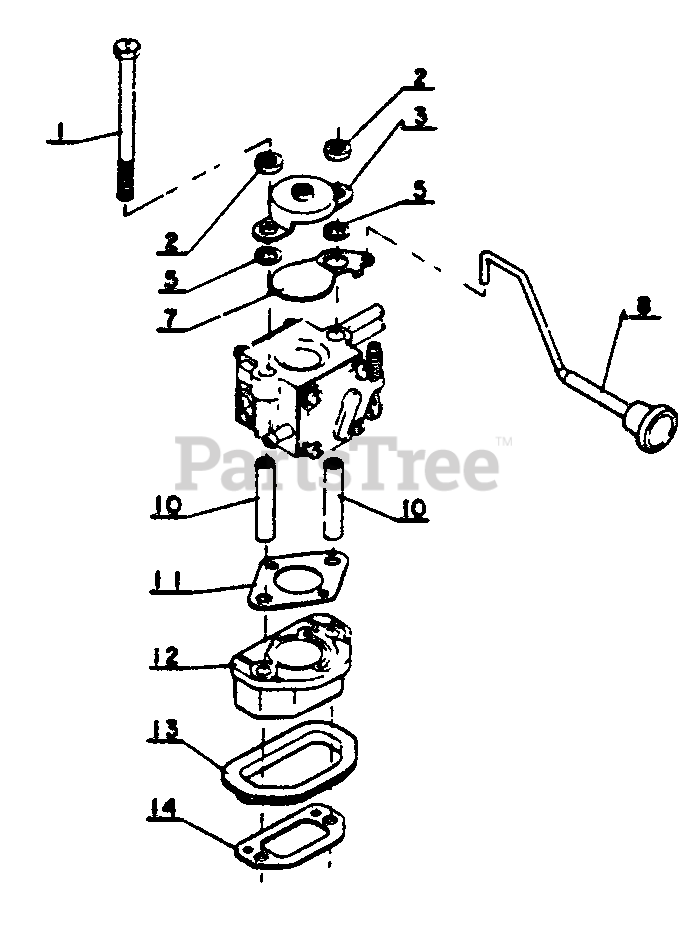

Intake, Exhaust Parts Diagram

  • Title

1

Echo 13002103930

BOLT

$1.99

$

In Stock, only 4 left!

0

2

Echo 13002903930

WASHER

$0.99

$

Usually ships in 2-4 days

0

3

Echo 13040503930

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

5

Echo 17851603930

WASHER 5.5×8×0.8
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

7

Echo 17851503930

SHUTTER, CHOKE

$3.49

$

Usually ships in 2-4 days

0

8

Echo 17851003932

ROD, CHOKE

$7.49

$

Usually ships in 2-4 days

0

10

Echo 13001903930

SPACER
(Superseded to Discontinued)

$

$

Not available

11

Echo 13001603931

GASKET, INTAKE
(Superseded to 13001603932)

$0.99

$

In Stock, Qty 6

0

12

Echo 13001703931

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

13

Echo 13001203930

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

14

Echo 13001003931

GASKET, INTAKE
(Superseded to 13001003932)

$0.99

$

In Stock, only 4 left!

0
