CS-302 S - Echo Chainsaw (SN: 64671 - 99999) Handles, Front Parts Diagram

376 x 231 x 239 mm (14.8 x 9.1 x 9.4 in) | Air-cooled, 2-stroke, single-cylinder, 33.4 cc (2.0 cu in) engine | Counter-clockwise rotation from magneto side | Magneto: Champion CJ-8 or NGK BM-6A Walbro VWA-5B | Fuel: regular gasoline + 32:1 or 50:1 2-stroke oil | Fuel tank 0.334 L (11.8 fl oz) | Recoil starter | Automatic oiler, SAE 30 (summer) SAE 10 oil | Oil tank 0.20 L (6.8 fl oz) | Weight 4.5 kg (9.9 lb) dry | Guide bar 14 in (35 cm), gauge 0.050 in | Chain 91SG, 52 links, low-kick | Part no: echo Oregon 14g50k 32893, 16g50k 32894

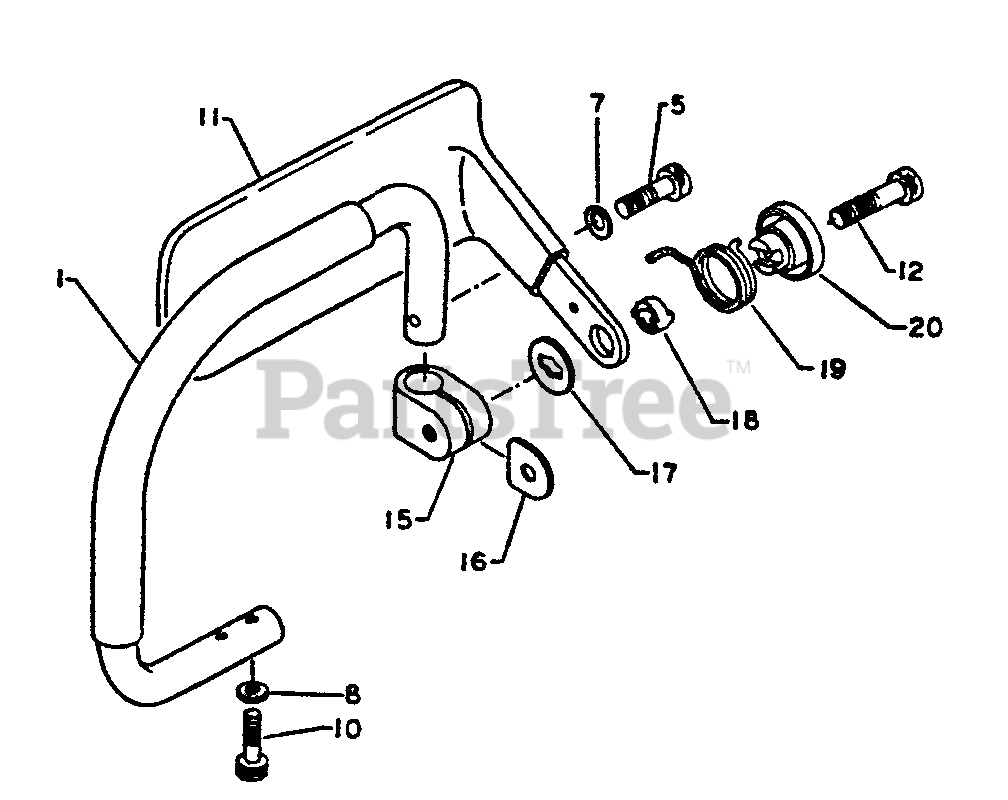

Handles, Front Parts Diagram

  • Title

1

Echo 35120513330

HANDLE, FRONT
(Superseded to 35140613330)

$

$

Not available

5

Echo 90010505020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

7

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

8

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

10

Echo 90010504018

SCREW - 4×18
(Superseded to Discontinued)

$

$

Not available

10

Echo 35180013332

HAND GUARD ASSY
(Superseded to Discontinued)

$

$

Not available

11

Echo 35180513331

GUARD

$

$

Not available

12

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

15

Echo 35183513330

HOLDER
(Superseded to Discontinued)

$

$

Not available

16

Echo 35184113330

SPACER

$0.99

$

Usually ships in 2-4 days

0

17

Echo 35182813330

WASHER
(Superseded to Discontinued)

$

$

Not available

18

Echo 35182713331

SPACER

$7.49

$

In Stock, only 1 left!

0

19

Echo 35183613330

SPRING

$3.49

$

Usually ships in 2-4 days

0

20

Echo 35183313330

RETAINER

$6.99

$

In Stock, only 1 left!

0
