CS-303 T - Echo Chainsaw (SN: C83829001001 - C83829999999) Handles, Throttle Control Parts Diagram

Chainsaw

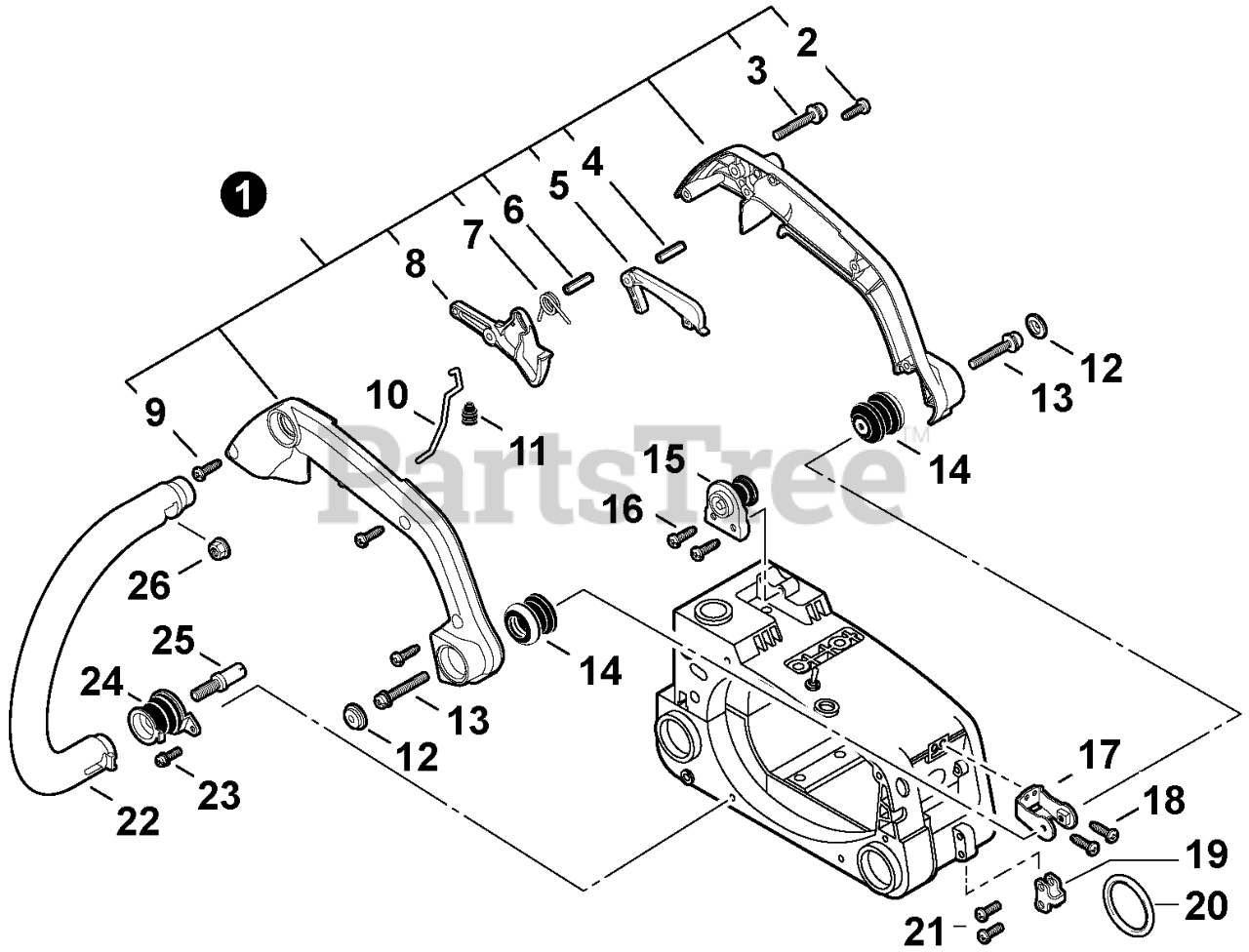

Handles, Throttle Control Parts Diagram

  • Title

1

Echo P021043740

HANDLE SET, REAR

Note: Includes Items 2-9

$41.99

$

Usually ships in 2-4 days

0

2

Echo 90023805014

SCREW 5x14

$0.99

$

In Stock, Qty 15

0

3

Echo 90023805035

SCREW 5x35

$0.99

$

In Stock, Qty 17

0

4

Echo 90034540020

PIN, SPRING 4x20

$1.99

$

In Stock, only 2 left!

0

5

Echo C460000450

LOCKOUT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

6

Echo 90034540025

PIN, SPRING 4x25 SUS

$1.99

$

In Stock, Qty 5

0

7

Echo 17804339131

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

8

Echo C450000810

TRIGGER, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

9

Echo 90025604016

SCREW 4x16

$0.99

$

In Stock, Qty 20+

0

10

Echo 17801139131

ROD, THROTTLE

$5.49

$

In Stock, Qty 6

0

11

Echo 17821039130

GROMMET, THROTTLE ROD

$2.49

$

In Stock, Qty 16

0

12

Echo 10091815130

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

13

Echo 90023804010

SCREW 4x10

$0.99

$

In Stock, Qty 20+

0

14

Echo 10092139131

CUSHION 4

$8.49

$

In Stock, Qty 18

0

15

Echo 10090739131

CUSHION 5

$23.99

$

In Stock, Qty 5

0

16

Echo 90025304014

SCREW 4x14

$0.99

$

In Stock, Qty 20+

0

17

Echo 35112339131

BRACKET, HANDLE

$30.99

$

Usually ships in 2-4 days

0

18

Echo 90025304014

SCREW 4x14

$0.99

$

In Stock, Qty 20+

0

19

Echo 30031439130

BRACKET, HARNESS

$2.49

$

Usually ships in 2-4 days

0

20

Echo 30101652730

RING, HARNESS 32

$1.49

$

Usually ships in 2-4 days

0

21

Echo 90023804016

SCREW 4x16
(Superseded to Discontinued)

$

$

Not available

22

Echo 35161039130

HANDLE, FRONT

$55.99

$

In Stock, Qty 6

0

23

Echo 90025604016

SCREW 4x16

$0.99

$

In Stock, Qty 20+

0

24

Echo 10091035630

CUSHION 5

$13.99

$

In Stock, Qty 18

0

25

Echo 10091533930

SCREW 5

$2.49

$

In Stock, Qty 18

0

26

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0
