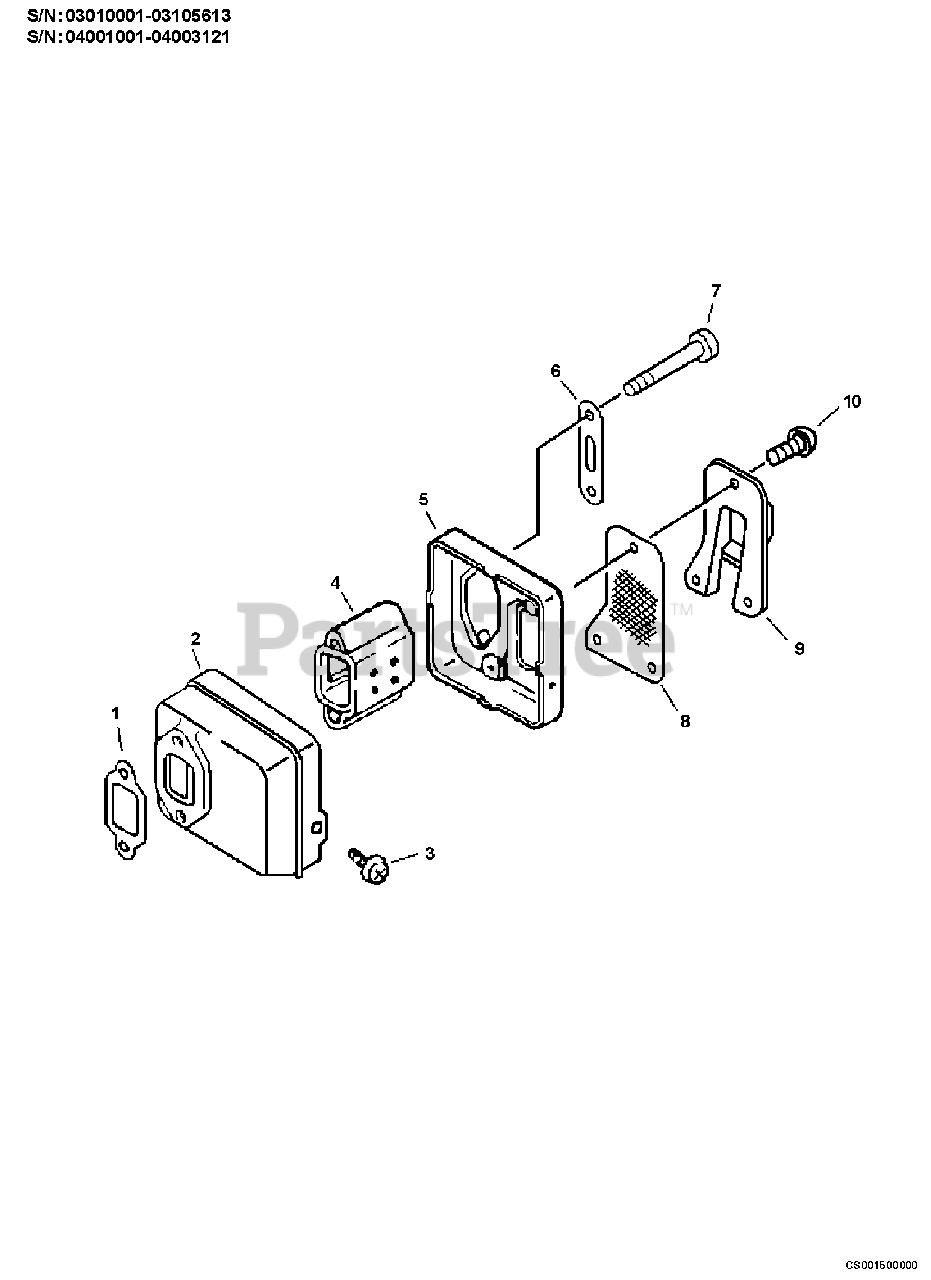

CS-305 - Echo Chainsaw (SN: 03001001 - 03999999) Exhaust S/N: 03010001-03105613 Parts Diagram

Engine family: 6ehxs.0334ra - Displacement: 30.1 cc - Emission compliance period: 300 h (EPA Phase 2 / California Tier 2) - Emission control: engine modification & catalyst (label on engine) - Guide bar / chain combinations (3/8" chain): 12" - 12a4cd3745 (Oregon 90SG 45) 14" - 14a4cd3752 (Oregon 90SG 52) 16" - 14a4cd3757 (Oregon 91VG 57).

Exhaust S/N: 03010001-03105613 Parts Diagram

  • Title

1

Echo 14551013931

GASKET, MUFFLER

$2.49

$

In Stock, Qty 20+

0

2

Echo 14585813931

MUFFLER

$

$

Not available

3

Echo 90025004008

SCREW TAPPING 4×8

$0.99

$

Usually ships in 2-4 days

0

4

Echo 14585913930

SILENCER

$7.49

$

Usually ships in 2-4 days

0

5

Echo 14586135530

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

6

Echo 14564213930

PLATE, EYE

$2.49

$

Usually ships in 2-4 days

0

7

Echo 10102313930

BOLT 6 MM

$0.99

$

In Stock, Qty 7

0

8

Echo 14586213931

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

9

Echo 14587635530

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

10

Echo 90025004008

SCREW TAPPING 4×8

$0.99

$

Usually ships in 2-4 days

0
