CS-305 - Echo Chainsaw (SN: 03001001 - 03999999) Intake Parts Diagram

Chainsaw

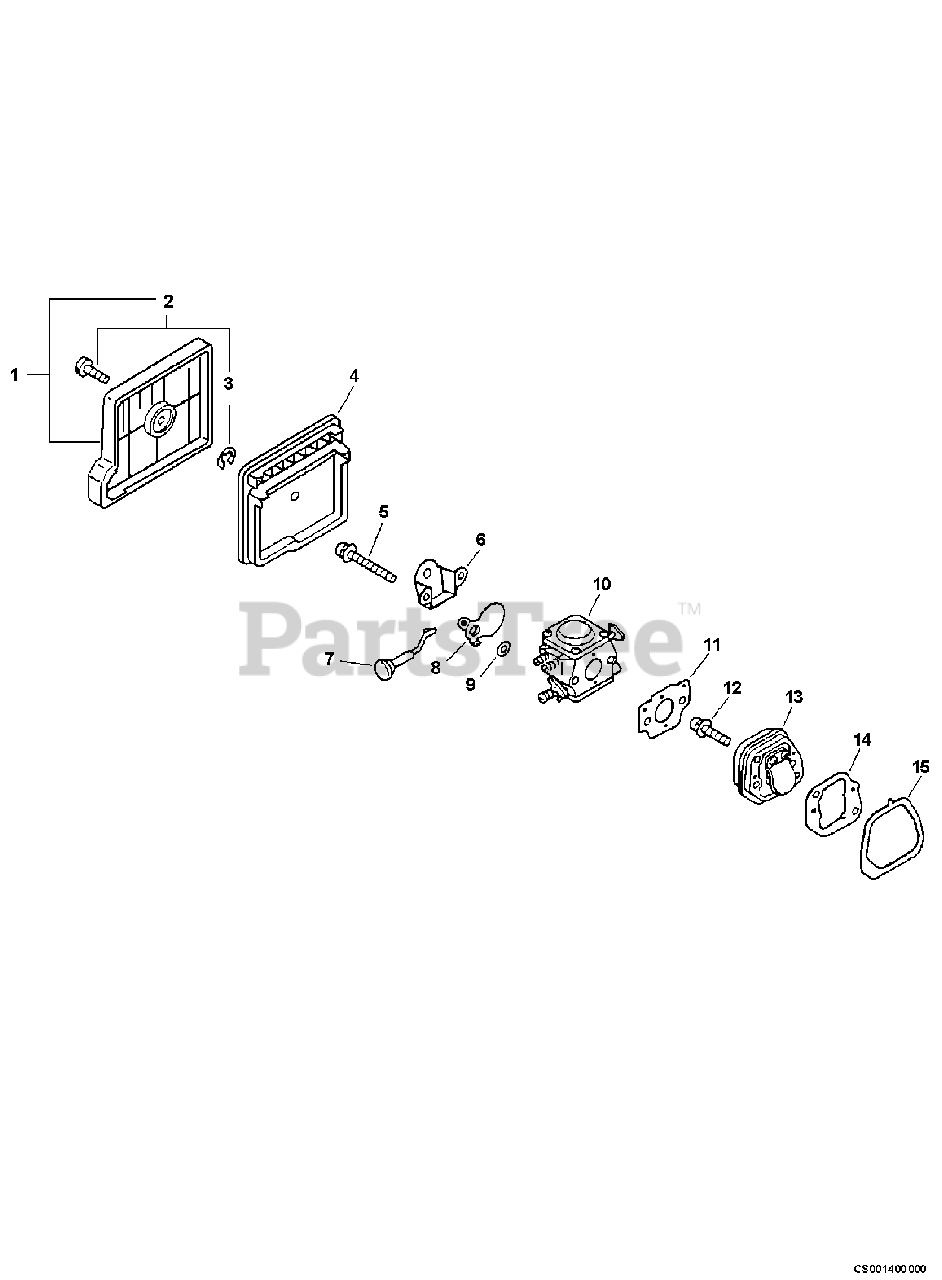

Intake Parts Diagram

  • Title

1

Echo 13030239136

COVER ASSY, AIR FILTER

Note: INCLUDES ITEMS 2-3

$21.99

$

In Stock, Qty 15

0

2

Echo 13040613933

THUMBSCREW

Note: INCLUDES ITEMS 3

$4.99

$

In Stock, only 3 left!

0

3

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

4

Echo 13031039132

FILTER, AIR

$13.99

$

In Stock, Qty 20+

0

5

Echo 90023805045

SCREW 5×45

$0.99

$

In Stock, Qty 10

0

6

Echo 12901139130

PLATE, PREVENT

$6.49

$

In Stock, only 2 left!

0

7

Echo 17851039230

ROD, CHOKE

$6.99

$

In Stock, Qty 5

0

8

Echo 17851539130

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 7

0

9

Echo 17851603930

WASHER 5.5×8×0.8
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 17

0

10

Echo A021000760

CARBURETOR - WT-589
(Superseded to A021000761)

$88.99

$

In Stock, Qty 20+

0

11

Echo V103000021

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

12

Echo 90025005018

SCREW 5×18

$0.99

$

In Stock, Qty 7

0

13

Echo P021000010

INSULATOR KIT

$24.99

$

In Stock, only 2 left!

0

14

Echo V103000120

GASKET, INTAKE

$1.99

$

In Stock, Qty 14

0

15

Echo 13001239131

SEAL, INTAKE
(Superseded to 13001239132)

$3.49

$

In Stock, Qty 20+

0
