CS-305 - Echo Chainsaw (SN: 04001001 - 04999999) Engine, Short Block, Engine Cover Parts Diagram

Engine family: 6ehxs.0334ra - Displacement: 30.1 cc - Emission compliance period: 300 h (EPA Phase 2 / California Tier 2) - Emission control: engine modification & catalyst (label on engine) - Guide bar / chain combinations (3/8" chain): 12" - 12a4cd3745 (Oregon 90SG 45) 14" - 14a4cd3752 (Oregon 90SG 52) 16" - 14a4cd3757 (Oregon 91VG 57).

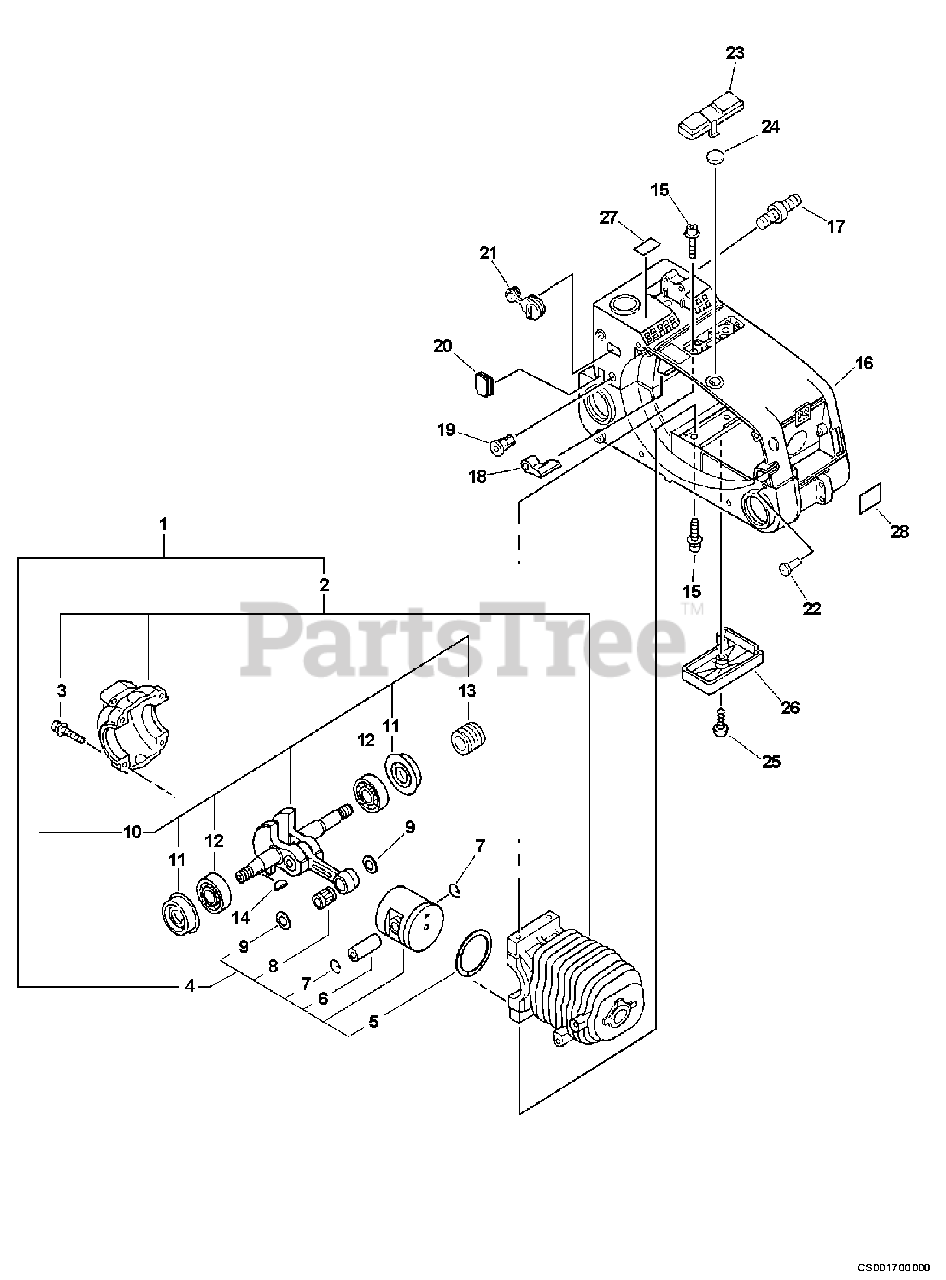

Engine, Short Block, Engine Cover Parts Diagram

  • Title

1

Echo SB1052

SHORT BLOCK

Note: INCLUDES ITEMS 2-13

$223.99

$

Usually ships in 2-4 days

0

2

Echo P021002021

CRANKCASE KIT
(Superseded to P021002022)

Note: Includes ITEM 3

$173.99

$

Usually ships in 2-4 days

0

3

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo 10000039130

PISTON KIT

Note: INCLUDES ITEMS 5-9

$98.99

$

Usually ships in 2-4 days

0

5

Echo 10001146430

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

6

Echo 10001315330

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 17501203930

BEARING, NEEDLE 8

$13.99

$

In Stock, only 2 left!

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, Qty 8

0

10

Echo P021007231

CRANKSHAFT ASSY
(Superseded to P021007232)

Note: Includes ITEMS 11-13

$

$

Not available

11

Echo V505000011

SEAL, OIL 12

$9.49

$

In Stock, Qty 17

0

12

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, Qty 20+

0

13

Echo V652000021

GEAR, WORM

$17.99

$

In Stock, Qty 7

0

14

Echo 10014239130

KEY, WOODRUFF

$3.49

$

In Stock, Qty 6

0

15

Echo 9111005016

BOLT 5×16

$0.99

$

In Stock, Qty 20+

0

16

Echo A190000021

COVER, ENGINE - GRAY
(Superseded to A190000022)

$112.99

$

In Stock, only 1 left!

0

17

Echo V224000031

BOLT, STUD 6

$1.99

$

In Stock, Qty 20+

0

18

Echo 13033639530

PLUG

$6.99

$

In Stock, only 2 left!

0

19

Echo 12902339131

GROMMET, IDLE

$2.49

$

In Stock, only 2 left!

0

20

Echo 10403439130

PLUG

$3.99

$

Usually ships in 2-4 days

0

21

Echo 17881039630

GROMMET, CHOKE

$6.99

$

In Stock, Qty 13

0

22

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 20+

0

23

Echo 10402939230

PLUG

$10.99

$

In Stock, only 2 left!

0

24

Echo 16391139130

PLUG

$2.49

$

In Stock, only 2 left!

0

25

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

26

Echo 10404439230

PLUG

$30.99

$

Usually ships in 2-4 days

0

27

Echo 89016739230

LABEL, PURGE PUMP

$4.99

$

Usually ships in 2-4 days

0

28

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 2 left!

0
