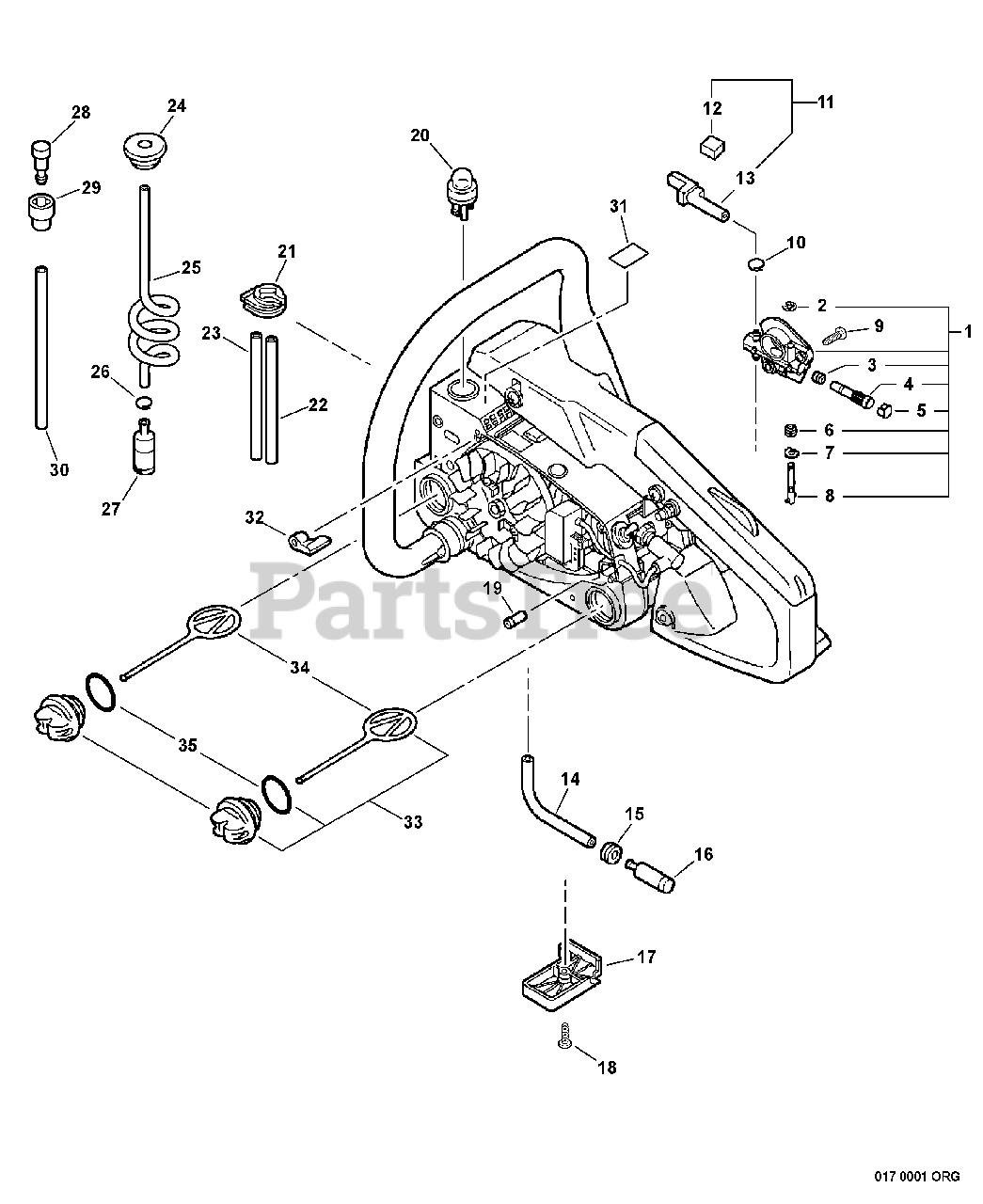

CS-306 - Echo Chainsaw (SN: 04001001 - 04999999) Fuel System, Auto Oiler S/N: 04002301 - 04999999 Parts Diagram

Engine displacement: 30.1 cc - Guide bars: 12" (0.043" ga) and 14" (0.043" ga) - Sawing chains: 12" micro-lite (0.043" ga, 0.375" pitch) and 14" micro-lite (0.043" ga, 0.375" pitch) - Chain brake: two variants (gray/orange, black) with adjustable tension - Fuel system: auto-oiler, oil and fuel lines, purge pump - Ignition: coil, spark plug (BPM-8Y) - Clutch: 5-piece set (hub, shoe, spring, plate, drum) - Handles: front and rear, with throttle lockout, cushion, and latch.

Fuel System, Auto Oiler S/N: 04002301 - 04999999 Parts Diagram

  • Title

1

Echo C022000010

AUTO-OILER ASSY

Note: Includes ITEMS 1-8

$53.99

$

In Stock, only 4 left!

0

2

Echo 125327-15130

E-RING

$0.99

$

In Stock, only 3 left!

0

3

Echo P022010660

SPRING

$2.49

$

In Stock, only 2 left!

0

4

Echo P022010650

PLUNGER ASSY

$14.99

$

In Stock, only 1 left!

0

5

Echo P022010640

CAP, PLUNGER

$0.99

$

In Stock, Qty 8

0

6

Echo P022010670

SPRING

$2.49

$

In Stock, only 4 left!

0

7

Echo 43702937330

WASHER

$3.49

$

In Stock, only 1 left!

0

8

Echo P022010680

ADJUSTER, OILER

$8.49

$

In Stock, only 2 left!

0

9

Echo 90023505012

SCREW 5×12

$0.99

$

In Stock, Qty 6

0

10

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

11

Echo 43720139131

PIPE KIT, OIL
(Superseded to P100002730)

Note: Includes ITEM 12

$14.99

$

In Stock, only 2 left!

0

12

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

13

Echo 43721139133

PIPE, OIL OUTLET
(Superseded to 43721139134)

$2.49

$

In Stock, Qty 12

0

14

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, Qty 20+

0

15

Echo V137000010

GROMMET

$

$

Not available

16

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

17

Echo 10404439130

COVER, BOTTOM

$10.99

$

Usually ships in 2-4 days

0

18

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

19

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 20+

0

20

Echo 12318139130

BULB, PURGE

$8.49

$

In Stock, Qty 20+

0

21

Echo 13275839131

BRACKET, BULB

$12.99

$

In Stock, only 1 left!

0

22

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

23

Echo 13271639130

PIPE, FUEL 2×4×42 CLEAR

Note: RePower BULK OPTION: 90018

$1.99

$

In Stock, Qty 20+

0

24

Echo 13211539130

GROMMET, FUEL
(Superseded to 13211539131)

$3.49

$

In Stock, Qty 20+

0

25

Echo 13201239130

PIPE, FUEL 3×6×160
(Superseded to 13201239131)

$7.99

$

In Stock, Qty 15

0

26

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

27

Echo 131205-07320

FILTER, FUEL

Note: Included In RePower KIT

$6.49

$

In Stock, Qty 20+

0

28

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

29

Echo 13132839130

HOLDER, VENT

$9.99

$

In Stock, Qty 7

0

30

Echo 13201004920

PIPE, FUEL 3×5×150 BLACK
(Superseded to 13201004921)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, only 4 left!

0

31

Echo 89016739230

LABEL, PURGE PUMP

$4.99

$

Usually ships in 2-4 days

0

32

Echo 13033639530

PLUG

$6.99

$

Usually ships in 2-4 days

0

33

Echo P021011590

CAP ASSY, OIL - BLACK

Note: INCLUDES ITEMS 34-35

$11.99

$

In Stock, only 2 left!

0

34

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

35

Echo 90072100025

O-RING 25

$2.99

$

In Stock, Qty 20+

0
