CS-306 - Echo Chainsaw (SN: C09413001001 - C09413999999) Exhaust Parts Diagram

Engine displacement: 30.1 cc - Guide bars: 12" (0.043" ga) and 14" (0.043" ga) - Sawing chains: 12" micro-lite (0.043" ga, 0.375" pitch) and 14" micro-lite (0.043" ga, 0.375" pitch) - Chain brake: two variants (gray/orange, black) with adjustable tension - Fuel system: auto-oiler, oil and fuel lines, purge pump - Ignition: coil, spark plug (BPM-8Y) - Clutch: 5-piece set (hub, shoe, spring, plate, drum) - Handles: front and rear, with throttle lockout, cushion, and latch.

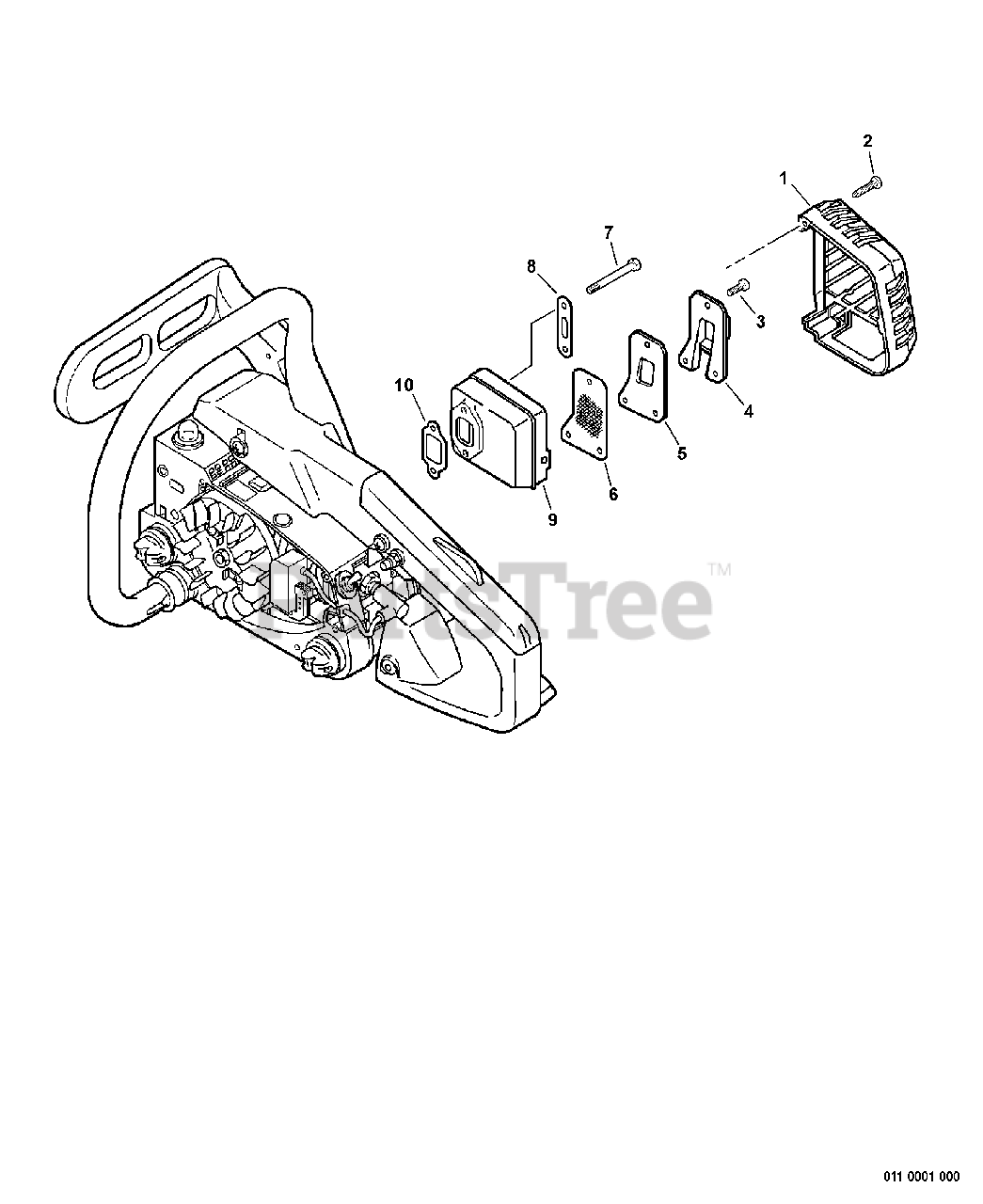

Exhaust Parts Diagram

  • Title

1

Echo A320000033

COVER, MUFFLER

$5.99

$

In Stock, Qty 19

0

2

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

3

Echo 9136704012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

4

Echo A303000010

COVER, MUFFLER

$4.49

$

Usually ships in 2-4 days

0

5

Echo V104000140

GASKET, EXHAUST

$2.49

$

In Stock, only 4 left!

0

6

Echo 14586213931

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

7

Echo 9110705045

BOLT, FLANGE HSH 5×45

$0.99

$

In Stock, Qty 14

0

8

Echo 14564213930

PLATE, EYE

$2.49

$

Usually ships in 2-4 days

0

9

Echo A300000120

MUFFLER

$91.99

$

Usually ships in 2-4 days

0

10

Echo 14551013931

GASKET, MUFFLER

$2.49

$

In Stock, Qty 20+

0
