CS-306 - Echo Chainsaw (SN: C09413001001 - C09413999999) Ignition Parts Diagram

Engine displacement: 30.1 cc - Guide bars: 12" (0.043" ga) and 14" (0.043" ga) - Sawing chains: 12" micro-lite (0.043" ga, 0.375" pitch) and 14" micro-lite (0.043" ga, 0.375" pitch) - Chain brake: two variants (gray/orange, black) with adjustable tension - Fuel system: auto-oiler, oil and fuel lines, purge pump - Ignition: coil, spark plug (BPM-8Y) - Clutch: 5-piece set (hub, shoe, spring, plate, drum) - Handles: front and rear, with throttle lockout, cushion, and latch.

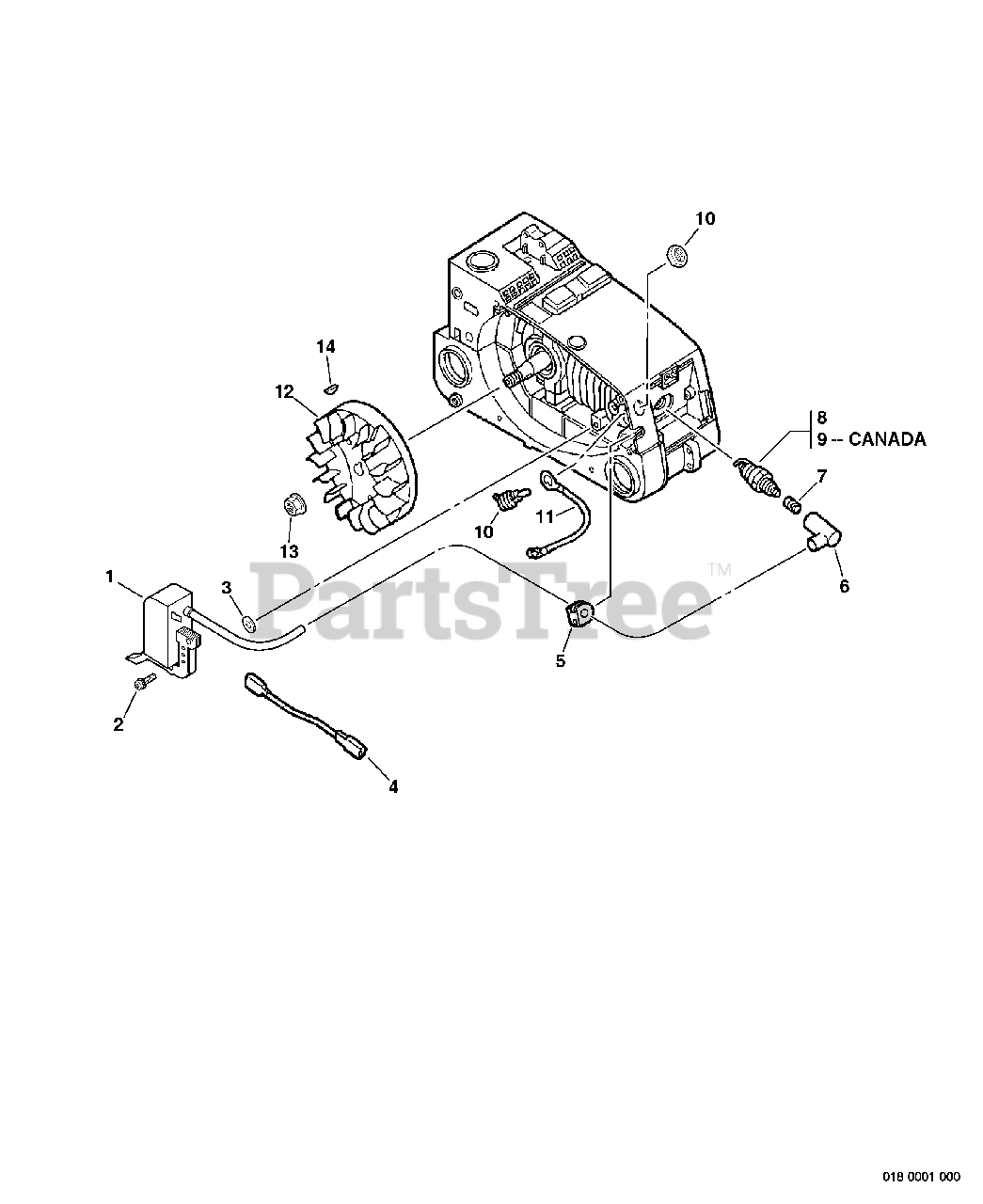

Ignition Parts Diagram

  • Title

1

Echo A411000150

COIL, IGNITION

$90.99

$

In Stock, Qty 5

0

2

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

3

Echo 15011716430

WASHER 5.2×12×3

$3.49

$

In Stock, Qty 20+

0

4

Echo 16201039431

LEAD - IGNITION L= 95

$3.49

$

In Stock, only 2 left!

0

5

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

6

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 6

0

7

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

8

Echo 15901019830

SPARK PLUG - BPM8Y

Note: US MODELS Included In RePower KIT

$3.99

$

In Stock, Qty 20+

0

9

Echo A425000000

SPARK PLUG - BPMR8Y

Note: CANADA MODELS Included In RePower KIT

$3.99

$

In Stock, Qty 20+

0

10

Echo 16340019830

SWITCH, ON-OFF

$11.99

$

In Stock, Qty 19

0

11

Echo 16201039131

LEAD - GROUND L= 100

$6.49

$

In Stock, Qty 6

0

12

Echo 15680039233

FLYWHEEL

$73.99

$

Usually ships in 2-4 days

0

13

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 4 left!

0

14

Echo 10014239130

KEY, WOODRUFF

$3.49

$

In Stock, Qty 5

0
