CS-315 - Echo Chainsaw (SN: 000001 - 058000) Exhaust Parts Diagram

Engine: air-cooled, 2-cycle, single-cylinder, 30.1 cc (37 mm bore x 28 mm stroke), 1.83 cu in. Direction of rotation: counter-clockwise (magneto side). Flywheel: Champion CJ-8 or NGK BM-6A. Fuel: gasoline-oil 20:1 (Echo brand oil or equivalent 2-cycle oil). Fuel tank capacity: 11.8 fl oz (US). Cooling system: air-cooled. Starting system: forced-air recoil starter. Lubrication system: automatic oiler, SAE 30 (summer), SAE 10 (winter). Oil tank capacity: 6.4 fl oz. Transmission: automatic centrifugal clutch. Chain pitch: 3/8". Guide bar: 12 in (30 cm), 0.050" gauge, 47 drive links. Weight: 4.2 kg (dry, without chain or guide bar).

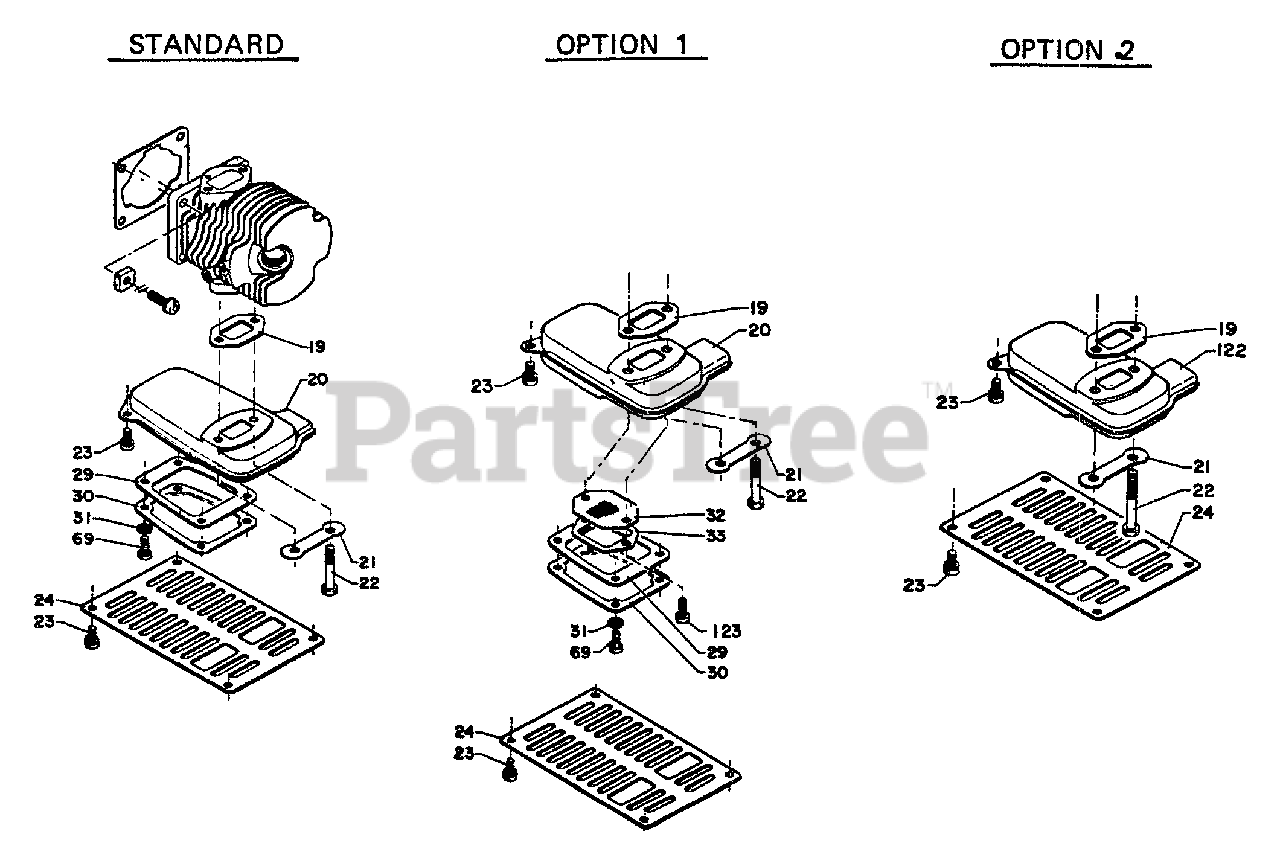

Exhaust Parts Diagram

  • Title

19

Echo 14551011230

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

20

Echo 14580611230

CASE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

122

Echo 14561011230

MUFFLER
(Superseded to Discontinued)

$

$

Not available

21

Echo 14564211230

WASHER
(Superseded to Discontinued)

$

$

Not available

22

Echo 90010005030

BOLT 5×30

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

24

Echo 14562111230

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

29

Echo 14586611230

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

30

Echo 14586111230

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

31

Echo 90061000004

WASHER, LOCK 4 MM

$0.99

$

In Stock, only 1 left!

0

32

Echo 14586211230

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

33

Echo 14586311230

RETAINER, SCREEN
(Superseded to Discontinued)

$

$

Not available

69

Echo 90022004010

SCREW 4×10

$

$

Not available

123

Echo 90022004008

SCREW 4×8

$0.99

$

In Stock, Qty 6

0
