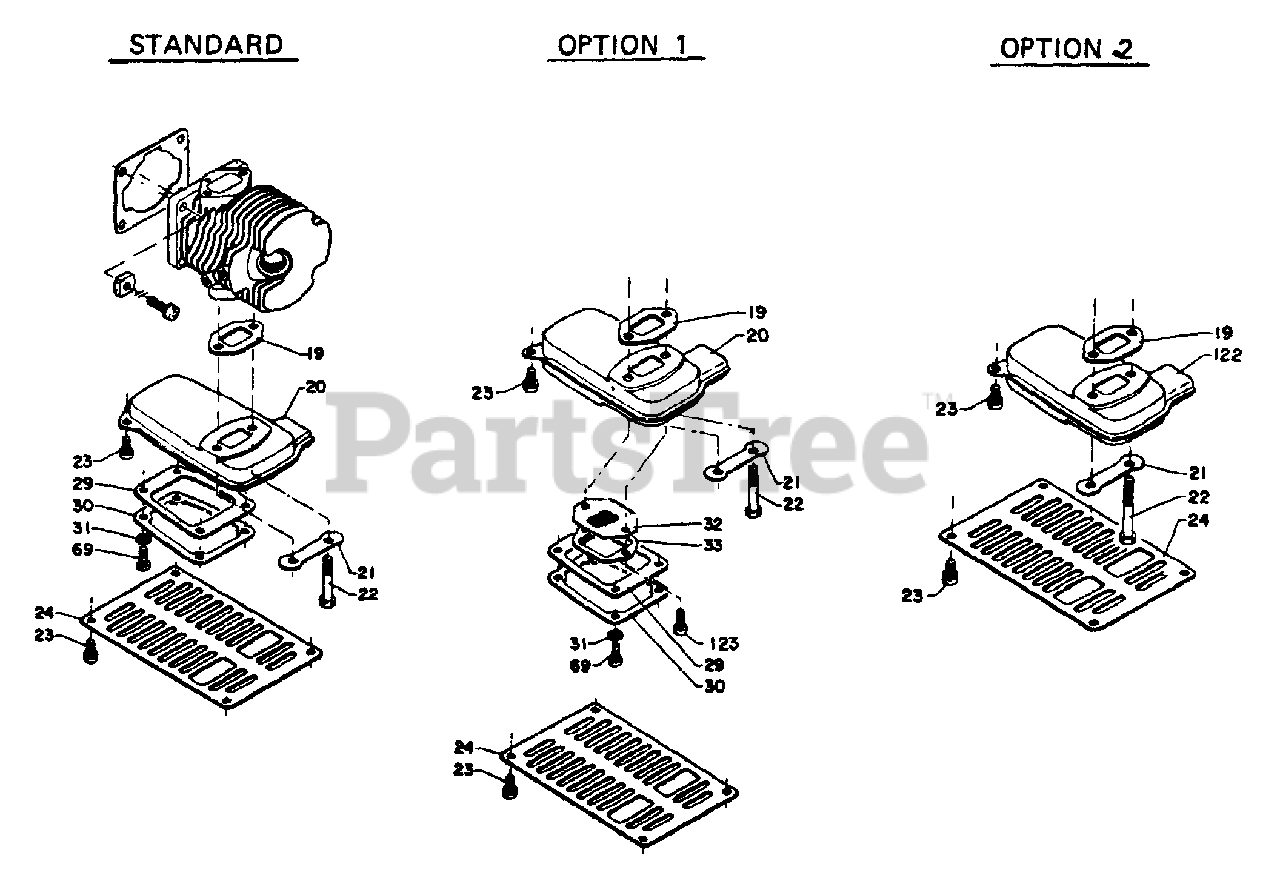

CS-315 - Echo Chainsaw (SN: 058001 - 090010) Exhaust Parts Diagram

Chainsaw

Exhaust Parts Diagram

  • Title

19

Echo 14551011230

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

20

Echo 14580611230

CASE, MUFFLER
(Superseded to Discontinued)

Note: Not used on "Option 2"

$

$

Not available

122

Echo 14561011230

MUFFLER
(Superseded to Discontinued)

Note: Not used on "Standard or Option 1"

$

$

Not available

21

Echo 14564211230

WASHER
(Superseded to Discontinued)

$

$

Not available

22

Echo 90010005030

BOLT - 5X30

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

24

Echo 14562111230

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

29

Echo 14586611230

GASKET, EXHAUST
(Superseded to Discontinued)

Note: Not used on "Option 2"

$

$

Not available

30

Echo 14586111230

GASKET, EXHAUST
(Superseded to Discontinued)

Note: Not used on "Option 2"

$

$

Not available

31

Echo 90061000004

LOCKWASHER - 4

Note: Not used on "Option 2"

$0.99

$

Usually ships in 2-4 days

0

32

Echo 14586211230

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

Note: Not used on "Standard or Option 2"

$

$

Not available

33

Echo 14586311230

RETAINER, SCREEN
(Superseded to Discontinued)

Note: Not used on "Standard or Option 2"

$

$

Not available

69

Echo 90022004010

SCREW - 4X10

Note: Not used on "Option 2"

$0.99

$

Usually ships in 2-4 days

0

123

Echo 90022004008

SCREW 4 X 8

Note: Not used on "Standard or Option 2"

$0.99

$

In Stock, Qty 8

0
