CS-330 EVL - Echo Chainsaw Carburetor, Fuel System, Handles, Intake, Oil Tank, Starter Parts Diagram

Chainsaw

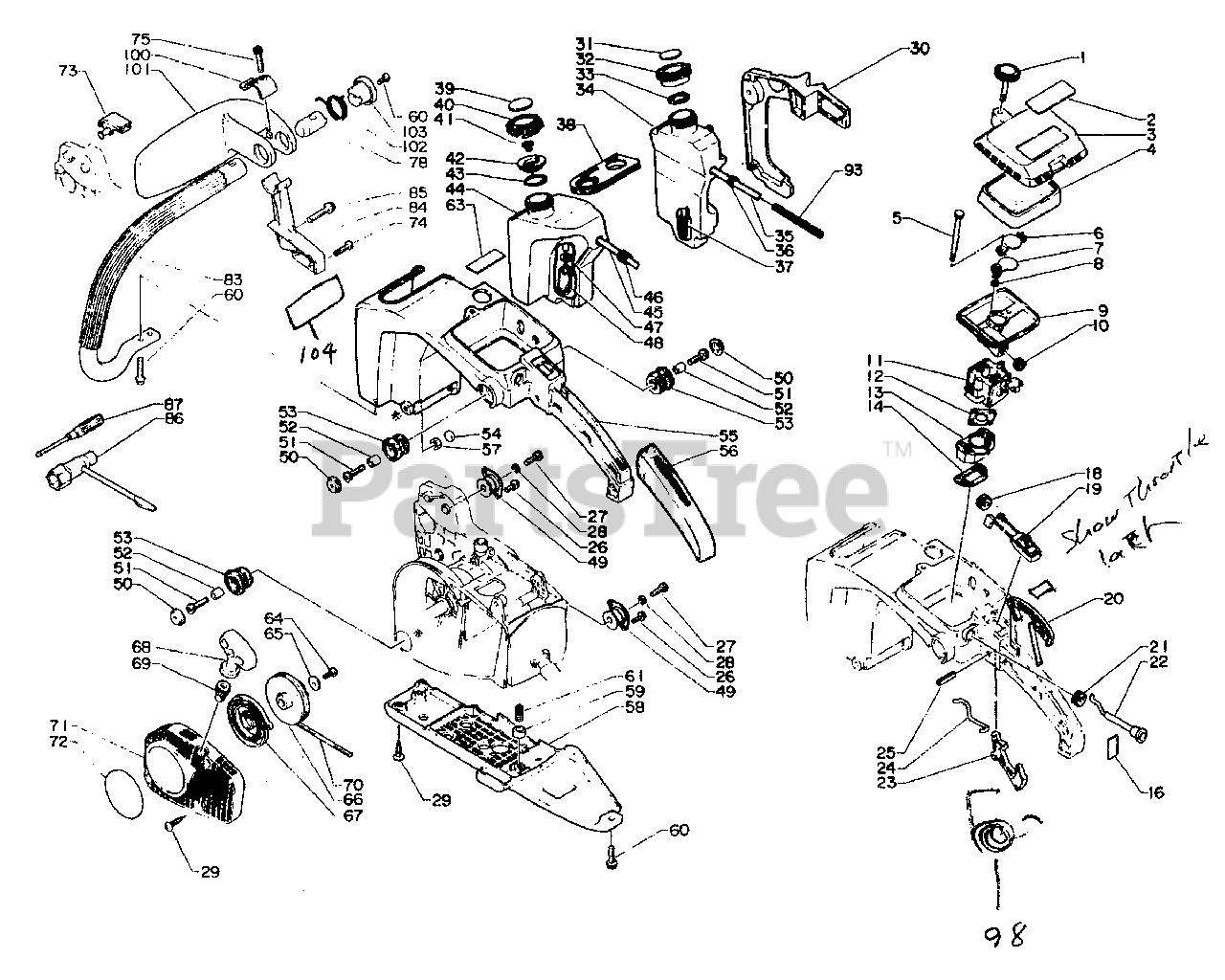

Carburetor, Fuel System, Handles, Intake, Oil Tank, Starter Parts Diagram

  • Title

2

Echo 89015115131

LABEL
(Superseded to 89015115132)

$2.99

$

Usually ships in 2-4 days

0

3

Echo 13030815130

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

1

Echo 13041113830

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

4

Echo 13031015130

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

5

Echo 13002103930

BOLT

$1.49

$

In Stock, Qty 6

0

6

Echo 12901111131

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

7

Echo 17851515130

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

8

Echo 17851615130

SPACER
(Superseded to Discontinued)

$

$

Not available

9

Echo 13031415130

CASE, AIR FILTER
(Superseded to 13031415131)

$

$

Not available

10

Echo 17881002830

GROMMET

$0.99

$

Usually ships in 2-4 days

0

11

Echo 12520015131

CARBURETOR C1S-K3A
(Superseded to 12520015132)

$

$

Not available

12

Echo 13001603930

GASKET, INTAKE
(Superseded to 13001603931)

$0.99

$

In Stock, Qty 18

0

13

Echo 13001703930

INSULATOR, INTAKE
(Superseded to 13001703931)

$

$

Not available

14

Echo 13001003930

GASKET, INTAKE
(Superseded to 13001003931)

$0.99

$

In Stock, Qty 9

0

16

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

18

Echo 15061402910

GROMMET

$0.99

$

In Stock, only 3 left!

0

19

Echo 16340015830

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

20

Echo 17809015130

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 17881115130

GROMMET
(Superseded to Discontinued)

$

$

Not available

22

Echo 17851015130

ROD, CHOKE

$3.49

$

Usually ships in 2-4 days

0

23

Echo 17801015130

TRIGGER, THROTTLE
(Superseded to 17830615131)

$7.99

$

Usually ships in 2-4 days

0

24

Echo 17801115130

ROD, THROTTLE
(Superseded to 17801115131)

$3.49

$

Usually ships in 2-4 days

0

25

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

26

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

27

Echo 90010504012

SCREW - 4X12

$1.49

$

Usually ships in 2-4 days

0

28

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

29

Echo 90024904016

SCREW - 4X16 -- TAPPING
(Superseded to 90025504016)

$0.99

$

In Stock, Qty 10

0

30

Echo 35210515130

SUPPORT

$21.99

$

Usually ships in 2-4 days

0

Echo 43600213630

CAP ASSY
(Superseded to 43600213631)

$

$

Not available

31

Echo 89015311430

LABEL - CHAIN OIL
(Superseded to 89015318030)

$

$

Not available

32

Echo 43600012330

CAP, OIL TANK
(Superseded to 43600112330)

$

$

Not available

33

Echo 43601212330

GASKET, CAP

$0.99

$

In Stock, only 3 left!

0

34

Echo 43601015130

TANK, OIL
(Superseded to Discontinued)

$

$

Not available

35

Echo 43720515130

PIPE - OIL

$4.99

$

Usually ships in 2-4 days

0

36

Echo 13211511130

GROMMET
(Superseded to 13211511131)

$2.49

$

In Stock, Qty 20+

0

37

Echo 43620512330

FILTER, OIL
(Superseded to 43620514730)

$8.99

$

In Stock, only 4 left!

0

38

Echo 13103815130

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

Echo 13160012331

CAP ASSY
(Superseded to 13160014531)

$

$

Not available

39

Echo 89015415130

LABEL - FUEL MIX

$1.49

$

In Stock, only 1 left!

0

40

Echo 13101712330

CAP
(Superseded to Discontinued)

$

$

Not available

41

Echo 13231400330

VENT
(Superseded to 13131400330)

$11.99

$

In Stock, Qty 5

0

42

Echo 13101512330

HOLDER, VENT
(Superseded to 13101514531)

$3.49

$

Usually ships in 2-4 days

0

43

Echo 90072000022

O-RING - 22

$1.99

$

In Stock, Qty 15

0

44

Echo 13101015130

TANK, FUEL
(Superseded to 13101015131)

$

$

Not available

45

Echo 43720512330

OIL PIPE KIT
(Superseded to Discontinued)

$

$

Not available

46

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

47

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

48

Echo 13120500830

FILTER, FUEL
(Superseded to 13120514930)

$8.99

$

In Stock, Qty 20+

0

49

Echo 10092115130

CUSHION
(Superseded to 10092115830)

$8.49

$

In Stock, only 2 left!

0

50

Echo 10091815130

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

51

Echo 90010504020

SCREW - 4X20

$1.49

$

In Stock, only 1 left!

0

52

Echo 10091515131

COLLAR

$3.49

$

Usually ships in 2-4 days

0

53

Echo 10091015131

CUSHION
(Superseded to 10091018830)

$8.49

$

In Stock, Qty 18

0

54

Echo 35114115130

SPACER
(Superseded to Discontinued)

$

$

Not available

55

Echo 35190515130

HANDLE - REAR
(Superseded to 35190515830)

$

$

Not available

56

Echo 35111115130

GRIP
(Superseded to Discontinued)

$

$

Not available

57

Echo 90050800004

NUT - 4
(Superseded to Discontinued)

$

$

Not available

58

Echo 35101115130

SUPPORT
(Superseded to 35101115131)

$

$

Not available

59

Echo 10025115130

BUSHING
(Superseded to 10025156630)

$0.99

$

In Stock, Qty 20+

0

60

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 17

0

61

Echo 43314611130

SPRING
(Superseded to Discontinued)

$

$

Not available

63

Echo 89017613031

LABEL - NOISE

$2.99

$

Usually ships in 2-4 days

0

Echo 17720015130

STARTER ASSY
(Superseded to 17720015131)

$

$

Not available

64

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

65

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 10

0

66

Echo 17721515132

REEL, ROPE
(Superseded to 17721515133)

$8.49

$

Usually ships in 2-4 days

0

67

Echo 17722006530

SPRING, REWIND

$13.99

$

In Stock, Qty 18

0

68

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

69

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

70

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$6.49

$

In Stock, Qty 20+

0

71

Echo 17720915130

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

72

Echo 89001211133

LABEL - ECHO
(Superseded to 89011217831)

$6.49

$

In Stock, Qty 10

0

73

Echo 10061212332

COVER
(Superseded to Discontinued)

$

$

Not available

74

Echo 90024904020

SCREW - 4X20 -- TAPPING
(Superseded to 90024904022)

$0.99

$

Usually ships in 2-4 days

0

75

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

83

Echo 35120515130

HANDLE - FRONT

$54.99

$

Usually ships in 2-4 days

0

78

Echo 35161710230

SPACER

$3.99

$

In Stock, only 1 left!

0

84

Echo 35121715130

SUPPORT
(Superseded to Discontinued)

$

$

Not available

85

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

86

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0

87

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 4 left!

0

93

Echo 43741215130

SPRING

$1.49

$

Usually ships in 2-4 days

0

98

Echo 17804315130

SPRING, TRIGGER

$2.49

$

In Stock, Qty 9

0

100

Echo 35184015130

STOPPER

$3.49

$

Usually ships in 2-4 days

0

101

Echo 35182614330

GUARD
(Superseded to Discontinued)

$

$

Not available

102

Echo 35183615130

SPRING

$2.49

$

Usually ships in 2-4 days

0

103

Echo 35183315130

RETAINER

$4.49

$

Usually ships in 2-4 days

0

104

Echo 89019130130

LABEL - KICK BACK
(Superseded to 89019130131)

$3.99

$

Usually ships in 2-4 days

0
