CS-330 MX 4 - Echo Chainsaw (SN: C04312001001 - C04312999999) Chain Brake Parts Diagram

Model CS-330MX4 - 277 x 247 x 214 mm (10.9x9.7x8.4 in); 3.6 kg dry. Air-cooled, 2-stroke, 1-cyl, 32.6 cc (1.989 cu in). Diaphragm carb, CDI magneto ignition, NGK BPM-8Y plug, 0.065 mm gap. Recoil starter, centrifugal clutch. Fuel 50:1 Echo Power Blend 2-stroke oil, 89 octane. Fuel tank 310 ml, oil tank 290 ml. 14-in guide bar (12/16 in optional). Idle 2,400-2,800 rpm, clutch 4,300, WOT 13,000-14,000. EPA 2010 Tier III, 3-way catalyst, evaporative control. Features: top handle, front guard, anti-vibration, throttle lockout, chain catcher, spark arrestor.Engine family: 7EXHS.0334KB .

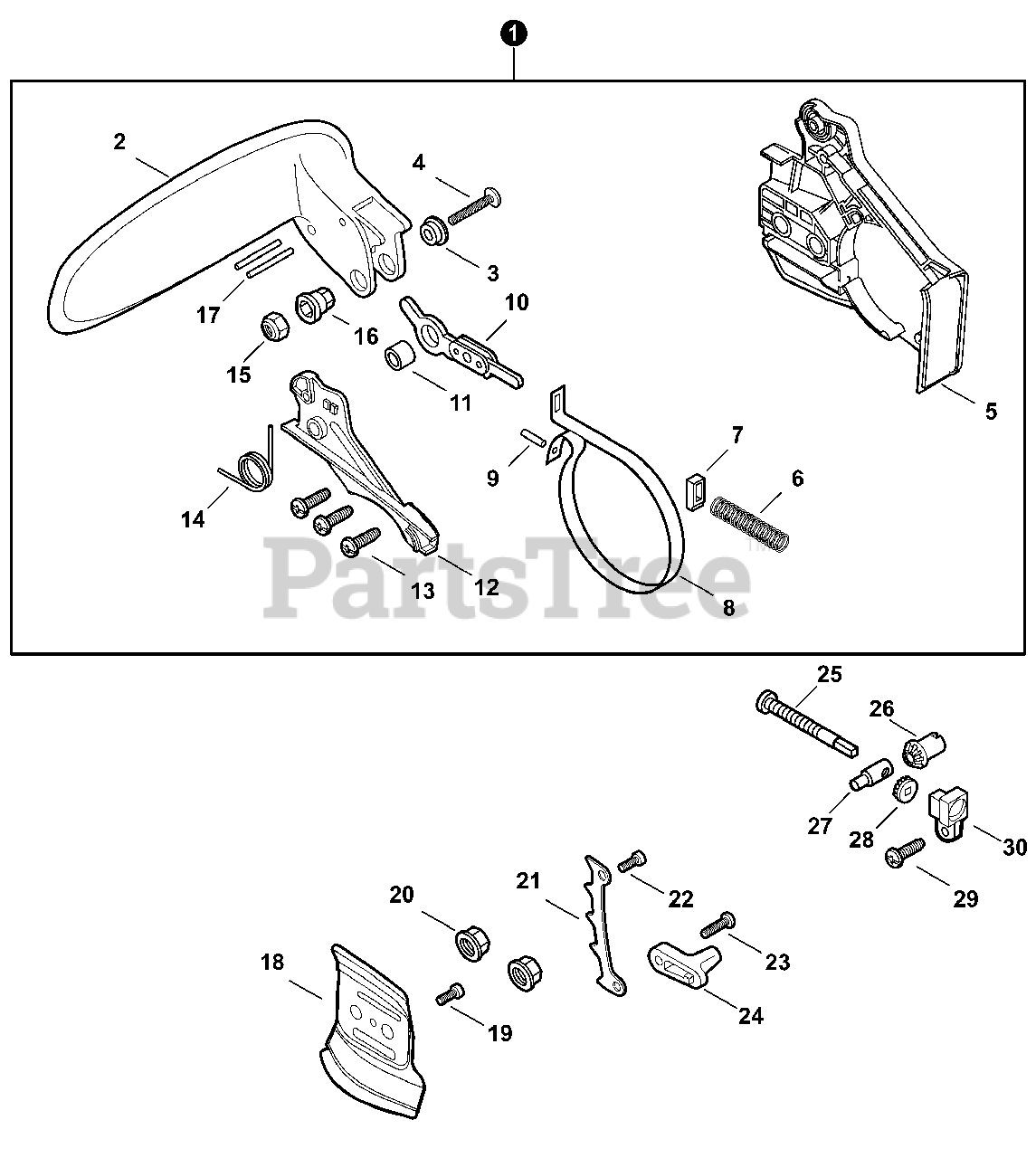

Chain Brake Parts Diagram

  • Title

1

Echo C032000340

BRAKE ASSY, CHAIN

Note: Includes Items 2-17

$88.99

$

Usually ships in 2-4 days

0

2

Echo C320000090

LEVER, BRAKE - ORANGE

$21.99

$

Usually ships in 2-4 days

0

3

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, Qty 20+

0

4

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, Qty 16

0

5

Echo C300000370

GUARD, SPROCKET

$33.99

$

Usually ships in 2-4 days

0

6

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, Qty 20+

0

7

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

8

Echo C328000030

BAND, BRAKE

$7.99

$

In Stock, Qty 12

0

9

Echo 9305030098

PIN, SPRING 3x-9.8

$0.99

$

In Stock, Qty 20+

0

10

Echo C334-000070

CONNECTOR, BRAKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, Qty 15

0

12

Echo C345000250

COVER, BRAKE

$11.99

$

Usually ships in 2-4 days

0

13

Echo 90025304012

SCREW 4×12

$1.49

$

Usually ships in 2-4 days

0

14

Echo V452000110

SPRING, TORSION

$1.49

$

In Stock, Qty 6

0

15

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

16

Echo V353000060

COLLAR 5

$2.49

$

In Stock, Qty 10

0

17

Echo 90033030260

PIN 3×26

$0.99

$

In Stock, Qty 20+

0

18

Echo C305000080

PLATE, GUIDE - INNER

$7.99

$

In Stock, only 2 left!

0

19

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

20

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

21

Echo C304000000

SPIKE, BUMPER

$5.49

$

In Stock, Qty 12

0

22

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

23

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

24

Echo 43302635430

CHAIN CATCHER

$2.49

$

In Stock, only 2 left!

0

25

Echo V203000041

BOLT 5

$6.99

$

In Stock, Qty 20+

0

26

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

27

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

28

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

29

Echo 90025304012

SCREW 4×12

$1.49

$

Usually ships in 2-4 days

0

30

Echo V355000140

COLLAR 8

$1.49

$

In Stock, Qty 20+

0
