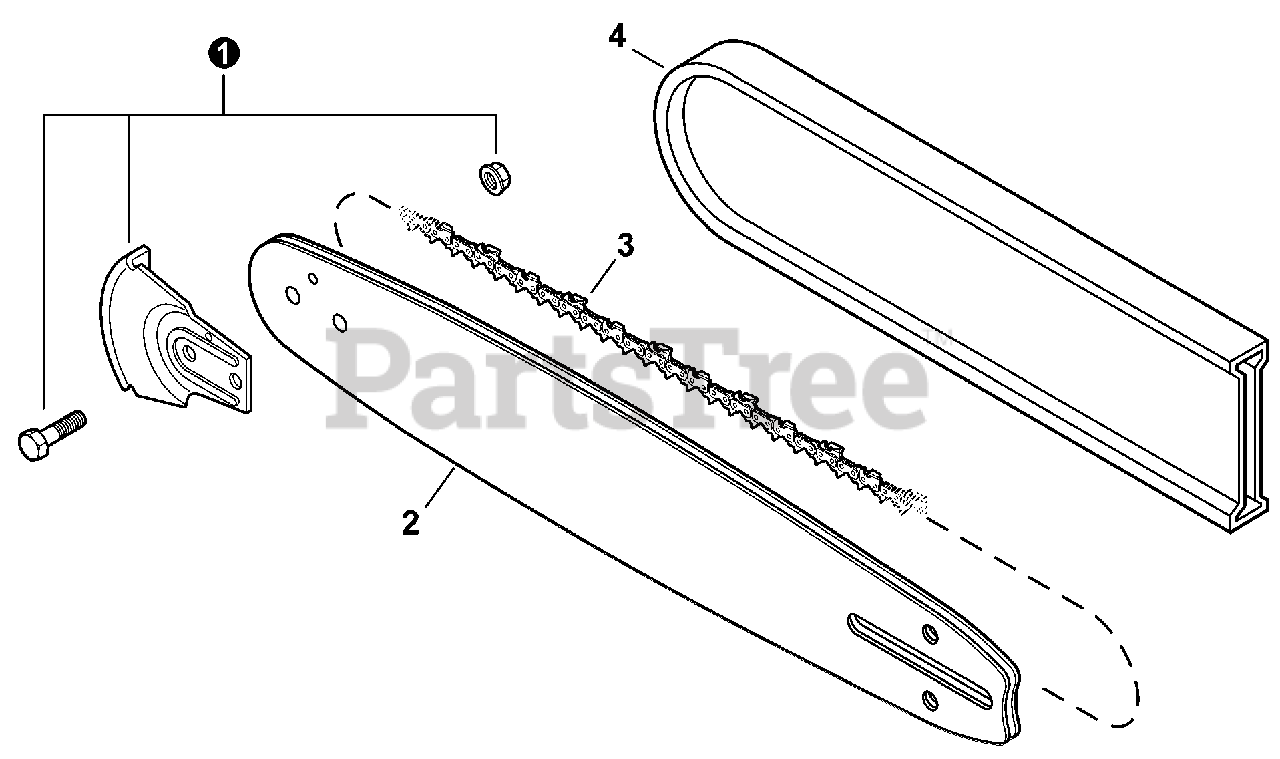

CS-330 T - Echo Chainsaw (SN: C04212001001 - C04212999999) Chain, Guide Bar Parts Diagram

Model CS-330T Dimensions: 10.9 x 9.7 x 8.4 in (277 x 247 x 214 mm) Weight (dry, no chain/guide bar): 3.6 kg (7.9 lb) Displacement: 32.6 cc (1.989 cu in) Engine: air-cooled, 2-stroke, single-cylinder, 50:1 centrifugal clutch Ignition: NGK BPM-8Y 310 CDI Starter: recoil, automatic clutch, Echo Power Blend(TM) Mixture ratio: 2 400-2 800:1 (air/fuel) Idle rpm: 2 400-2 800; WOT rpm: 13 000-14 000 Fuel tank: 310 ml (10.5 fl oz) Oil tank: 290 ml (9.8 fl oz) - auto-pump, adjustable Guide bar: standard 14 in. or 16 in.; optional 12 in. Chain: optional 12, 14, 16 in. Features: front hand guard, anti-vibration, chain brake lever, catalytic muffler. Engine family: 6exhs.0334kb.
