CS-330 T - Echo Chainsaw (SN: C04212001001 - C04212999999) Fuel System S/N C04212001001 - C04212040500 Parts Diagram

Model CS-330T Dimensions: 10.9 x 9.7 x 8.4 in (277 x 247 x 214 mm) Weight (dry, no chain/guide bar): 3.6 kg (7.9 lb) Displacement: 32.6 cc (1.989 cu in) Engine: air-cooled, 2-stroke, single-cylinder, 50:1 centrifugal clutch Ignition: NGK BPM-8Y 310 CDI Starter: recoil, automatic clutch, Echo Power Blend(TM) Mixture ratio: 2 400-2 800:1 (air/fuel) Idle rpm: 2 400-2 800; WOT rpm: 13 000-14 000 Fuel tank: 310 ml (10.5 fl oz) Oil tank: 290 ml (9.8 fl oz) - auto-pump, adjustable Guide bar: standard 14 in. or 16 in.; optional 12 in. Chain: optional 12, 14, 16 in. Features: front hand guard, anti-vibration, chain brake lever, catalytic muffler. Engine family: 6exhs.0334kb.

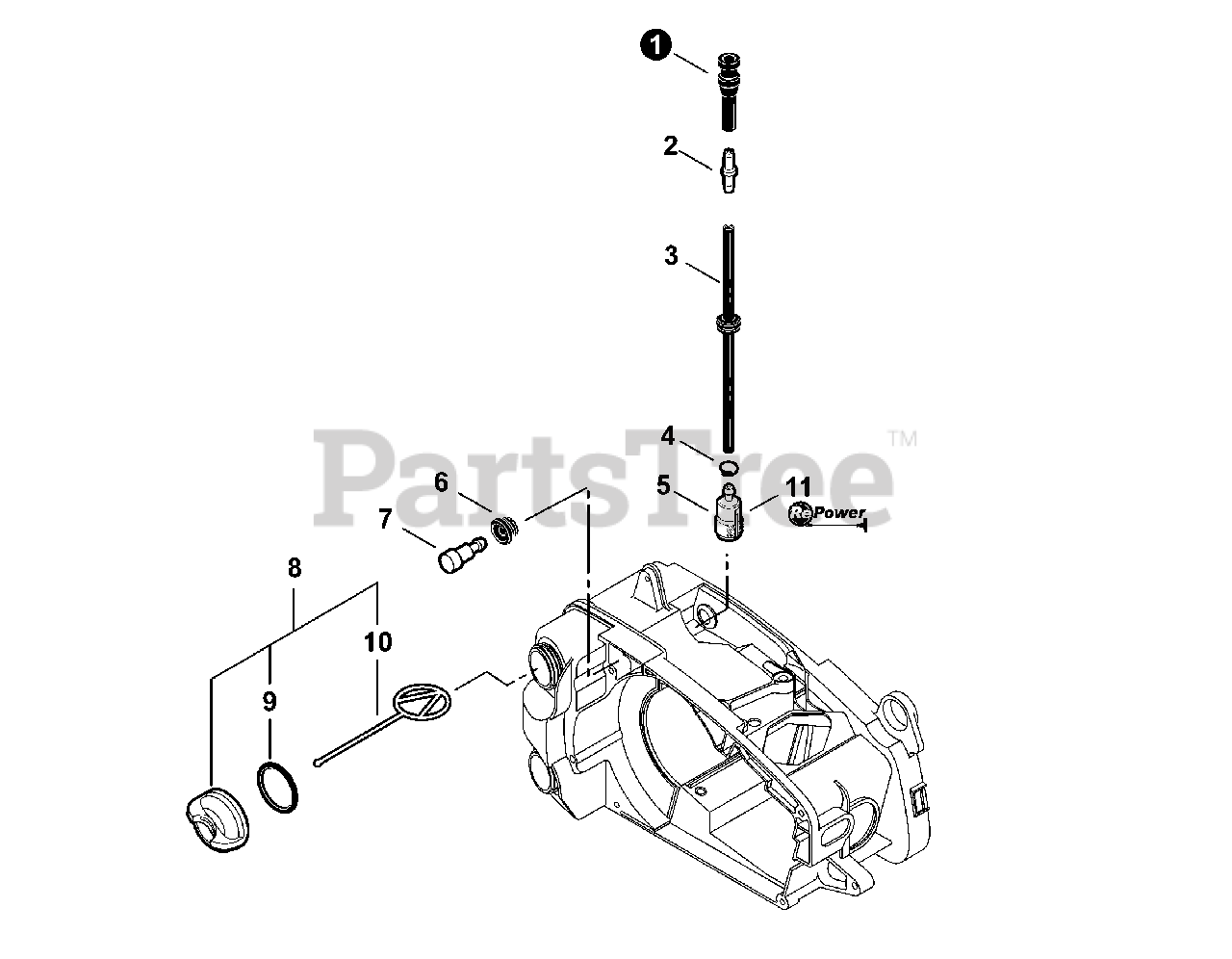

Fuel System S/N C04212001001 - C04212040500 Parts Diagram

  • Title

1

Echo V470000691

PIPE, FUEL

$3.49

$

In Stock, Qty 11

0

2

Echo V186000020

CONNECTOR, PIPE
(Superseded to V186000510)

$1.99

$

In Stock, Qty 20+

0

3

Echo V470000711

PIPE ASSY, FUEL

$11.99

$

In Stock, Qty 12

0

4

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo 13120514931

FILTER, FUEL
(Superseded to A369000470)

Note: Included In RePower KIT

$9.99

$

In Stock, Qty 20+

0

6

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.99

$

In Stock, Qty 20+

0

7

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

8

Echo P021005591

CAP ASSY
(Superseded to P021005592)

Note: Includes Items 9-10

$4.99

$

In Stock, Qty 20+

0

9

Echo 90072000018

O-RING 18

$2.49

$

In Stock, Qty 20+

0

10

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

11

Echo 90159

TUNE-UP KIT - REPOWER
(Superseded to 90159Y)

Note: See RePower Maintenance

$

$

Not available
